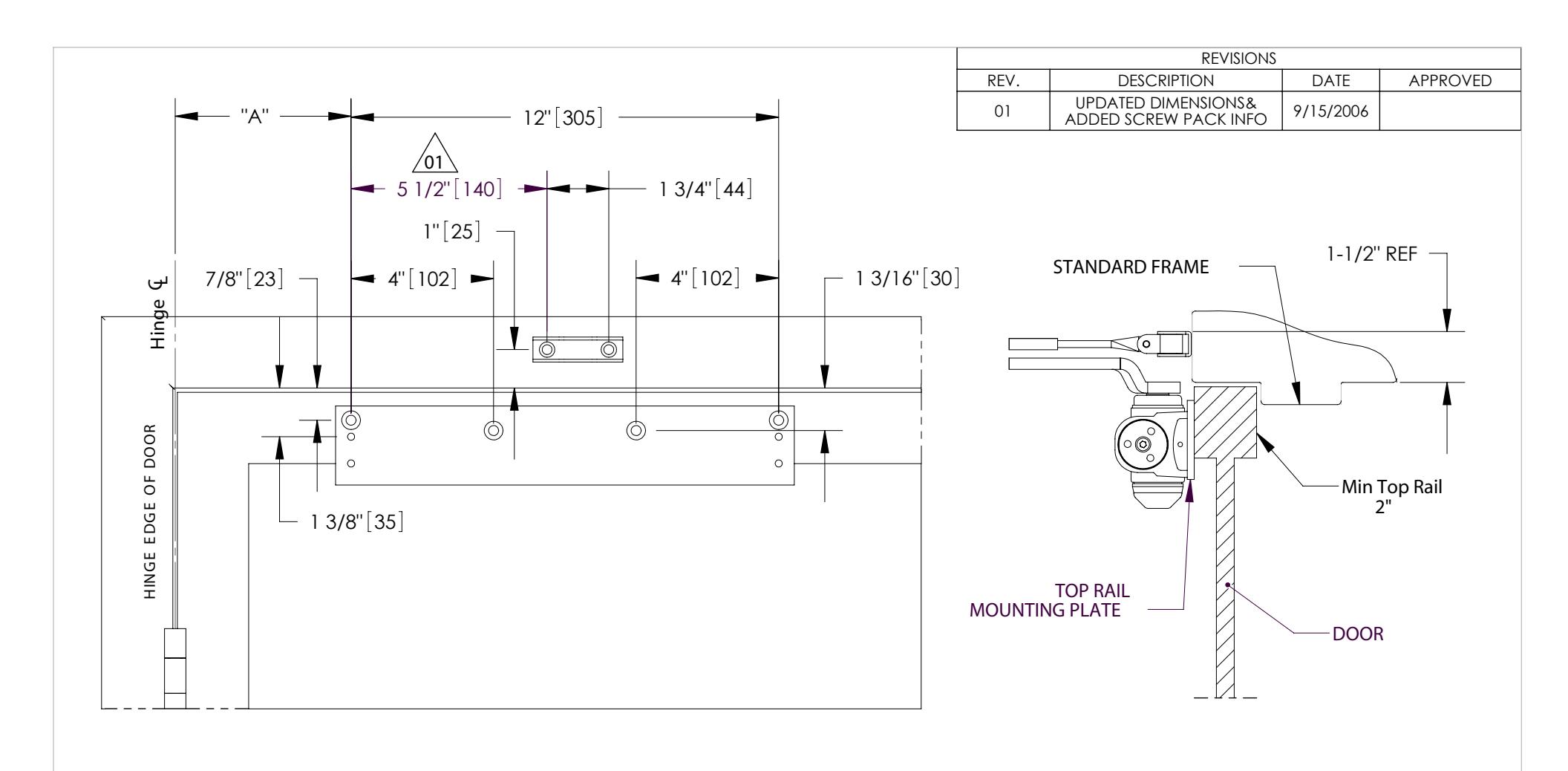

5918 Narrow Top Rail-RA Mounting Plate Template T-CL00010-Rev01

Opening	Dimension "A"
To 100 °	7-1/2" (191mm)
100 ° to 130 °	6" (152mm)
over 130 °	4-1/2" (114mm)

RIGHT HAND DOOR SHOWN, LEFT HAND OPPOSITE.

DRAWN

T Sveitis

SCREW PACK INCLUDES: 4PCS. 1/4-14 X 1-1/2" SELF TAPPING FLAT HEAD WOOD SCREW 4PCS. 1/4-20 X 1-1/2" SELF TAPPING MACHINE SCREW 4PCS. 1/4-20 X 7/16" FLAT HEAD MACHINE SCREW

HAGER RESERVES THE RIGHT TO MAKE DESIGN CHANGES WITHOUT NOTICE. CALL HAGER ENGINEERING AT 1-800-325-9995 FOR THE LATEST REVISION DATE OF TEMPLATE.

PRIMARY DIMENSIONS SHOWN IN INCHES, DIMENSIONS IN [] ARE MILLIMETERS.

	ENG. APPR.	MAM	09/25/06
MATERIAL	Q.A.
FINISH	TOLERANCES: FRACTIONAL: ±0.015" ANGULAR: MACH: ±1° BEND: ±1° TWO PLACE DECIMAL: ±0.01" THREE PLACE DECIMAL: ±0.004"
DO NOT SCALE DRAWING

1/16/06 5918 Narrow Top Rail/RA 09/25/06 Mounting Plate Template

SIZE DWG. NO. T-CL00010 Α SHEET 1 OF 1 SCALE:1:4 WEIGHT:

REV.
