5900 SERIES POWER SUPPLY/CHARGERS

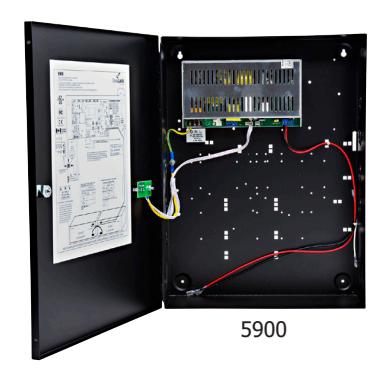

- Selectable 12/24VDC Output at 6A Continuous

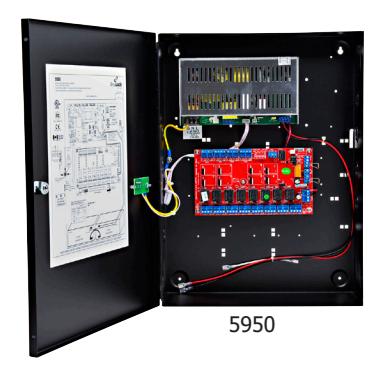

- 8-zone power distribution board with 2A fused Class 2 outputs (5950)
- Supervised Fire Alarm/Access Control Interface (5950)
bottom tamper.
- Optional 12 AH battery back-up capacity
- AC Fail, Battery Presence/Fail Supervison
- Key-locked, hinged cover metal enclosure 13.3"W x 17.6"H x 4.3"D
| MODEL | PRODUCT | WEIGHT |
|---|---|---|
| 5900 | Power Supply/Charger, 12/24VDC @ 6A | 10 Lbs. |
| 5950 |
Power Supply/Charger, 12/24VDC @ 6A,
with 8-zone distribution controller, 2A fused Class 2 lock outputs & supervised fire alarm/access control interface. |
10 Lbs. |
| OPTIONS | ||
|---|---|---|
|
BBU1-12
BBU2-12 PC |
Battery Back-up - 12 AH @ 12VDC, 1 battery.
Battery Back-up - 12 AH @ 24VDC, 2 batteries. Power Cord - Six foot, grounded line cord with |
8.5 Lbs.
17 Lbs. 0.7 Lbs |
|
TS1
TS2 |
NEMA 5-15P plug end.
Single Tamper Switch - Monitors enclosure lid. Dual Tamper Switches - Monitor lid & enclosure |
0.2 Lbs.
0.3 Lbs. |
ACCESSORIES
500259 Interlock Logic Board. Accessory Controller board 0.4 Lbs.
with 4 independently triggerable 12/24VDC DPDT relays. Facilitates interlock sequencing of 2 to 3 magnetically locked doors. Self-adhesive tape mount. Consult factory for required system components based on desired interlock operation.
Power Supply Maximum Lock Capacity Chart
|
OUTPUT
VOLTAGE |
MAX | LOCKING DEVICE | |||||
|---|---|---|---|---|---|---|---|
| LOAD | 1300 | 2511 | 2011/3000 | 2268-10 | 3006 | 3101C | |
| 12VDC | 6A | 6 | 15 | 15 | 10 | 13 | 12 |
| 24VDC | 6A | 12 | 28 | 28 | 17 | 22 | 22 |
