551 Template T0551-Rev02
Open the original PDF document
View PDF

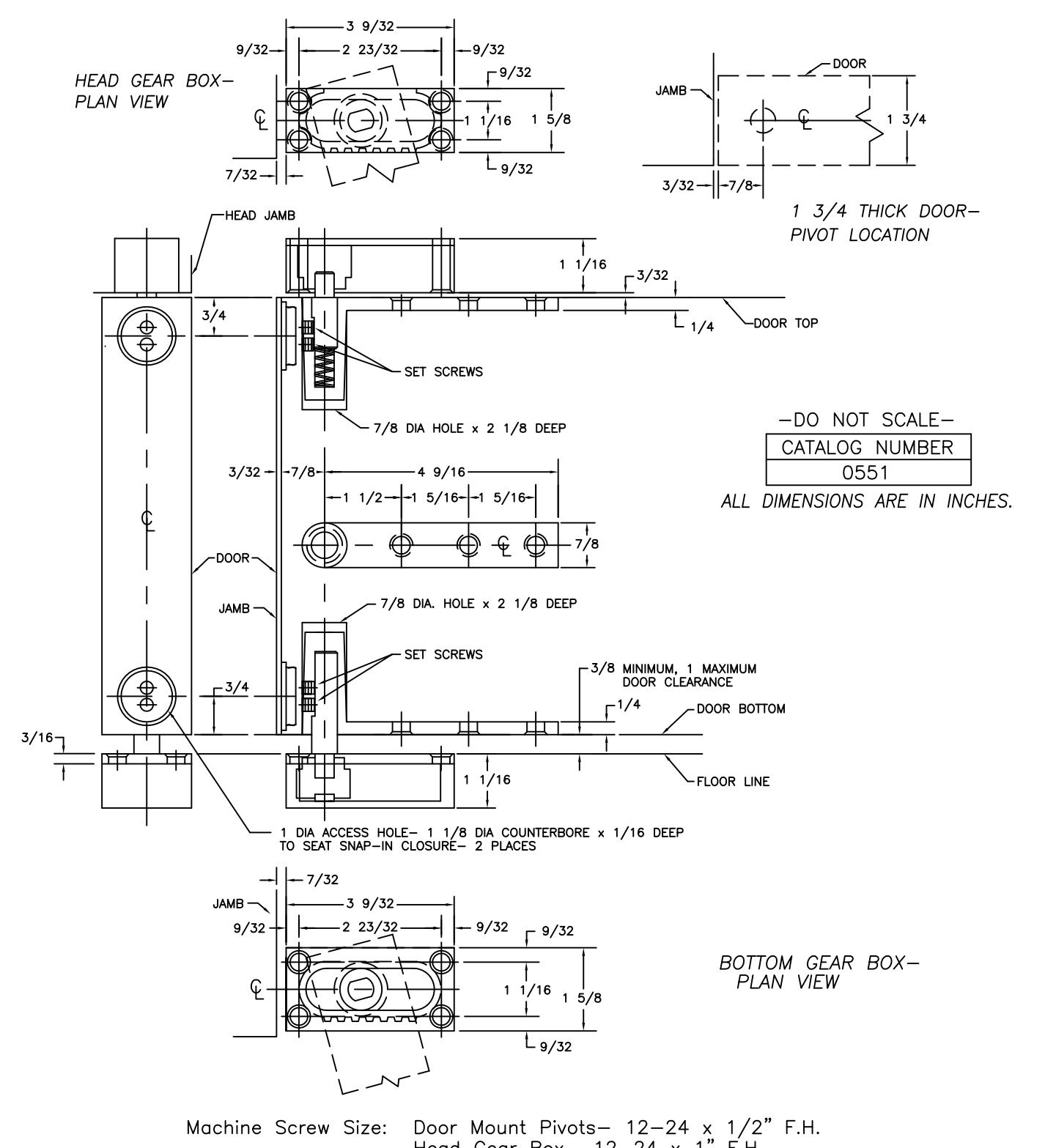

Head Gear Box- 12-24 x 1" F.H.
Wood Screw Size for door mount pivots and gear boxes—No. 12 x 1 1/4" F.H. Plastic cinch anchors furnished for masonry floors.
| HAGER COMPANIES | Γ |
| 139 Victor Street | L |
| St. Louis, MO 63104 | |
| 1-800-325-9995 | |
| HAGER | RE | SERVE | ES ' | THE | RIGHT | ТО | MAKE |
|---|---|---|---|---|---|---|---|
| DESI | GN | CHAN | IGES | S WI | THOUT | NO | TICE |
| DESCRIPTION |
|---|
TEMPLATE
| NO. | REVISION | BY | DATE | PART NO. |
|---|---|---|---|---|
| 2 | ECO CT08029 | SLJ | 09.26.08 |
T - 0551
