UniFLEX™ Spec - Application Specific Faceplates Included

Lock Compatibility: To determine compatibility of locksets not listed below.

UniFLEX Spec models include strike and faceplate for individual job requirements. Recommend for specifiers and industry professionals for fast and easy specification of individual installation requirements.

Model	Lockset	Application	Compatible Locks	Operation
55-A		• Cylindrical locksets • Locksets with ANSI centerline latch entry lockset with up to 3/4" latchbolt	• All cylindrical locksets with 1/2" to 5/8" latchbolts IDC - See M7200 Datasheet • Locksets with ANSI centerline latch entry with up to 3/4" latchbolt	After releasing the latchbolt, the keep er returns to the locked position.
55-B		• Mortise locksets and mortise exit devices with or without a deadlatch located below the latchbolt.	• Accurate • Falcon • Arrow • Marks • Best • Sargent • Corbin Russwin • Yale • Dorma	After releasing the latchbolt, the keep er returns to the locked position.
55-C		• Mortise locksets and mortise exit devices with or without a deadlatch located above the latchbolt.	• Schlage • IDC - See M7800 Datasheet • Baldwin • Hager	After releasing the latchbolt, the keep er returns to the locked position.
55-D		• Mortise locksets with a deadbolt and a deadlatch located below the latchbolt. • With deadbolt retainer installed, access control will not release projected deadbolt. • With deadbolt retainer removed, access control will release deadbolt. The door will not close when deadbolt is projected.	• Accurate • Falcon • Arrow • Marks • Best • Sargent • Corbin Russwin • Yale • Dorma	Deadbolt Retracted: When signaled by the access control the strike keeper unlocks, permitting door latch release. The strike keeper returns to the closed and locked position. The door then returns to the closed and locked position. Deadbolt Retainer Installed
55-E		• Mortise lockset with a deadbolt. • With deadbolt retainer installed, access control will not release projected deadbolt. • With deadbolt retainer removed, access control will release deadbolt. The door will not close when deadbolt is projected.	• Baldwin	Night-Latch/Access Control Lockout: When the deadbolt is projected the strike will not release by access control. Deadbolt Retainer Removed Night-Latch: When the deadbolt is projected, the strike keeper unlocks, permitting door latch and deadbolt release by the access control. The
55-F		• Mortise locksets with a deadbolt and a deadlatch located above the latchbolt. • With deadbolt retainer installed, access control will not release projected deadbolt. • With deadbolt retainer removed, access control will release deadbolt. The door will not close when deadbolt is projected.	• Schlage • IDC - See M7800 Datasheet • Hager	strike keeper returns to the closed and locked position. The door will not close and lock when the deadbolt is extended and must be manually retracted to permit door closure.

UniFLEX ™ : 55-ABC

UniFLEX ™ Spec: 55-A 55-D

55-B 55-E 55-C 55-F

Finish

630 Stainless Steel (std)

606 Dull Brass

612 Dull Bronze

613 Oil Rubbed Bronze

625 Bright Chrome

626 Dull Chrome

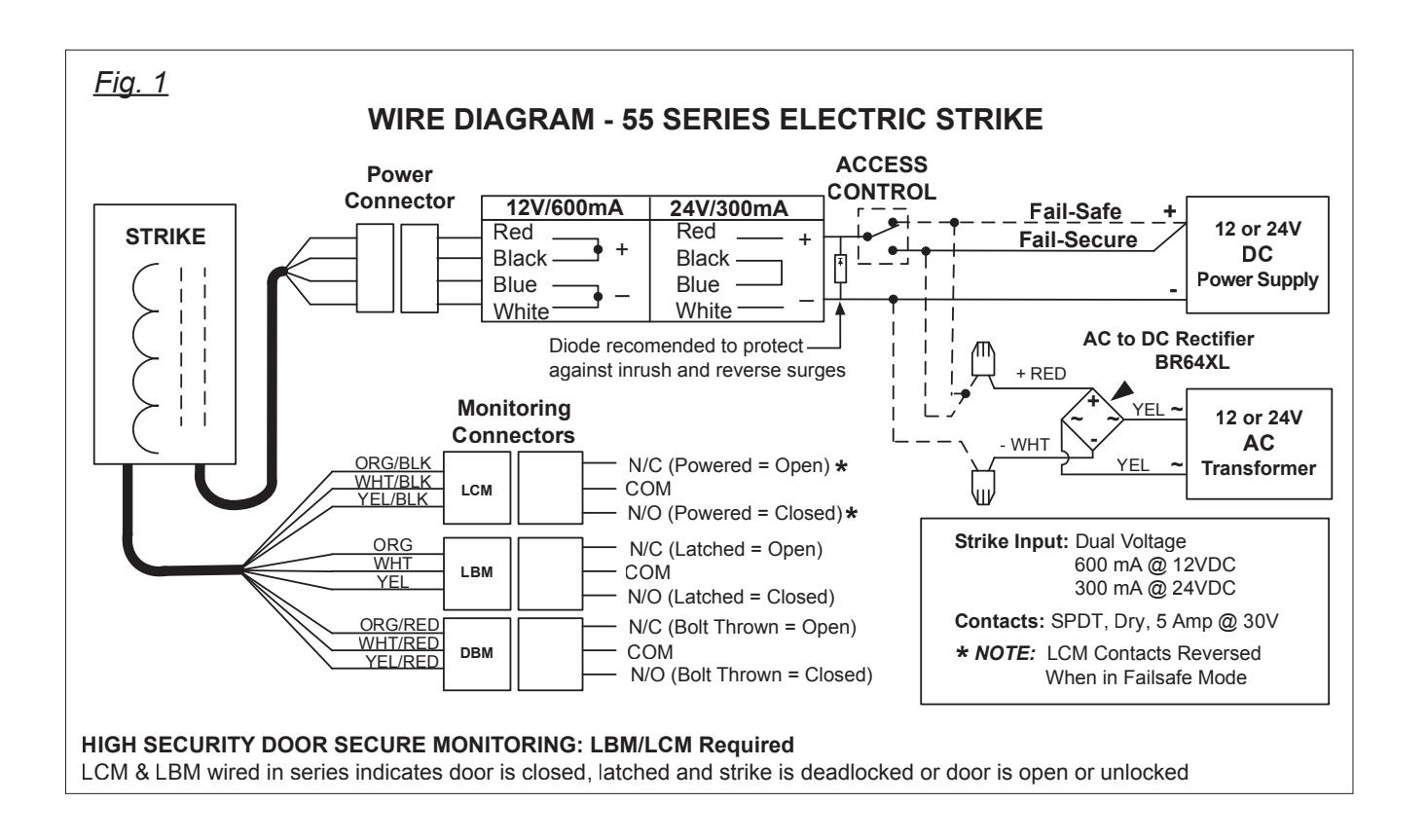

Monitoring

All strikes less monitoring are non-handed

A, B, C with monitoring are non-handed

D, E, F with monitoring are handed L - Left hand R - Right hand Example: 55-DU x LBM/LCM-L

LBM Latchbolt Monitor

Signals the door is closed and latched or unlatched and open.

Applications

• Door prop open monitoring
• Airlock and Interlock logic
• Access control door ajar input
• Access control anti-tailgate input

LBM/LCM Door Secure Monitor Signals door is closed latched and the keeper is deadlocked. Also signals the door is unlatched or unlocked.

Applications

• Door secure and unlocked monitoring
• Mantraps

LBM/LCM/DBM Deadbolt and Door Secure D, E & F functions only.

DBM signals deadbolt projected or retracted.

LBM/LCM signals the door is latched and the keeper is deadlocked, whether the deadbolt is extended or retracted. Also signals the door is unlatched and unlocked when deadbolt is retracted.

Applications

• Deadbolt night latch monitoring
• Access control lockout monitoring
• Door secure and unlocked monitoring
• Mantraps

Model UniFLEX™ Pro Stocking System Monitoring Configurations

Universal Application Open Stock For Stocking Installers & Distributors

Enables order fulfillment for multiple applications while reducing stocking requirements and limitations of application specific electric strikes.

How Universal Application Open Stock Works

• 1. Stock UniFLEX ™ 55 series strike bodies and different application faceplates separately.
• 2. For order fulfillment, package application faceplate with model 55 strike per order specification.

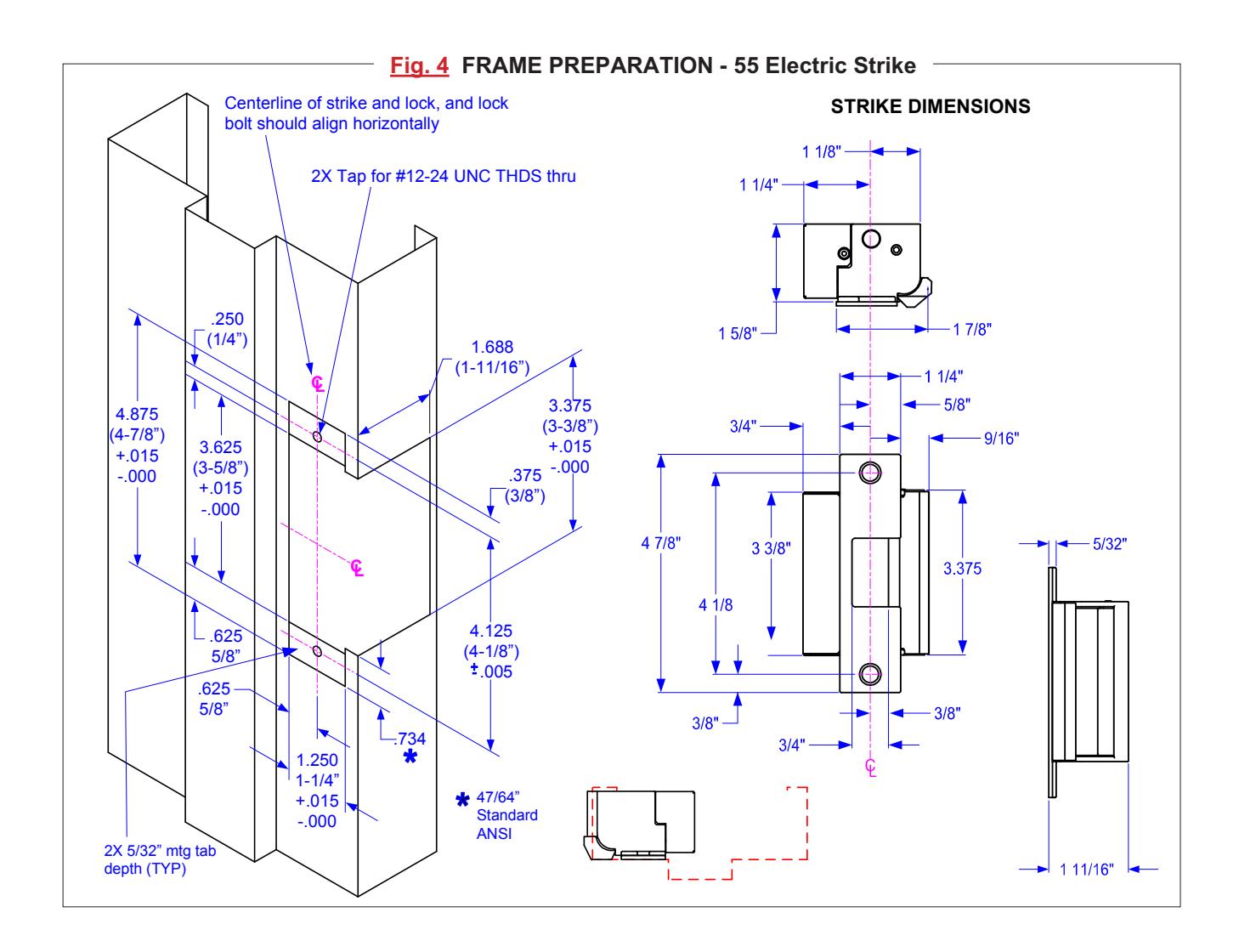

UniFLEX™ Pro Strike Body

Indicate quantity and monitoring required.

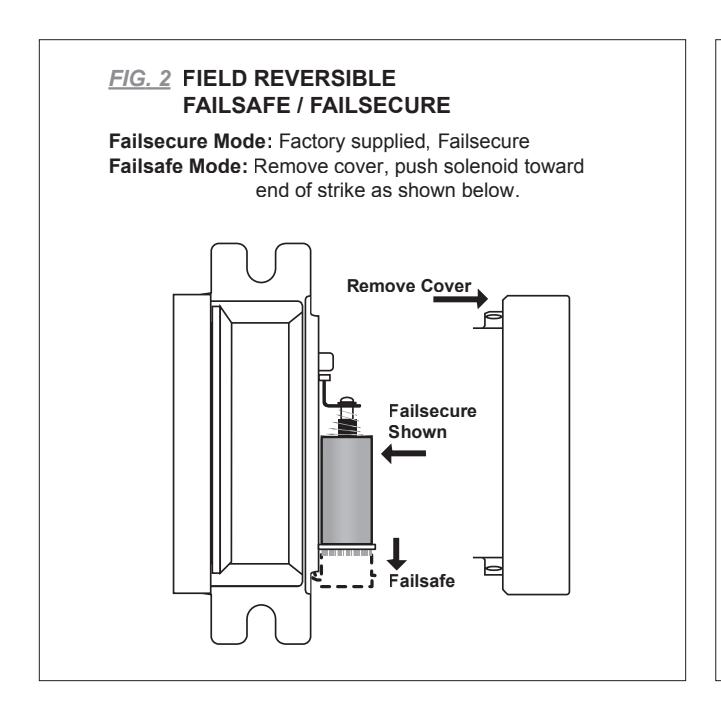

55 Electric strike body, 12/24VDC

Monitoring Options See ordering info on left

LBM LBM/LCM LBM/LCM/DBM

Example: 15 ea. 55; 5 ea. 55-LBM

Accessories

RMB Plug-In Buzzer, 12/24V

55-A, 55-B, 55-C: LBM, LBM/LCM

55-D, 55-E, 55-F: LBM, LBM/LCM

LBM/LCM/DBM

A B or C

Indicates strike is energized

LT Tri-Color LED, red or green or

D or E F

amber. Indicates strike energized per field wiring

BR64XL Rectifier with Wire Leads

Converts AC to DC

Accessorie Faceplates

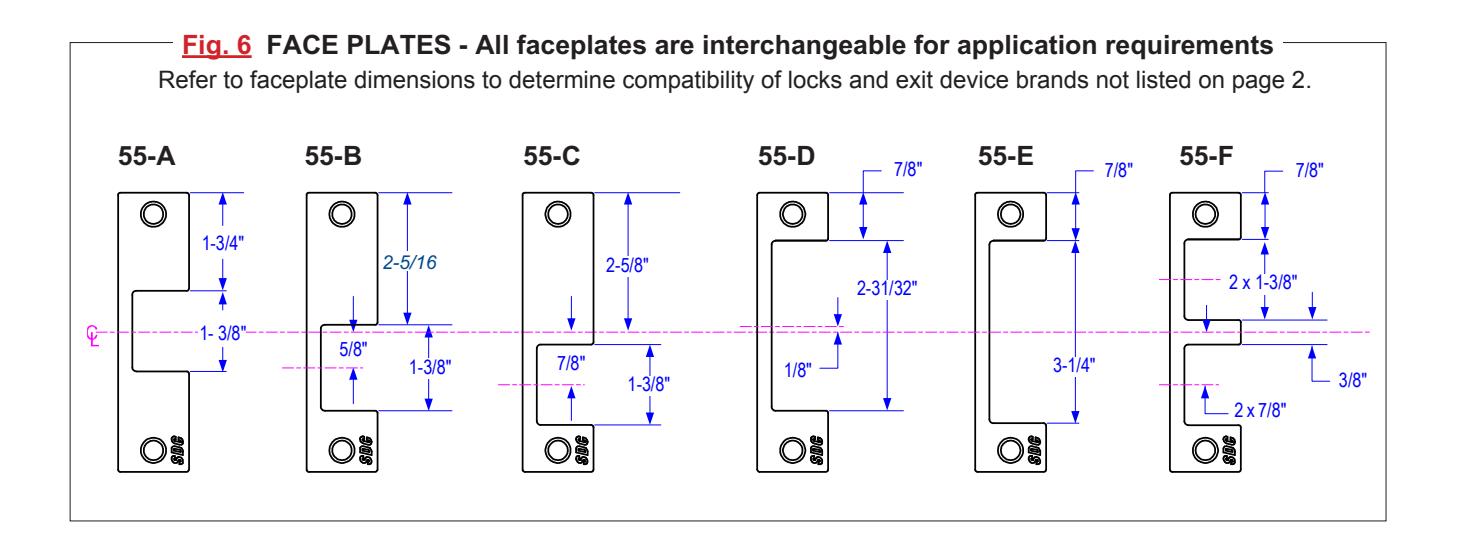

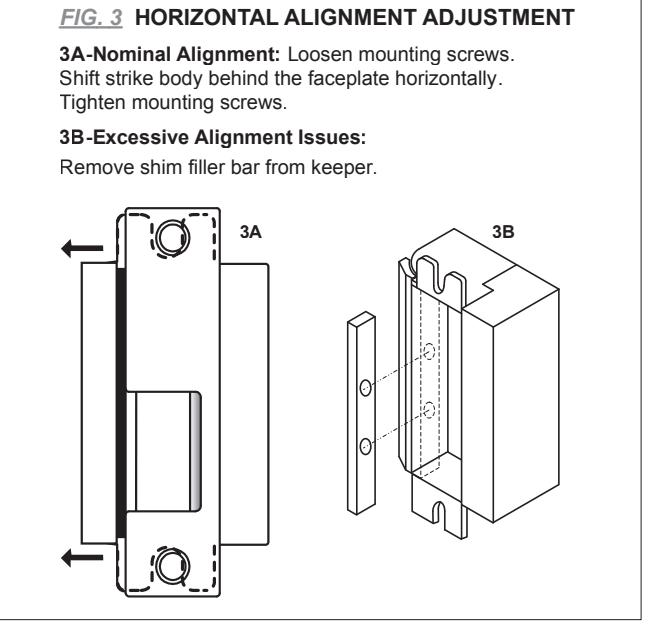

Faceplates determine operation and lockset compatibility. For faceplate applications see page 2. Indicate quantity and finish.

50A 50B 50C 50D 50E 50F

Specify Faceplate Finish

630 Stainless Steel (std)

606 Dull Brass

612 Dull Bronze

613 Oil Rubbed Bronze

625 Bright Chrome

626 Dull Chrome

Example:

10 ea. 50AU; 5 ea. 50BD; 5 ea. 50FU
