UniFLEX™ SPEC 55 Series Electric Strike, Grade 1 Heavy Duty - Factory tested 2500 lbs

STANDARD ANSI 4-7/8" STRIKE PREP - NO CENTERLINE RELOCATION REQUIRED.

One strike with choice of interchangeable faceplates for cylindrical and mortise locksets with or without deadbolts. Designed for new and retrofit hollow metal frame installations. *Frame face modification required.

55-B

FEATURES

• Up to ¾" Latchbolt and 1" Deadbolt
• Field Reversible, Failsafe/Failsecure
• 1/8" Horizontal alignment adjustment
• Dual Voltage 12/24VDC
• Exceeds 1,000,000 cycles
• Factory tested 2500 lbs static strength

Warnock Hersey Tested according to: UL 10C, 3 Hr Fire Rated, 4' x 8' single door NFPA-252 CM

• UL tested 1500 lb Static strength
• 70 ft-lb Dynamic strength
• ANSI/BHMA A156.31 Grade 1
• Internal Solenoid, No Heat in Keeper
• All parts stainless steel
• Non-handed

CAN4-S104 (ULC-S104) (Fail-Secure only).

UL 1034

Burglary-Resistant

BP10254 40WH

SPECIFY MODEL List

Lockset compatibility: For locksets not listed below, see UniFLEX™ 55 Series datasheet, page 3, faceplate dimension Deadbolt Application: 55-D, 55-E and 55-F, door will not close with deadbolt extended

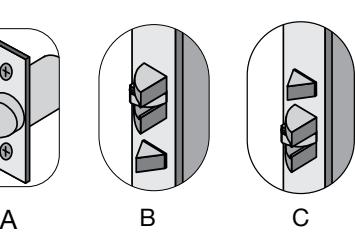

MODEL Application

55-A	Compatible with all cylindrical locksets (Grade1 or equivalent)	457.00
55-B	Mortise locksets and exit mortise devices with or without a deadlatch located below the latchbolt. Accurate, Arrow, Best, Corbin Russwin, Dorma, Falcon, Marks, PDQ, Sargent, Yale. 479.00
55-C	Mortise locksets and mortise exit devices with or without a deadlatch located above the latchbolt. SDC, Schlage, Baldwin, Hager	479.00
55-D	Mortise locksets with a deadbolt and deadlatch located below the latchbolt. Accurate, Arrow, Best, Corbin Russwin, Dorma, Falcon, Marks, PDQ, Sargent, Yale.	501.00
55-E	Mortise lockset with deadbolt and no deadlatch feature. Baldwin.	501.00
55-F	Mortise locksets with a deadbolt and a deadlatch located above the latchbolt. SDC, Schlage, Hager.	501.00
	SPECIFY FINISH	Add to List

U 630 Dull Stainless Steel (std)			N/C
	G 612 Dull Bronze	625 Bright Chrome P	45.00

D 606 Dull brass H 613 Oil Rubbed Bronze Q 626 Dull Chrome 45.00

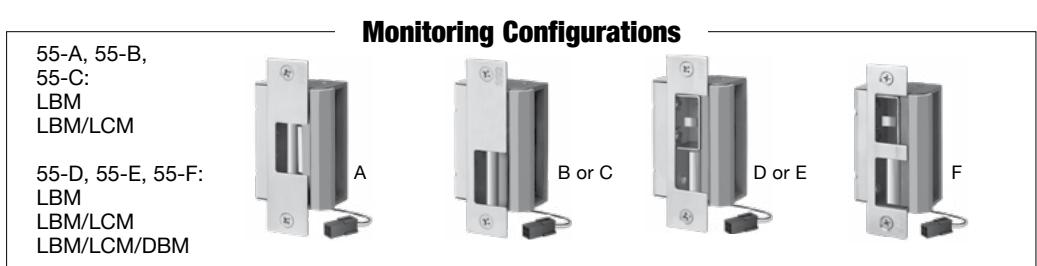

SPECIFY MONITORING OPTIONS Add to List LBM/LCM available with 55-A, 55-B, 55-C; LBM/LCM/DBM available with 55-D, 55-E, 55-F

LBM	Latchbolt Monitor. Signals the door is closed and latched or unlatched and open. Specify Handing for 55-D, 55-E, 55-F.	67.00
	LBM/LCM Door Secure Monitor. Signals door is closed latched and the keeper is deadlocked. Also signals the door is unlatched or unlocked. Specify Handing for 55-D, 55-E, 55-F.	134.00
DBM-L	Deadbolt Monitor, Left Hand (Available with LCM and LBM. For D, E & F funtions only)	67.00
DBM-R	Deadbolt Monitor, Right Hand (Available with LCM and LBM. For D, E & F funtions only)	67.00

ACCESSORIES		Add to List
50-RMB	Buzzer, 12/24V. Indicates strike is energized	45.00
BR64XL	Wire Lead Rectifier. Converts AC to DC	28.00
CA-55-4	Replacement set of 12V & 24V power pigtails	21.00

APPLICATION

• Adaptable to all 55-A, 55-B, 55C applications.
• Strike body and 5 faceplates
• For new and retrofit installation
• No relocation of the centerline.
• Non-handed

OPERATION

After releasing the latchbolt, the keeper returns to the locked position.

Finish: 630 Dull Stainless Steel

MODEL APPLICATION

55-ABC Universal Strike for cylindrical locks, mortise locks without deadbolts and mortise exit devices including: SDC, Accurate, Arrow, Baldwin, Best, Corbin Russwin, Dorma, Falcon, Hager, Marks, Sargent, Schlage, Yale. 501.00

Lockset compatibility:

For locksets not listed, see UniFLEX™ 55 Series datasheet, page 3, faceplate dimension
