801 Avenida Acaso, Camarillo, Ca. 93012 • (805) 494-0622 • www.sdcsecurity.com • E-mail: service@sdcsecurity.com

INSTALLATION INSTRUCTIONS 55 SERIES ELECTRIC STRIKE

55-ABC Universal Strike Pak for multiple cylindrical and mortise lockset applications.

55-A for cylindrical locksets Grade 1 or equivalent.

55-B / 55-C For mortise locksets with up to a 3/4" latch

55-D / 55-E / 55-F for mortise locksets with latch and deadbolt

SDC 55 Series heavy duty electric strikes are designed for use with cylindrical and mortise locksets and mortise exit devices. Several faceplate configurations eliminate the need for centerline relocation, making them perfect for new or retrofit construction.

FEATURES:

• Non-handed
• No Centerline relocation
• Up to 3/4" latch and 1" deadbolt
• 1/8"Horizontal alignment adjustment
• Field selectable Fail-Safe/Fail-Secure
• Field selectable 12/24VDC
• Stainless steel, corrosion resistant
• Tamper resistant heavy duty construction
• Plug-in connector
• Fits ANSI 115.1 frame prep. with face modification
• Patent pending

OPTIONAL MONITORING OUTPUTS:

LCM (Keeper Deadlocked Monitor)

Signals keeper is closed and deadlocked and/or unlocked.

LBM (Latch Bolt Monitor)

Signals latch is extended into strike and/or retracted.

DBM (Deadbolt Monitor)

Signals deadbolt is extended into strike and /or retracted.

Warnock Hersey Tested according to: UL 10C, 3 Hr Fire Rated (Fail-Secure only).

UL Tested according to:

UL 1034 Burglary-Resistant

INSTALLATION

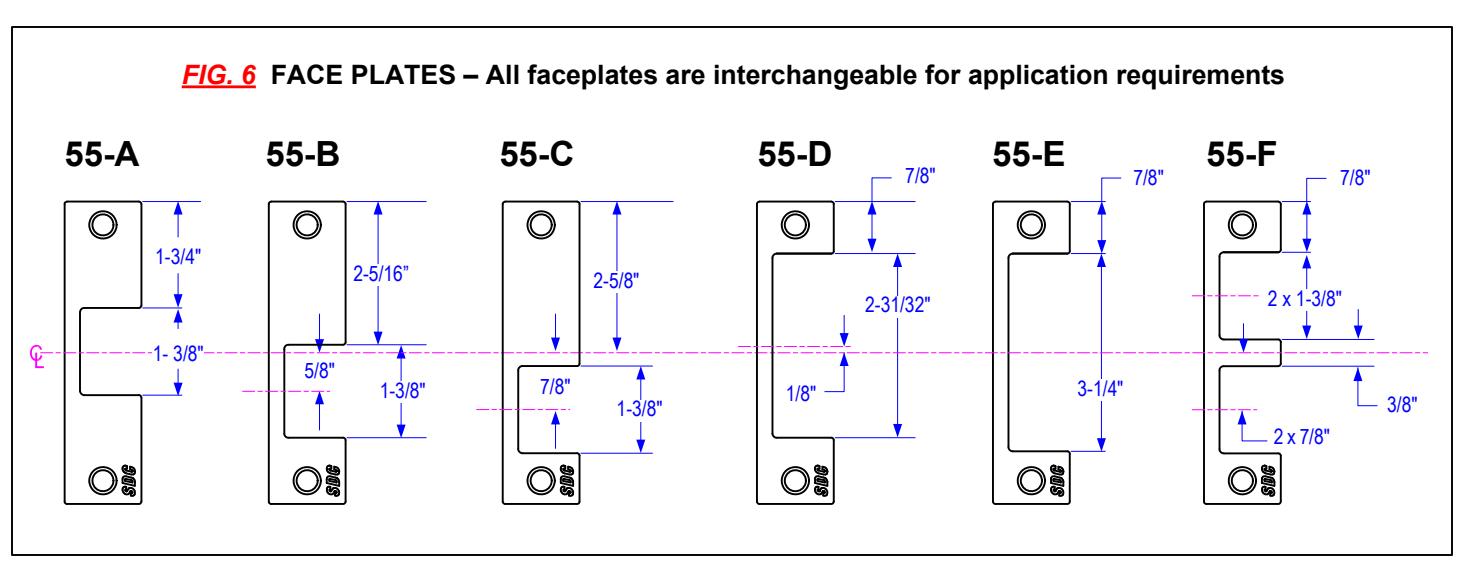

• 1. Verify lock compatibility, refer to page 2 and Fig. 6, page 4.

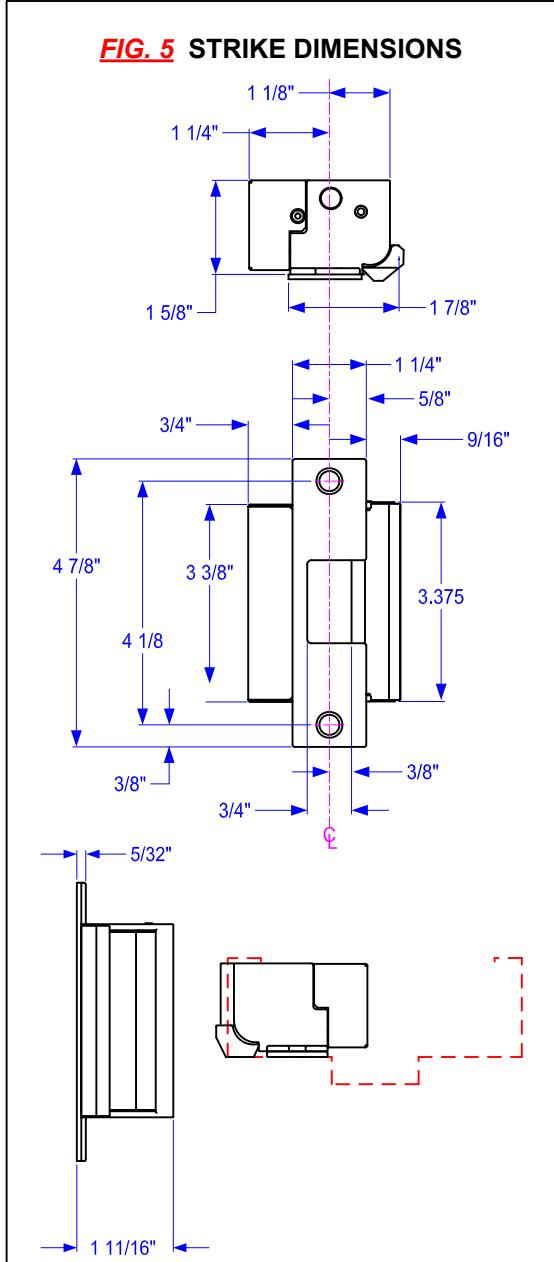

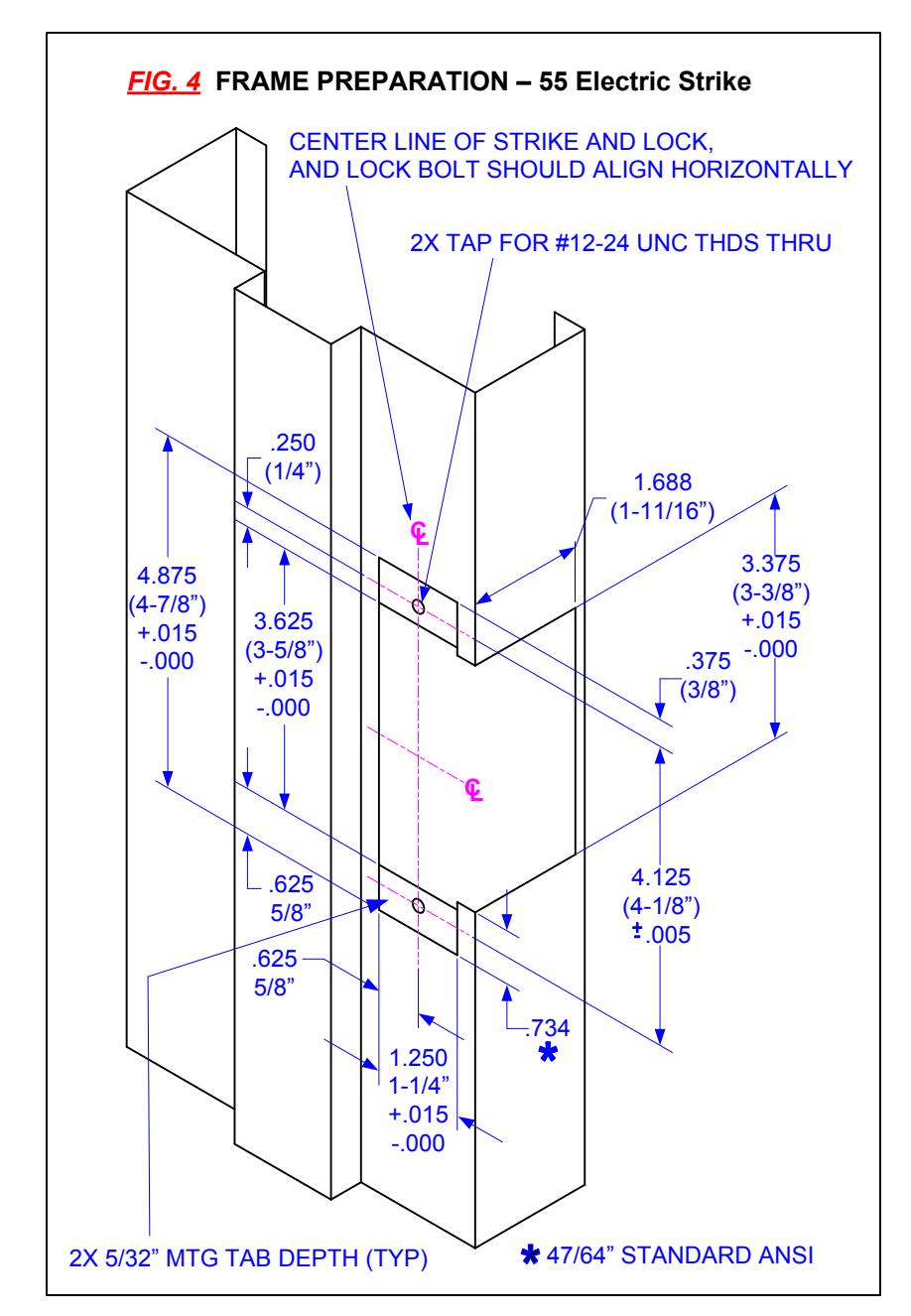

• 2. For proper frame preparation, refer to template drawings, Fig. 4 & 5, page 4.

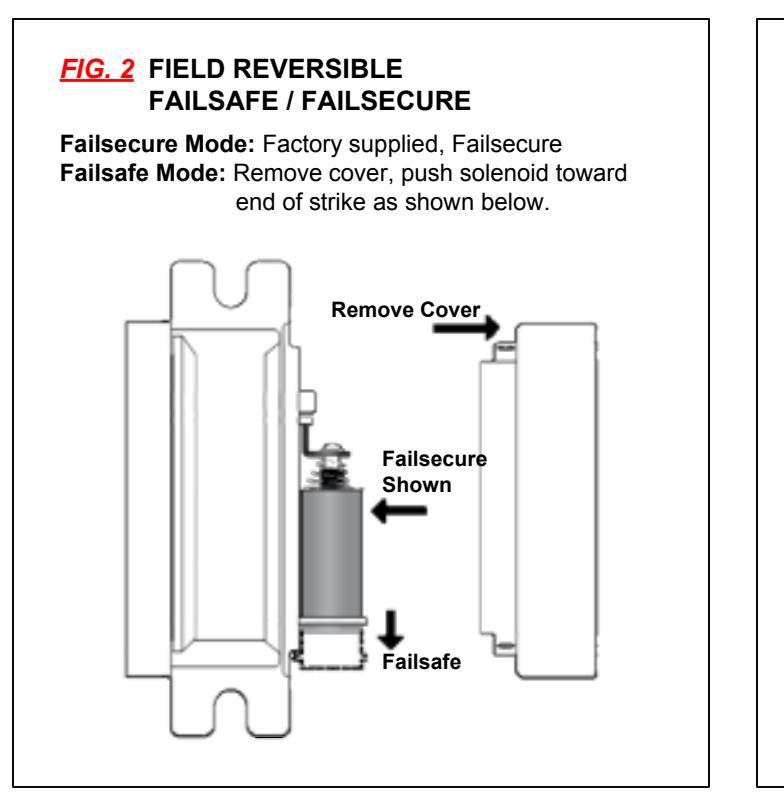

• 2. Factory supplied in Failsecure mode. For Failsafe mode refer to Fig. 2, page 3
• 3. Determine minimum wire gauge required. See wire gauge chart below.
• 4. CAUTION! Before connecting power wires check for proper operating voltage at opening with a volt meter. Voltage must be within +/- 10% of strike operating voltage for proper operation.

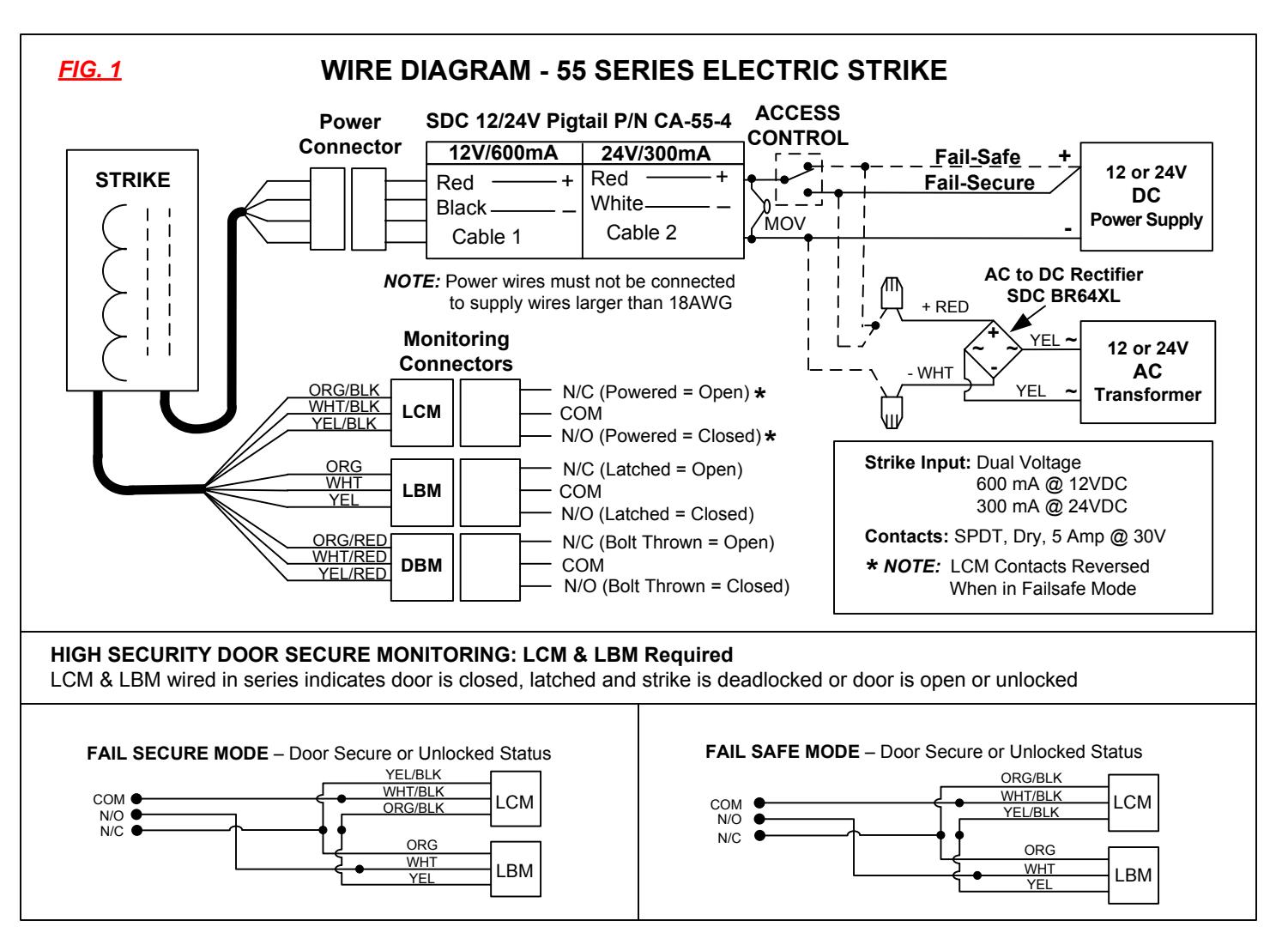

• 5. Configure strike for 12 or 24VDC operation. Refer to pigtail power connector wiring in Fig. 1, Page 3 . Connect wires to power source.
• 6. To install the strike into the frame opening:
  • A) Position the wiring either down or up or toward the back of the hollow metal frame. Make sure wires are completely clear of strike, so they are not pinched when mounting strike in the frame.
  • B) Insert mounting screws through the faceplate and secure into mounting tabs.
• 7. After installation check horizontal alignment. There should be 1/32" allowable movement when the door is pulled toward the keeper.

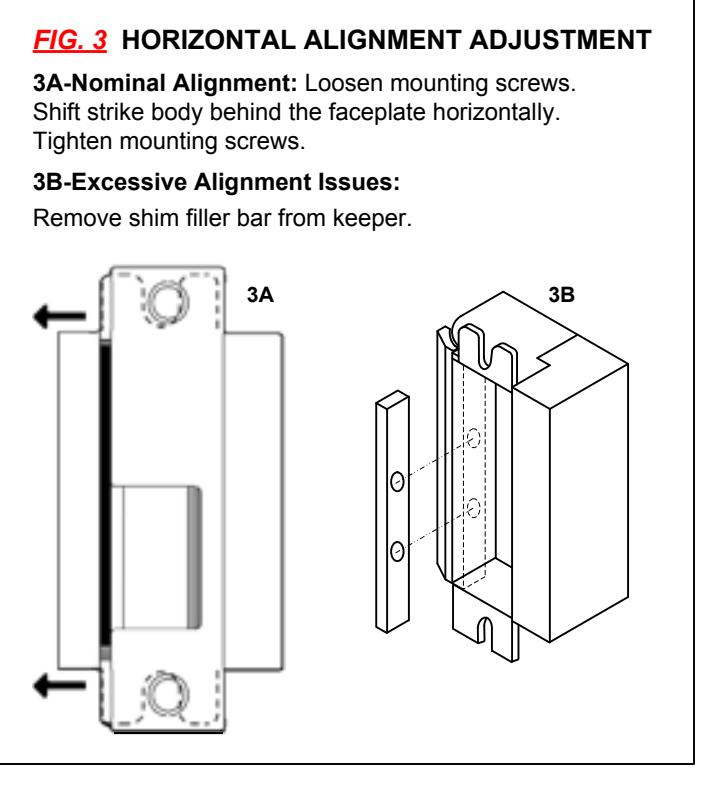

• 8. ALIGNMENT ADJUSTMENT: Loosen mounting screws, shift strike body behind faceplate horizontally as shown in Fig. 3A, page 3 , then tighten mounting screws.
• 9. For excessive horizontal alignment issues, remove shim filer bar from the keeper as shown in Fig. 3B, page 3
• 10. The Electric Door Strike MUST be installed in such a way and in such a location so as not to impair the operation of an emergency exit or panic hardware mounted on the door.

Strike Input - Minimum Wire Gauge Requirements
Voltage	100 ft	150 ft	200 ft	250 ft	300 ft
12VDC	18 Ga	16 Ga	14 Ga	14 Ga
24VDC	18 Ga	18 Ga	18 Ga	16 Ga	16 Ga

Monitoring outputs: Minimum 22 Gage wire recommended

OPERATION:

Fail-Secure (Power-to-Unlock): Unlocked when energized. Locked when de-energized and during power failure.

Application: For non fire rated and fire rated doors (exception, may not be used on stairwell doors). May not be maintained in the unlocked (energized) state when used with fire rated doors.

Fail-Safe (Power-to-Lock): Locked when energized. Unlocked when de-energized and during power failure.

Application: Non-fire rated doors only.

CAUTION: Fail-safe is not permitted with the UL Fire Door

Accessory label.

55 SERIES ELECTRIC STRIKE

Strike body and faceplate(s) provided as shown below. Faceplates are interchangeable and may be ordered separately.

UNIVERSAL APPLICATION KITS

Order strike bodies and different faceplates separately to accommodate all applications.

Model	Lockset	Application	Compatible Locks	Operation
55-ABC		Universal Strike Pak • Adaptable to all 55-A, 55-B, 55C applications listed below. • 5 strike body and faceplates • For new and retrofit installation • No relocation of the centerline.	• Grade 1 or equivalent Latchbolt 9/16" – 3/4" • All mortise locksets listed with 55-B & 55-C	After releasing the latchbolt, the keeper returns to the locked position.
55-A		• Bored (Cylindrical) locks. • No relocation of the centerline.	• Grade 1 or equivalent Latchbolt 9/16" – 3/4" • Adams Rite 4720 ANSI and compatible narrow stile locks.	After releasing the latchbolt, the keeper returns to the locked position.
55-B		• Mortise locksets and exit devices with or without a deadlatch located below the latchbolt. • For new and retrofit installation • No relocation of the centerline.	• Accurate • Falcon • Arrow • Marks • Best • Sargent • Corbin Russwin • Yale • Dorma	After releasing the latchbolt, the keeper returns to the locked position.
55-C		• Mortise locksets and exit devices with or without a deadlatch located above the latchbolt. • For new and retrofit installation • No relocation of the centerline.	• SDC • Baldwin • Hager • Schlage	After releasing the latchbolt, the keeper returns to the locked position.
55-D		• Mortise locksets with a deadbolt and a deadlatch located below the latchbolt. • Deadbolt will not release. • For new and retrofit installation • No relocation of the centerline.	• Accurate • Falcon • Arrow • Marks • Best • Sargent • Corbin Russwin • Yale • Dorma	When the deadbolt is projected manually, the strike will not release. When the deadbolt is retracted, access is accomplished by electrically releasing the keeper.
55-E		• Mortise lockset with a deadbolt. • Deadbolt will not release. • For new and retrofit installation • No relocation of the centerline.	• Baldwin	When the deadbolt is projected manually, the strike will not release. When the deadbolt is retracted, access is accomplished by electrically releasing the keeper.
55-F		• Mortise locksets with a deadbolt and a deadlatch located above the latchbolt. • For new and retrofit installation • Deadbolt will not release.	• SDC • Schlage • Hager	When the deadbolt is projected manually, the strike will not release. When the deadbolt is retracted, access is accomplished by electrically releasing the keeper.
