5400 Regular Arm and Top Jamb Template – T-CL00831-Rev01

TEMPLATE INSTRUCTIONS

5400 Series Door Closers

REGULAR ARM & TOP JAMB

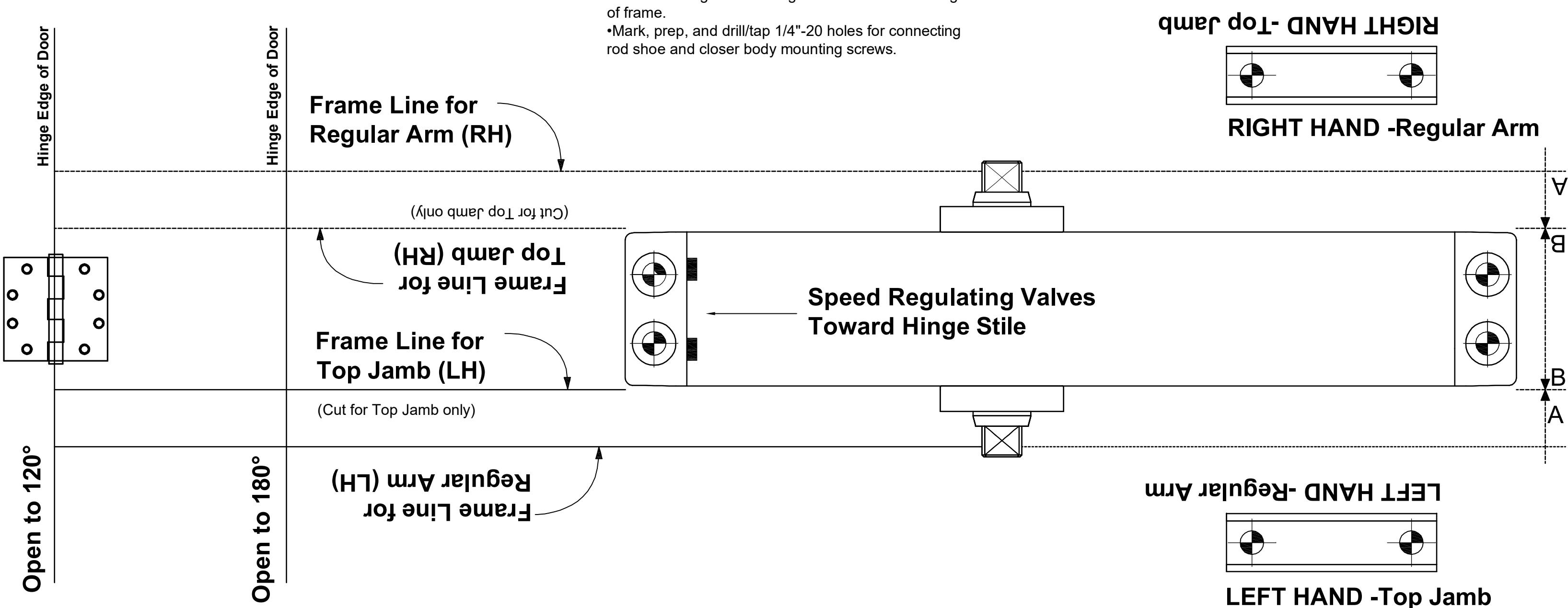

•Separate template sections "A" and "B".

Installing a Top Jamb Arm

•Match this line with the hinge edge of door and attach

•Select hand of door and the degree of door opening.

• •Be sure "Frame" line on template lines up with the top edge of the door.
• •Using a square, project "Closer Projection Line" on section "A" of template onto frame and use to align and attach section "B".
• •Be sure to align bottom edge of section "B" with edge

Installing a Regular Arm

• ·Select hand of door and degree of door opening.
• •Fold template on the corresponding line for desired degree of door opening and hand.
• •Match this line with the hinge edge and door and attach template to door.
• •Be sure frame line on template lines up with the bottom edge of frame face.
• •Mark, prep, and drill/tap 1/4"-20 holes for closer body and jamb shoe mounting screws.
