5301/5501 DOOR CLOSER MODELS

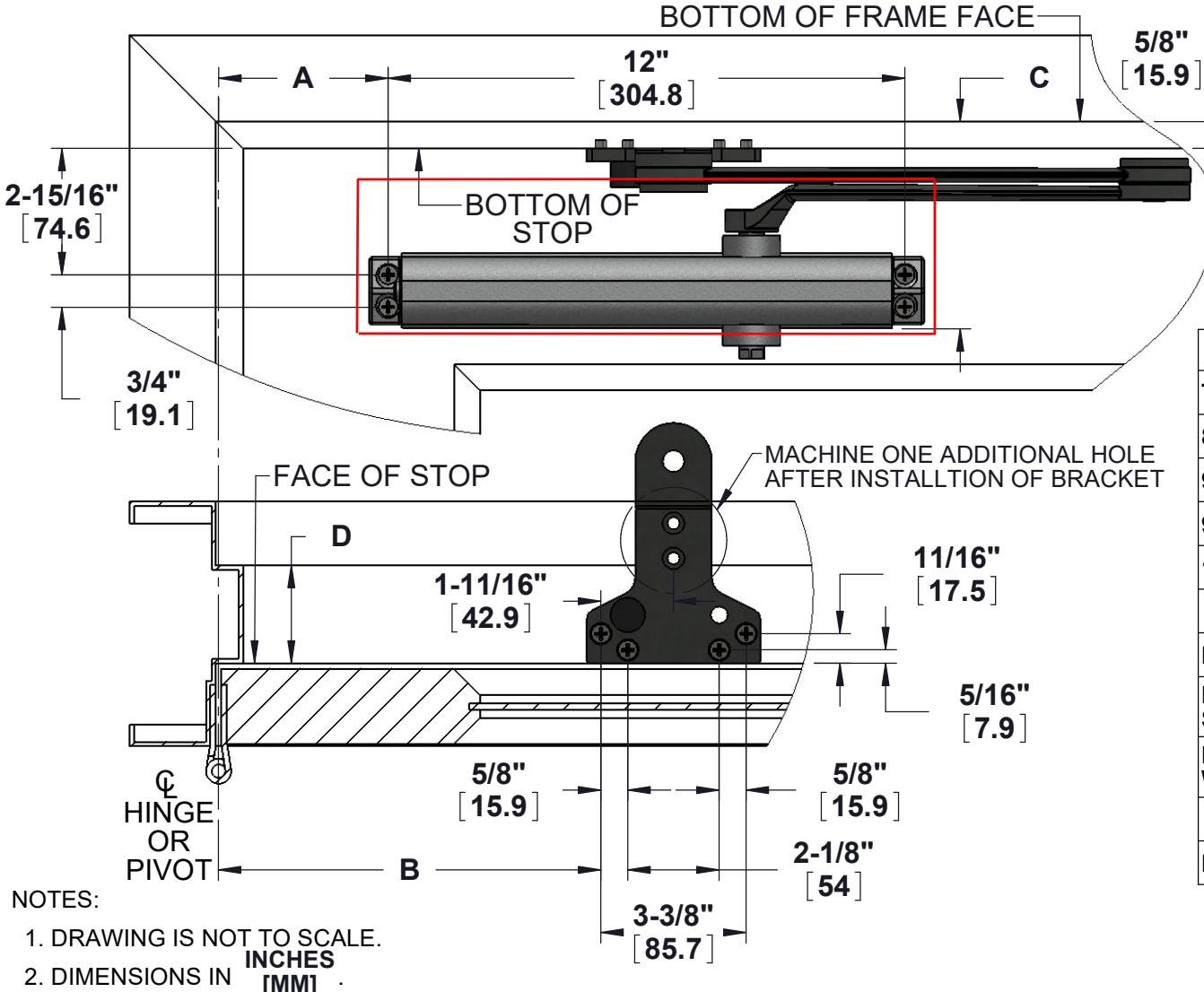

PARALLEL ARM INSTALLATION - PUSH SIDE DS AND DSHO APPLICATIONS

TEMPLATE: 539304, RFV. 1 8-23-18

MACHINE SCREWS: USE #7 OR 13/64" [5.1] DRILL AND 1/4-20 TAP WOOD DOOR/FRAME SCREWS: USE 5/32" [4] DRILL
MACHINE SCREWS: USE #7 OR 13/64" [5.1] DRILL AND 1/4-20 TAP

USE 3/8" [9.5] DRILL (CLOSER TO DOOR)

Opening**	Dim. A	Dim. B
To 85°	3-7/8" [98.4]	8-7/8" [225.4]
86° To 90°	3-1/4" [82.6]	8-1/4" [209.6]
91 ° To 95 °	2-11/16" [68.3]	7-11/16 [195.3]
96° To 100°	2-1/16" [52.4]	7-1/16" [179.4]
101° To 105°	1-1/2" [38.1]	6-1/2" [165.1]
Dim C.*
MIN. TO BOTTOM OF CLOSER		4-11/16" [119.1]
MIN. TO BOTTON STREAMLINE CO	5-7/16" [138.1]
MIN. TO BOTTOM OF FULL COVER WITH INSERT - 5500 SERIES		5-13/16" [147.6]
Dim. D
MIN. STOP DEPTH RECOMMENDED 1-1/4" [31.8]

MIN. RAIL DIMENSIONS BASED ON 5/8" [15.9] STOP HEIGHT AND 1/8" [3.2] TOP DOOR GAP.

**DOOR MAY SWING UP TO 5° BEYOND STOP/HO POINT INDICATED

3. LEFT HAND DOOR SHOWN. FOR RIGHT HAND DOOR REVERSE IMAGE.
4. DIMENSIONS BASED ON 4-1/2" X 4-1/2" BUTT HINGES.
5. DOOR SWING MAY BE ALTERED DUE TO OTHER LIMITING CONDITIONS.
6. CAUTION: SEX NUTS MAY BE REQUIRED FOR UNREINFORCED DOORS OR COMPOSITE FIRE DOORS. CONSULT MANUFACTURER'S RECOMMENDATIONS.
7. HOLD OPEN ARMS CAN NOT BE USED ON LABELED FIRE DOORS.
8. ALWAYS CHECK PDQ WEBSITE FOR THE MOST RECENT REVISION AT WWW.PDQLOCKS.COM.
