I-CL00860

An incorrectly installed or improperly adjusted door closer can cause property damage or personal injury. These installation instructions should be followed to avoid the possibility of misapplication or misadjustment.

NOTE: For special applications, a separate door and frame preparation template is packed with these instructions. Use this instruction sheet for installation sequence and closer adjustments only.

• Dimensions are based on standard doors and frames with 1/8" clearance, 5/8" stops, and square edge doors.
• Door and frame must be properly reinforced.

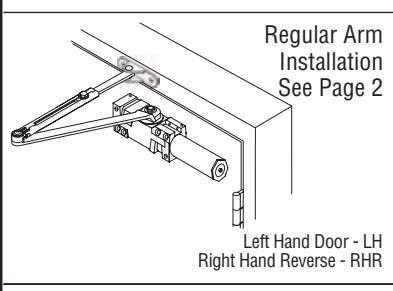

• Non-Handed Door Closers.
• A mounting plate may be required for some applications.

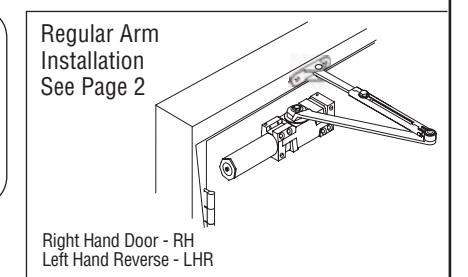

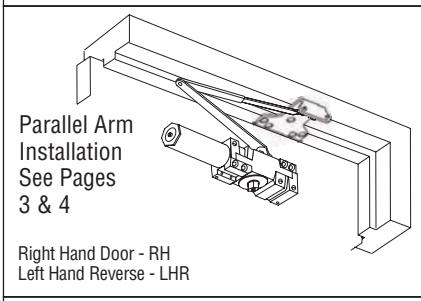

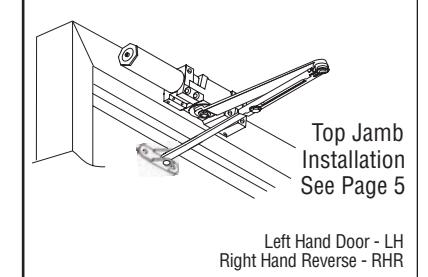

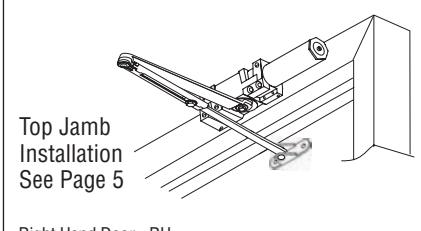

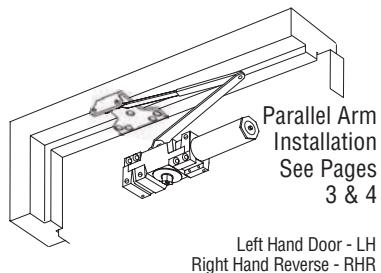

Right Hand Door - RH Left Hand Reverse - LHR

• These door closers should NOT be installed on the exposed side (weather side) of exterior doors.

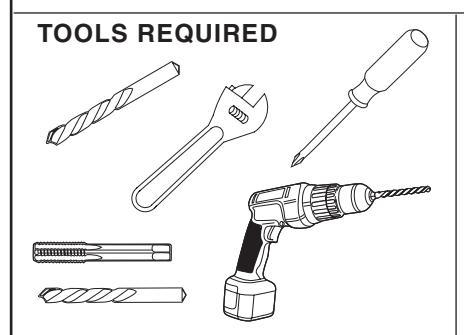

Self Drilling Screws Wood and Metal For wood drill 3/16" hole

For wood, drill 3/16" hole

Machine Screws #7 Drill. 1/4"- 20 Tap

Drill 9/32" thru from Closer Side 3/8" Drill other Side

Check building and fire codes to see if your application requires the use of sleeve nuts and bolts.

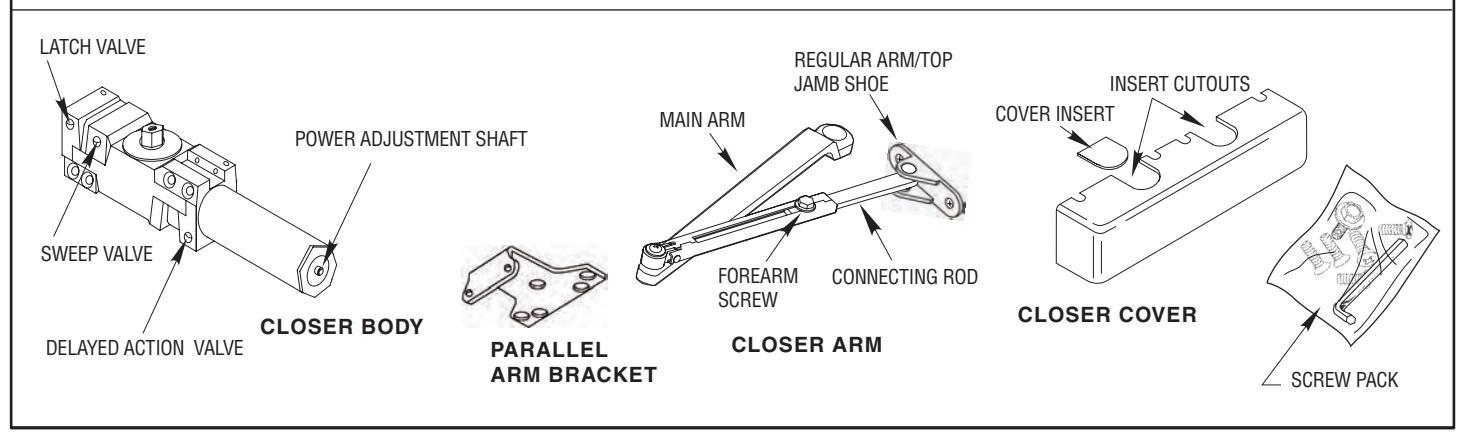

COMPONENT PARTS

3ERIES$OOR#LOSER 2EGULAR!RM $ELAYED!CTION)NSTRUCTIONS

I-CL00860

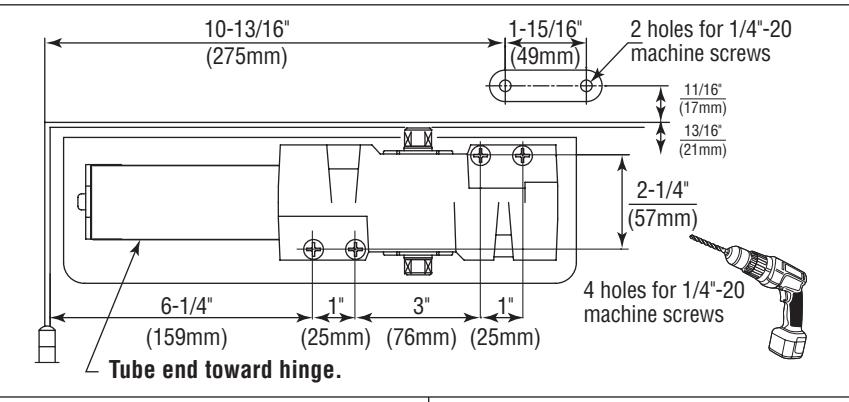

-!2+!.$$2),,(/,%3 2IGHT(AND3HOWN

$OOR/PENING

!NOPTIONALMOUNTINGPLATEISREQUIREDWHENTOPRAILIS LESSTHAN vMM 0LATEREQUIRESvMM MINIMUMTOPRAIL

3ELECTHANDOFDOORANDDEGREEOFDOOROPENING&OLD TEMPLATEONTHEHINGEEDGEOFDOORLINE-ATCHTHIS LINEWITHTHEHINGEEDGEOFDOORANDATTACHTEMPLATETO DOOR"ESUREFRAMELINEONTEMPLATELINESUPWITHTHE BOTTOMEDGEOFFRAMEFACE-ARKPREPANDDRILLTAP -HOLESFORCLOSERBODYANDJAMBSHOE MOUNTINGSCREWS

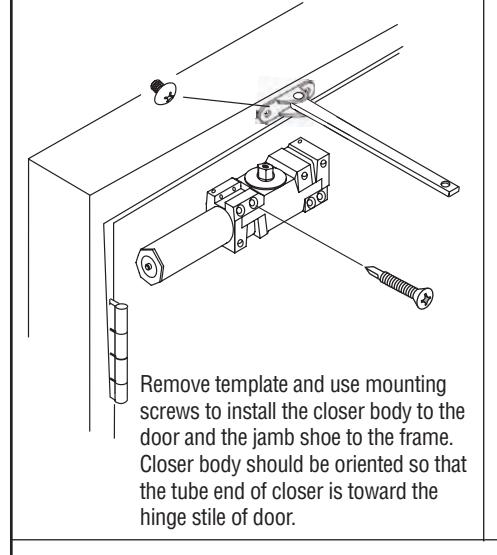

).34!,,#,/3%2

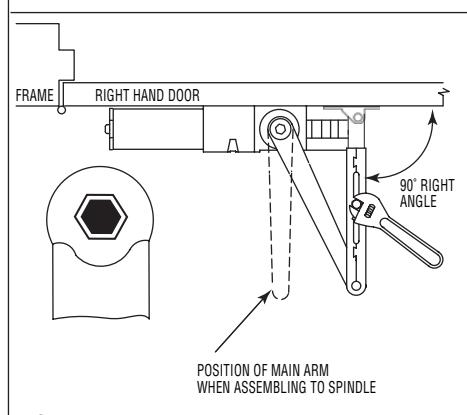

).34!,,-!).!2- ).34!,,-!).!2-!.$ #/..%#4).'2/$

3LIDECONNECTINGRODINTOFOREARMOFMAINARM 2OTATEMAINARMUNTILCONNECTINGRODISATA ANGLETOFRAME7HILEHOLDINGARMINTHIS POSITIONTIGHTENDOWNFOREARMSCREW

/04)/.!,(/,$ /0%.!2- ).34!,,#/6%2

)DENTIFYDIRECTIONOFHOLD OPENNUTACCORDINGTOHANDOFDOORAND MOUNTARM

!DJUSTBYLOOSENINGHOLD OPENNUTTHENOPENDOORTODESIREDPOSITION ANDTIGHTENHOLD OPENNUTSECURELY

!$*534-%.43

3EE!DJUSTMENTSON 0AGEFORSETTING 3PRING0OWER3WEEP 3PEED,ATCH3PEED AND"ACKCHECK

./4% $ONOTFULLYUNSCREWVALVES ORHYDRAULICFLUIDWILLLEAKANDCLOSER WILLNOLONGERBEFUNCTIONAL

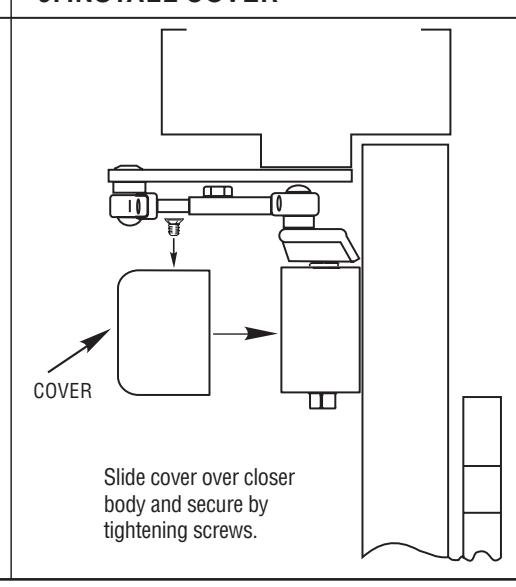

#/6%2 3LIDECOVEROVERCLOSERBODYAND SECUREBYTIGHTENINGSCREWS

5100 Series Door Closer - Parallel Arm Delayed Action Instructions

I-CL00860

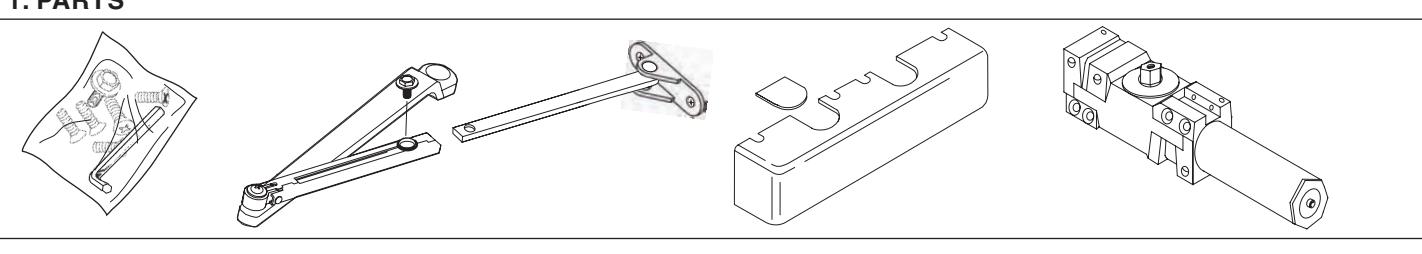

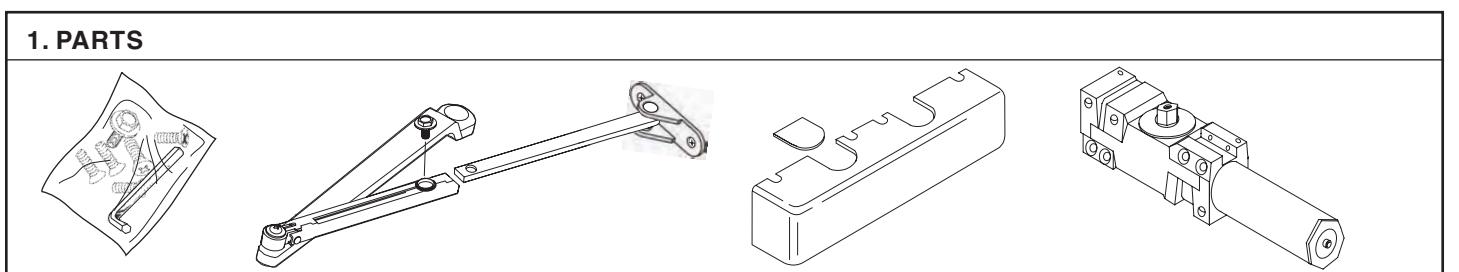

1. PARTS

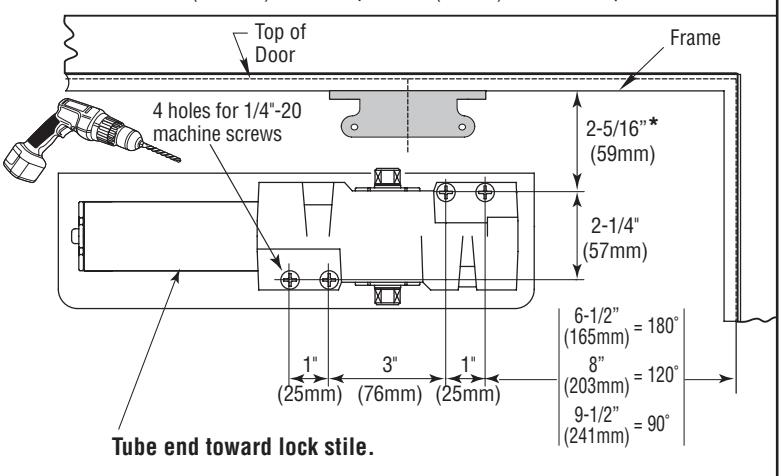

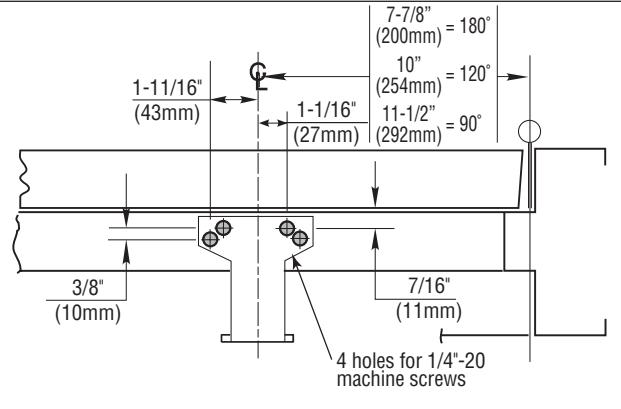

2. MARK AND DRILL HOLES (Right Hand Shown)

Select hand of door. Fold template on the hinge edge of door line. Fold or cut upper corner illustrated on template and align template with the hinge edge of door. At the "Frame Stop Line" fold toward you and attach template to door. Mark, prep and drill/tap 1/4"-20 holes for closer body and parallel arm bracket mounting screws.

*Measured from frame Stop or pre-mounted jamb weatherstripping. Install before measuring closer hole locations.

An optional mounting plate is required where top rail is less than 5-1/2" (140mm). Plate requires 2" (51mm) minimum top rail.

3. INSTALL CLOSER

BEFORE INSTALLATION:

Turn delayed action selector valve (found on back side of closer) all the way in (clockwise).

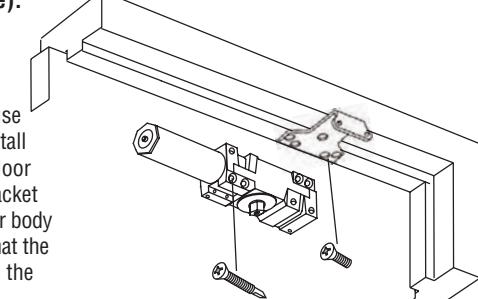

Remove template and use mounting screws to install the closer body to the door and the parallel arm bracket to the frame soffit. Closer body should be oriented so that the tube of closer is toward the lock stile of door.

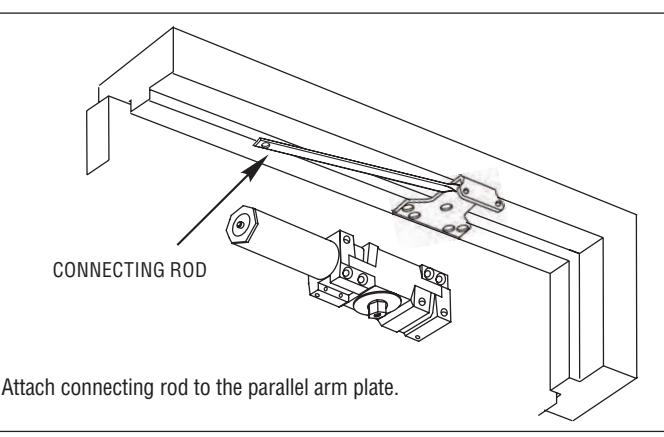

4. INSTALL CONNECTING ROD

5. INSTALL MAIN ARM

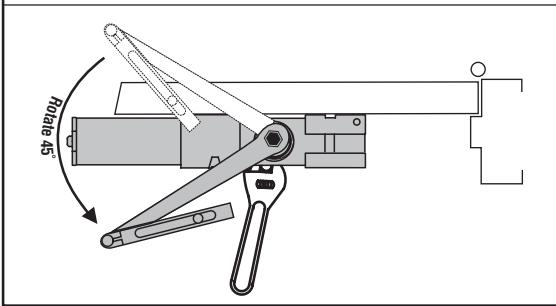

Use adjustable wrench to rotate spindle 45° counterclockwise for Right Hand Door or clockwise for Left Hand Door. Place main arm on spindle so that it is 45° or less from the tube end of the closer body. Secure main arm and spindle by tightening spindle bolt.

5100 Series Door Closer - Parallel Arm Delayed Action Instructions

I-CL00860

a)

b)

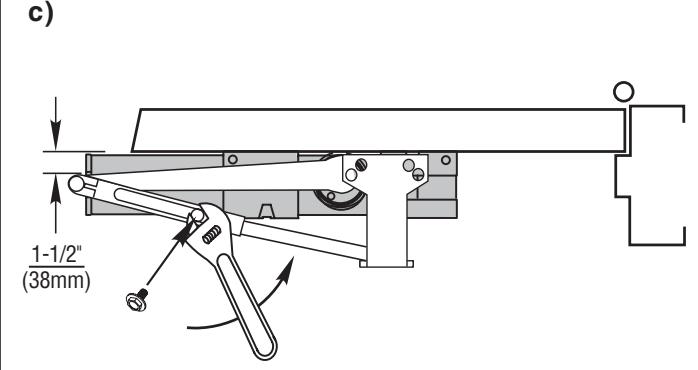

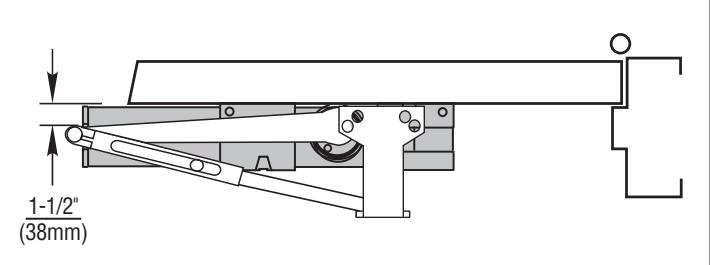

Rotate main arm until the pivot point is 1-1/2" from door surface.

7. OPTIONAL HOLD-OPEN ARM 8. ADJUS

Identify direction of hold-open nut according to hand of door and mount arm.

Adjust by loosening hold-open nut, then open door to desired position and tighten hold-open nut securely.

8. ADJUSTMENTS

See Adjustments on Page 6 for setting Spring Power, Sweep Speed, Latch Speed, and Backcheck.

NOTE: Do not fully unscrew valves or hydraulic fluid will leak and closer will no longer be functional.

9. INSTALL COVER

While holding arm in this position, tighten down forearm screw.

5100 Series Door Closer - Top Jamb Arm Delayed Action Instructions

I-CL00860

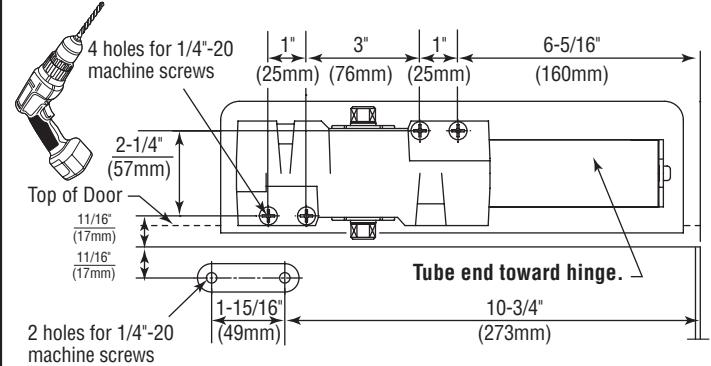

2. MARK AND DRILL HOLES (Right Hand Shown)

An optional mounting plate is required where the head frame face is less than 3-1/2" (89mm). Plate requires 1-3/4" (44mm) minimum head frame.

120° Door Opening

Select hand of door. Separate template sections "A" and "B". Fold template on the hinge edge of door line. Match this line with the hinge edge of door and attach template to door. Be sure "Frame" line on template lines up with the top edge of door. Using a square, project "Closer Projection Line" on section "A" of template onto frame and use to align and attach section "B". Be sure to align bottom edge of section "B" with edge of frame. Mark, prep and drill/tap 1/4"- 20 holes for connecting rod shoe and closer body mounting screws.

3. INSTALL CLOSER

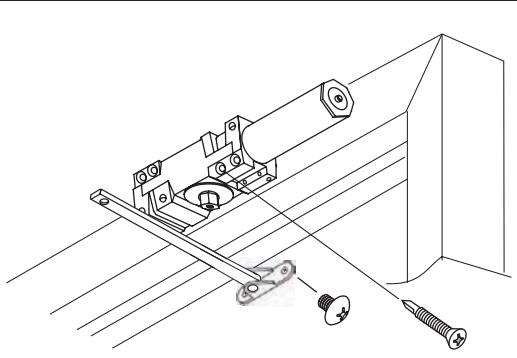

Remove template and use mounting screws to install the closer body to the top jamb and the connecting rod shoe to the door. Closer body should be oriented so that the tube end of closer is toward the hinge stile.

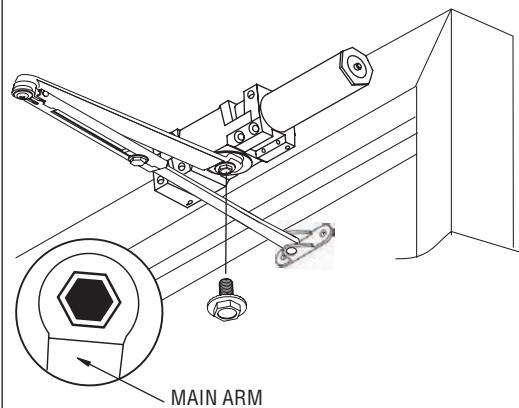

4. INSTALL MAIN ARM

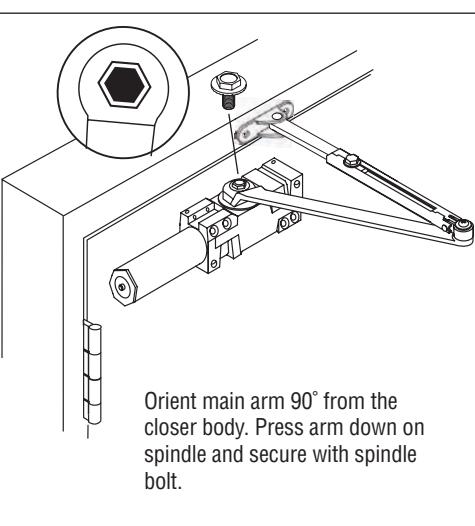

Orient main arm 90° from the closer body. Press arm down on spindle and secure with spindle bolt.

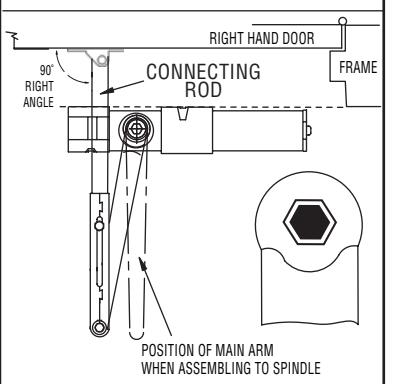

5. INSTALL MAIN ARM AND CONNECTING ROD

Slide connecting rod into forearm of main arm. Rotate main arm until connecting rod is at a 90° angle to frame. While holding arm in this position, tighten down forearm screw.

6. OPTIONAL HOLD-OPEN ARM

Identify direction of hold-open nut according to hand of door and mount arm.

Adjust by loosening hold-open nut, then open door to desired position and tighten hold-open nut securely.

7. ADJUSTMENTS

See Adjustments on Page 6 for setting Spring Power, Sweep Speed, Latch Speed, and Backcheck.

NOTE: Do not fully unscrew valves or hydraulic fluid will leak and closer will no longer be functional.

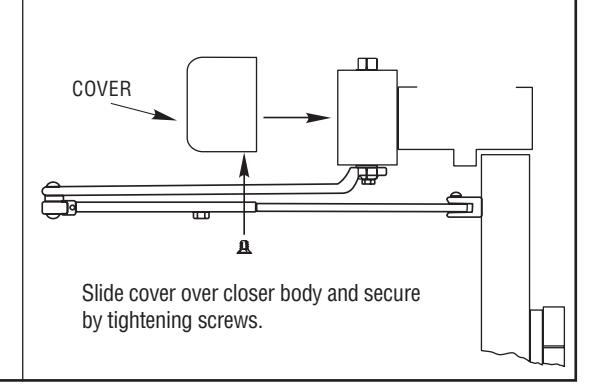

8. INSTALL COVER

5100 Series Door Closer - Adjustments Delayed Action Instructions

I-CL00860

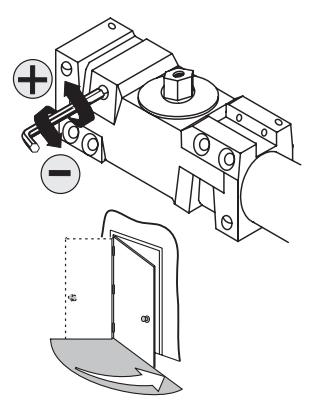

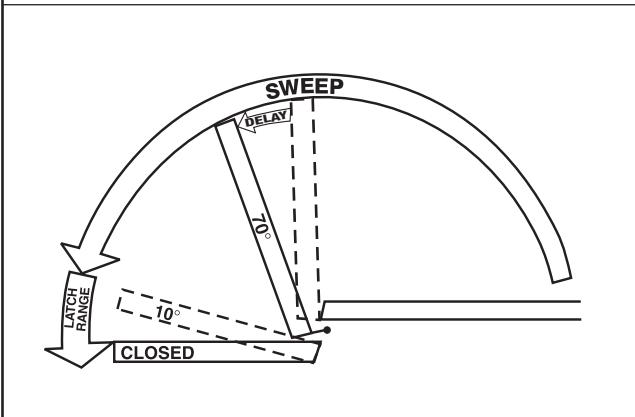

ADJUSTMENTS (USE 5/32" HEX WRENCH FOR THESE ADJUSTMENTS)

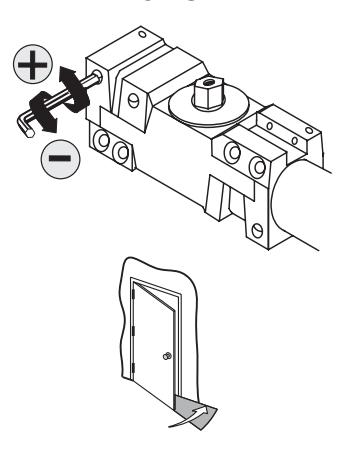

SWEEP SPEED

Note: Adjust closing time speed from 50 to 0. Greater closing times may be required for elderly or handicapped.

LATCH SPEED

Adjust latch speed so door completely closes and latches.

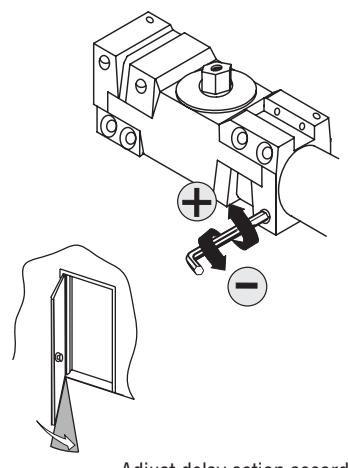

DELAY ACTION

Adjust delay action accordingly to obtain desired delay time from 90 to $50\backslash ,$ .

SPRING POWER ADJUST (Sizing in accordance to BHMA/ANSI 156.4)

TABLE OF SIZES Closer is shipped 3. To change the

Closer is shipped set to size 3. To change the closer size, use a hex wrench to rotate the spring power adjust. Follow the chart to make the correct numbers of 360° turns to set the closer size appropriately for the door application.

The number of turns is an approximation and does not account for environmental or door hardware affects.

cw = clockwise ccw = counterclockwise

Exterior (and Vestibule) Door Width

	Minimum Door Width (24")
_	4" - 30" - 36" - 42" - 48 mm) (762mm) (914mm) (1067mm) (1219r
Regular Arm & Top Jamb	Size 3 (0)	Size 4 (4cw)	Size 5 (8cw)	Size 6 (12cw)
Parallel Arm	Size 3 (4cw)	Size 4 (8cw)	Size 5 (12cw)

Interior Door Width Minimum Door Width (24")

$\backslash begin\{array\}\{cccccccccccccccccccccccccccccccccccc$

Regular Arm & Top Jamb

Parallel Arm

) )	Size 1 (8ccw)	Size 2 (4ccw)	Size 3 (0)	Size 4 (4cw)	Size 5 (8cw)	Size 6 (12cw)
	Size 1 (4ccw)	Size 2 (0)			Size 5 (12cw)

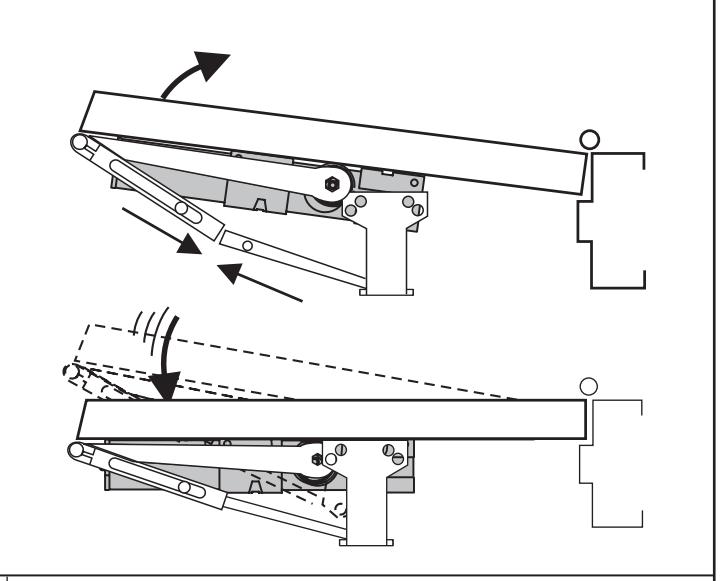

ADJUSTMENT DIAGRAM

(Use 5/32" Hex Wrench

for this adjustment)

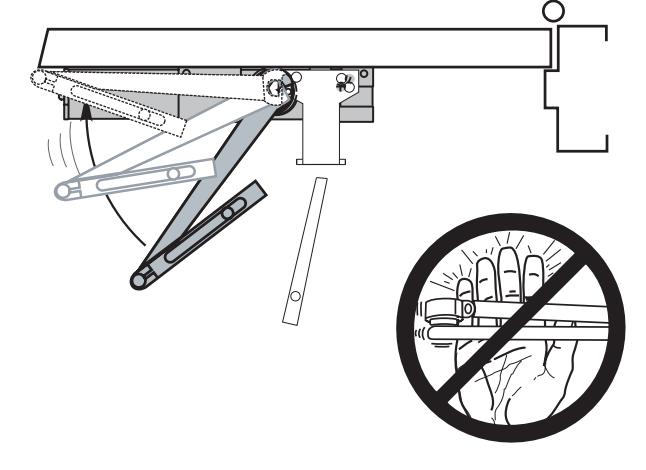

Flip connecting rod as

shown to increase closer strength.

SHOE PLACEMENT

or

— 6 —
