510 & 600 Template T361-Rev05

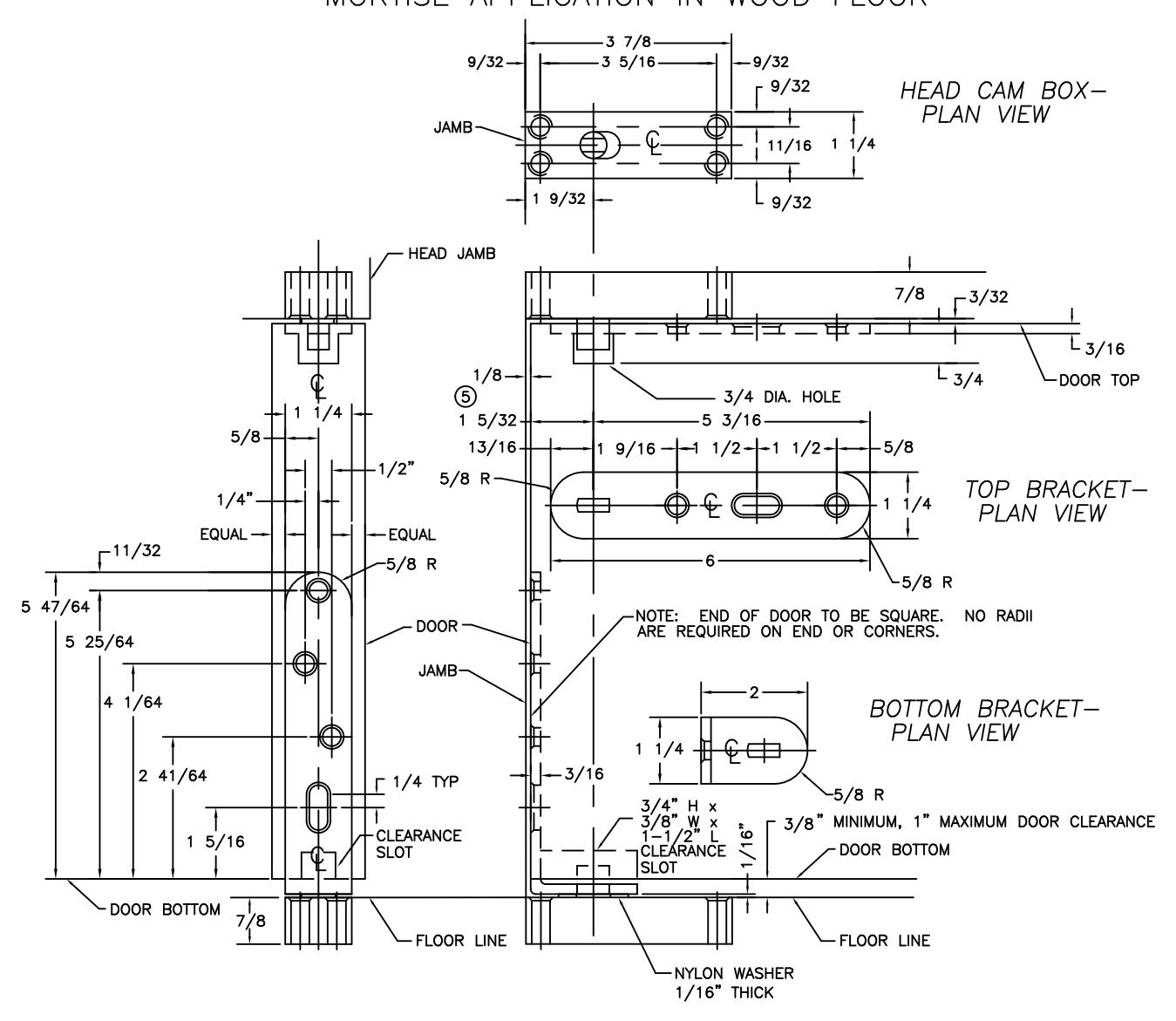

DOUBLE ACTING PIVOT HOSPITAL SET TEMPLATE HINGE MORTISE APPLICATION IN WOOD FLOOR

-DO NOT SCALE-

CATALOG NUMBER 510 WITHOUT RELEASE 600 WITH RELEASE

ALL DIMENSIONS ARE IN INCHES.

Machine Screw Size:

Door Mount Brackets— 12—24 x 1/2" F.H. Head Cam Box— 12—24 x 1 1/4" F.H.

Stop/Release- 12-24 x 1/2" F.H.

Wood Screw Size:

Door Mount Brackets— No. 12 x 1" F.H. Cam Boxes— No. 12 x 1" F.H. Stop/Release- No. 12 x 1" F.H.

NOTE: To be used with 610 Emergency Stop Release (see Template No. T360).

HAGER COMPANIES 139 Victor St. St. Louis, MO 63104 1-800-325-9995

HAGER RESERVES THE RIGHT TO MAKE DESIGN CHANGES WITHOUT NOTICE.

DESCRIPTION:

510 PIVOT TEMPLATE

(REF. 17370004)

REVISION NO BY DATE ECO CT09003|SLJ |04.20.10

PART NO. T361_510 PIVOT
