ADJUSTABLE SPRING POWER - SURFACE APPLIED CLOSER
5000-TP SERIES
GRADE 1 • HANDICAP
FEATURES
- • Model 5001-TP
- ADA (Handicap) multi·sized closer with adjustable spring power for a range of sizes. 1-6 adjustable back check and delay action, adjustable after installation.
- Two Speed Control Valves: Closing and latching speeds controlled by separate regulating valves, adjustable after installation.
- Universal application. Non-handed for standard, top jamb or parallel arm installation.
- Furnished with dress cover and PA bracket.
- Rack and pinion mechanism contained in a high tensile precision cast aluminum housing.
- Stable hydraulic door check fluid for any climatic operation and constant lubrication.
- Optional, hold-open arms.
- Hold-open arms are adjustable for holding from 90° to 180°
FINISHES
- AL Aluminum
- DU Storefront Bronze

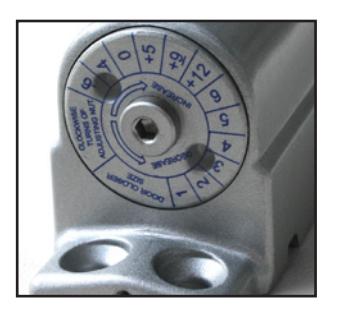

• Spring Power Adjustment
• Latching and Sweep Adjustment Valves

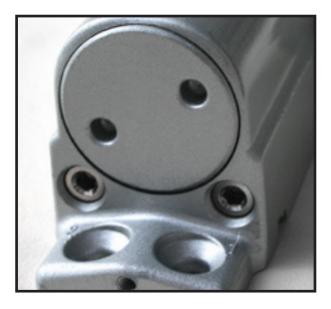

• Back-Check and Delay Adjustment Valve

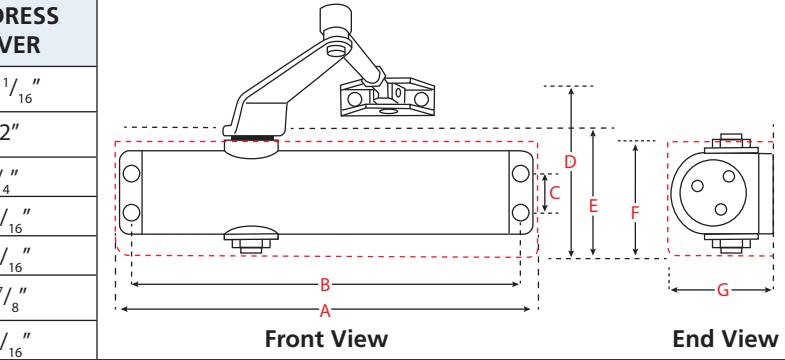

TECHNICAL DIMENSIONS
| Description |
WITH DRESS
COVER |
NO DRESS
COVER |
|---|---|---|
| A. Length of Closer Body | 13" | 12 11/16" |
| B. Horizontal Mounting Holes | 12" | 12" |
| C. Vertical Mounting Holes |
3
/4 " |
3
/4 " |
| D. Overall Height |
5 1
/8 " |
5 1
/16" |
| E. Top of Door to Bottom of Closer |
3 1
/2 " |
3 7
/16" |
| F. Closer Body Height | 3" |
2 7
/8 " |
| G. Projection from Door |
2 5
/16" |
2 3 |
International Door Closers, Inc.
West: 800-544-4422 • East: 800-225-6737

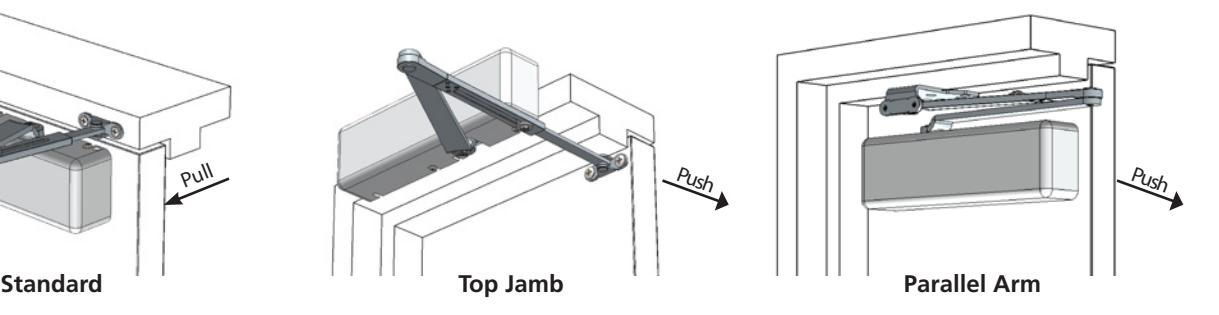

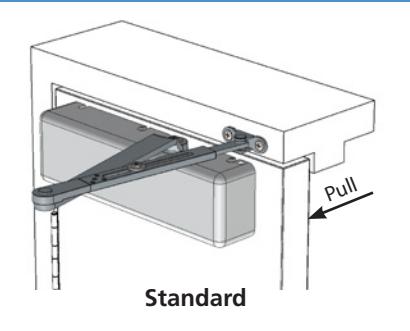

INSTALLATION TYPES
TYPICAL INSTALLATIONS (REGULAR ARMS SHOWN) Hold-Open Arms are similar
SELECTION CHART
| STYLE | MODEL NO. | TYPE |
|---|---|---|
| WITH DRESS COVER | 5001-TP |
Regular Arm
Parallel Arm Hold-Open Arm Parallel Hold-Open Arm |
PARTS AND ACCESSORIES - 5001-TP
| Parts | Description | Part # | |
|---|---|---|---|
| Complete Arm Assembly | 501 |
NOTE:
Doors of unusual height or weight, or doors subject to severe wind or draft conditions, |
|
| Hold-Open Forearm | 522 |
or abusive usage, require one
or two more full turns of hex spring adjustment nut than shown on the Installation |
|
| Parallel Bracket for Regular Arm | 525 |
instructions.
SPECIFY: Closer Model or Part Number |
|
| Dress Cover | DC-5000 |
SPECIFY FINISH:
Al-Aluminum DU -Storefront Bronze |
|
| Thru Bolt & Grommet Nut (Set of 4 each) | TBGN-50 | ||
| Sex Nuts & Bolts | 18-SN |
