500 Switch Kits Pricelist
Open the original PDF document
View PDF500 Series MONITORING SWITCH KITS DK Distributor Discount Code APPLICATION • Activation of delayed egress locks • Electromagnetic Lock Release • Request-to-Exit • Alarm Shunt or Alarm Activation

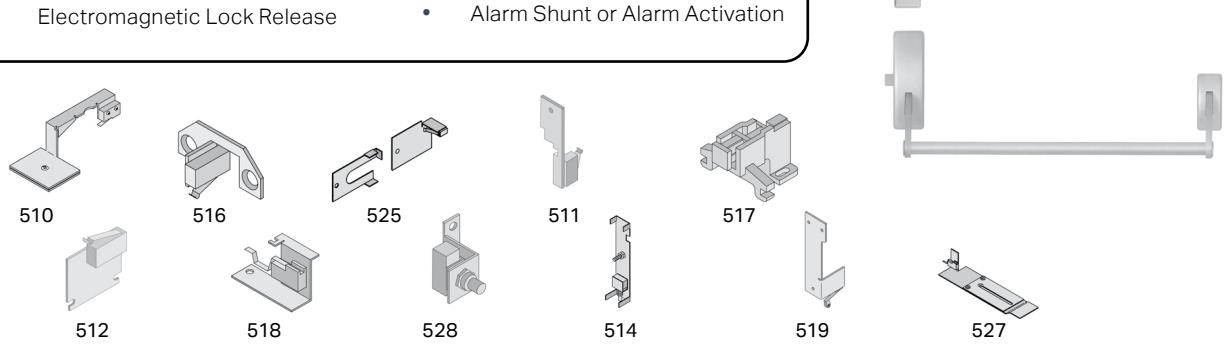

SWITCH KITS LIST
Switch Kits are field installed in the inactive hinge pad of an exit device to provide instantaneous release of EmLocks for egress. All kits include a SPDT Switch Assembly with wire leads. 5 Amp @ 30VDC.
| MODEL | MAKE & MODEL TO BE MODIFIED | |
|---|---|---|
| 510 |
Von Duprin 33, 35, 98, 99
(Panic Exit Devices) |
167.00 |
| 510-2 |
Von Duprin 33, 35, 98, 99 DPDT
(Panic Exit Devices) |
205.00 |
| 510-F |
Von Duprin 33, 35, 98, 99
(Fire Exit Devices) |
167.00 |
| 511 | Von Duprin 55 | 167.00 |
| 512 | Von Duprin 88 | 167.00 |
| 514 | Dor-O-Matic 990, 1090, 1990, 2090 | 167.00 |
| 515 | Sargent 9300, 9400, 9500 | 167.00 |
| 516 | Sargent 9600, 9700, 9800, 9900 | 167.00 |
| 517 | Adams Rite 8300, 8400, 8700, 8800 | 167.00 |
| 518 | Precision Series 1100 | 167.00 |
| 518A | Precision Apex Series (2100 - 2800) | 167.00 |
| 519 | Jackson 1095 | 167.00 |
| 519-2 | Jackson 1095 DPDT | 205.00 |
| 520 | Corbin 3000 | 167.00 |
| MODEL | MAKE & MODEL TO BE MODIFIED | |
|---|---|---|
| 521 | Corbin 7000 | 167.00 |
| 525 | Monarch 18 and 19 | 167.00 |
| 525-2 | Monarch 18 and 19 | 205.00 |
| 526 | Corbin ED8200 | 167.00 |
| 527 | Sargent 8800, Arrow S3800/S1250 | 167.00 |
| 527-2 | Sargent 8800 DPDT | 205.00 |
| 528 | Sargent 20/60 and Yale 2100 | 167.00 |
| 531 |
Yale 7000 (Dogging mechanism
required) Corbin 4000/5000 |
167.00 |
| 535 |
Kawneer Mid Panel Line Dor-O-Matic
1390 |
167.00 |
| 536 | Jackson 1295 | 167.00 |
| 539 | Cal Royal 9800 Series | 167.00 |
| 540 | Arrow 3000, 4000 | 167.00 |
| 542 | Hager 4700 | 167.00 |
| 590 | Dor-O-Matic 1690 | 167.00 |
NOTE: Consult factory for Exit Device Switch Kits not shown. Modification of any kind to a UL Listed device may void UL Listing.
