500 Pivot Template T356

Open the original PDF document

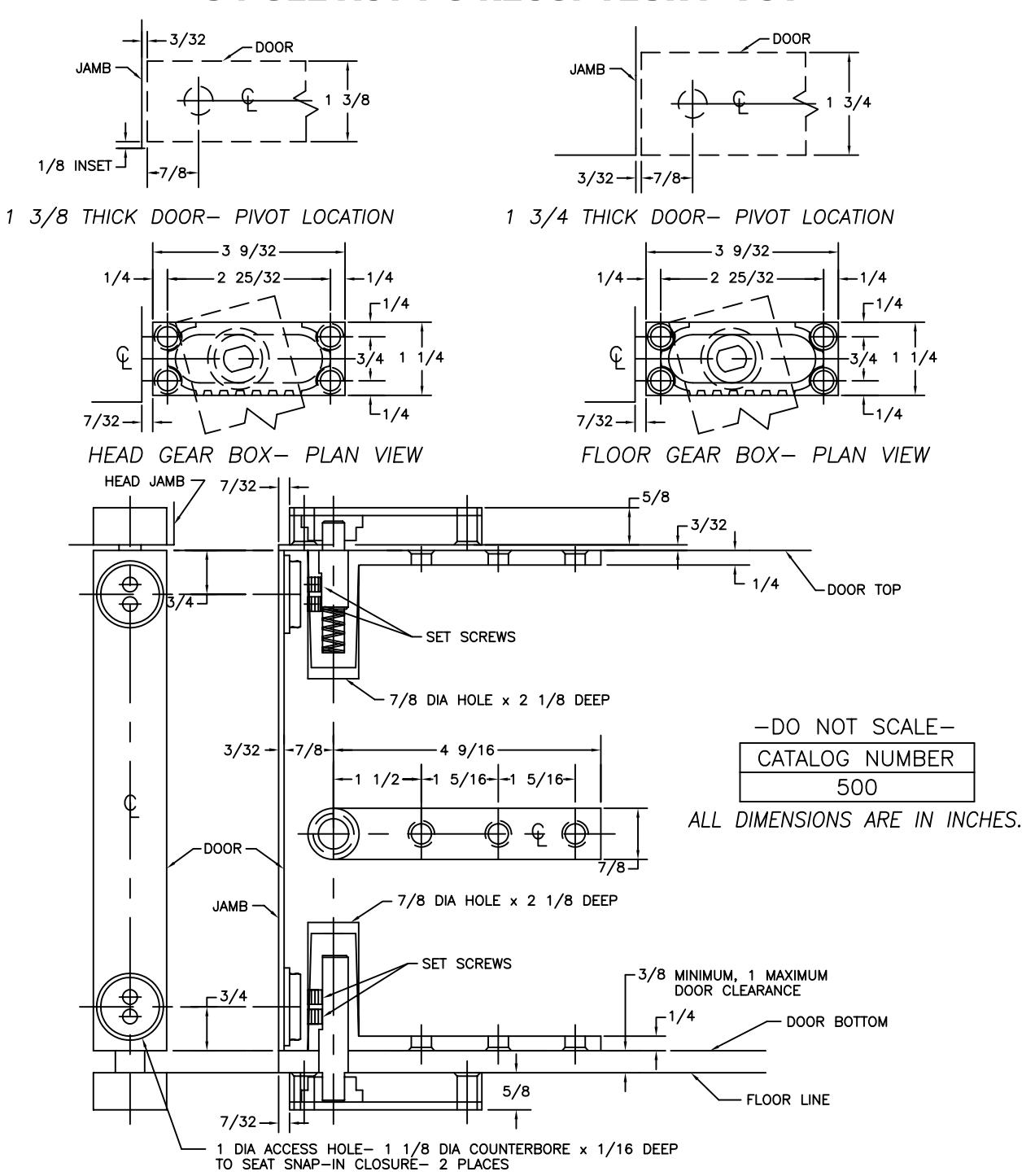

SINGLE ACTING RECONTEUR PIVOT

Machine Screw Size: Door Mount Pivots— $12-24 \times 1/2$ " F.H. Head Gear Box— $12-24 \times 7/8$ " F.H.

Wood Screw Size for door mount pivots and gear boxes— No. 12 x 1 1/4" F.H. Plastic cinch anchors furnished for masonry floors.

	HAGER RESERVES THE RIGHT TO MAKE DESIGN CHANGES WITHOUT NOTICE.				DESCRIPTION: 500 PIVOT TEMPLATE
HAGER COMPANIES 139 Victor St.	NO.	REVISION	BY	DATE	PART NO.
St. Louis, MO 63104 1-800-325-9995	2	ECO CT05041	RAM	\|11–02–05\|	T356_500 PIVOT
