4in t635

Template No. T635

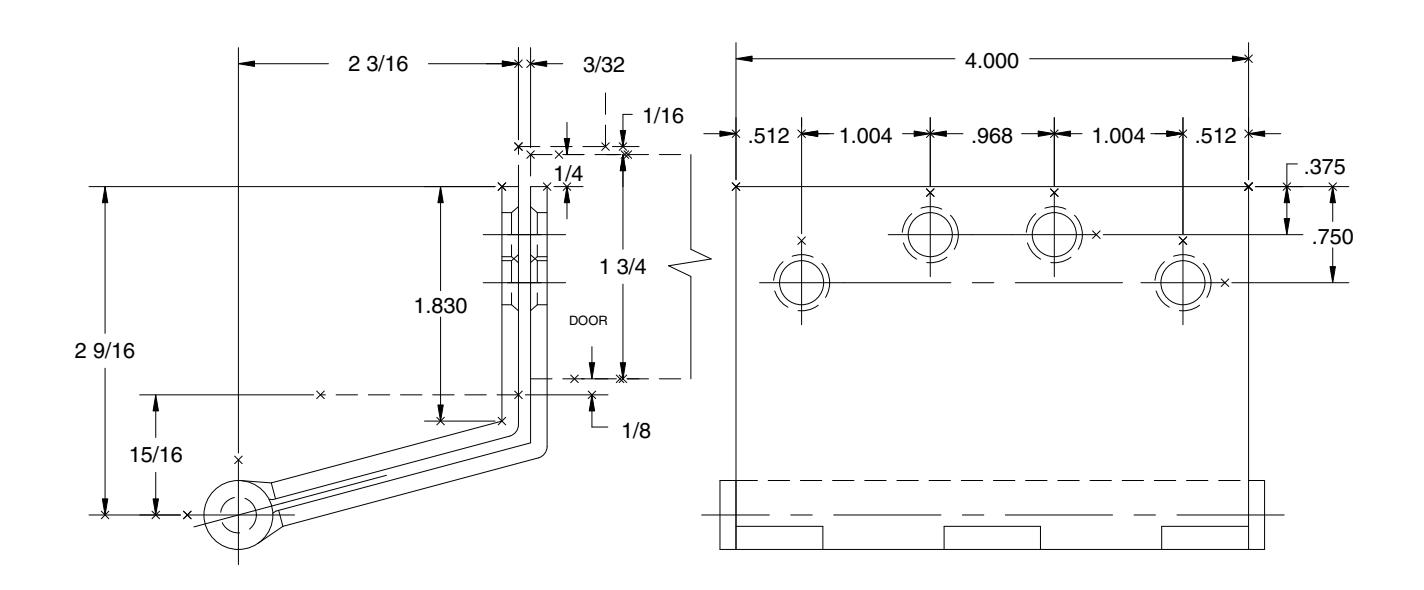

FULL MORTISE SWING CLEAR TEMPLATE HINGES

No REVISION BY DATE 1 FOR COMPUTER RAM 8-22-03

SIZE: 4"

FOR SQUARE EDGE DOORS

-DO NOT SCALE-

CATALOG NUMBER	NACTAL
STEEL HINGES	METAL GAUGE
1260	.129

Machine Screw Size- 12-24 x 1/2" F.H. Wood Screw Size- 1 1/4" x 12 F.H.

Designed to swing doors completely clear of the opening when door is opened 95°. When opened 90°, door projects 3/16" past stop of jamb.

NOTE: This template is used for square edge doors only. Recommended for doors not to exceed 60 lbs., 3'-0" x 7'-0".

NOTE: This hinge alters the normal pivot point of door. For door closers, friction or overhead door holders to be used in conjunction with this hinge, consult manufacturer of the device for application details.

Hospital type template hinges conform to the above screw size and location. They are designated by "HT" to catalog number.

Hager template hinges are made in gauge and with screw holes located to conform to ANSI-A156.7.

HAGER RESERVES THE RIGHT TO MAKE DESIGN CHANGES WITHOUT NOTICE. CALL HAGER ENGINEERING AT 1-800-325-9995 FOR LATEST REVISION DATE OF TEMPLATE.

HAGER COMPANIES 139 VICTOR STREET P.O. BOX 12300 ST. LOUIS, MISSOURI 63157-0300
