4936 and 4937 Installation Instructions – S-ED00925
Open the original PDF document
View PDF4936 & 4937 EXTENSION ROD INSTRUCTIONS FOR USE WITH THE 4500 AND 4700 SVR EXIT DEVICES
STEP 4
Rod Guides". in the 4500
Instructions.
Rod Guide
An extra Rod Guide is provided
or 4700 Exit Device Installation
Rod Guide (Provided with
exit device)
with the extension rod kit. Install once you reach STEP 13 "Install
STEP 1

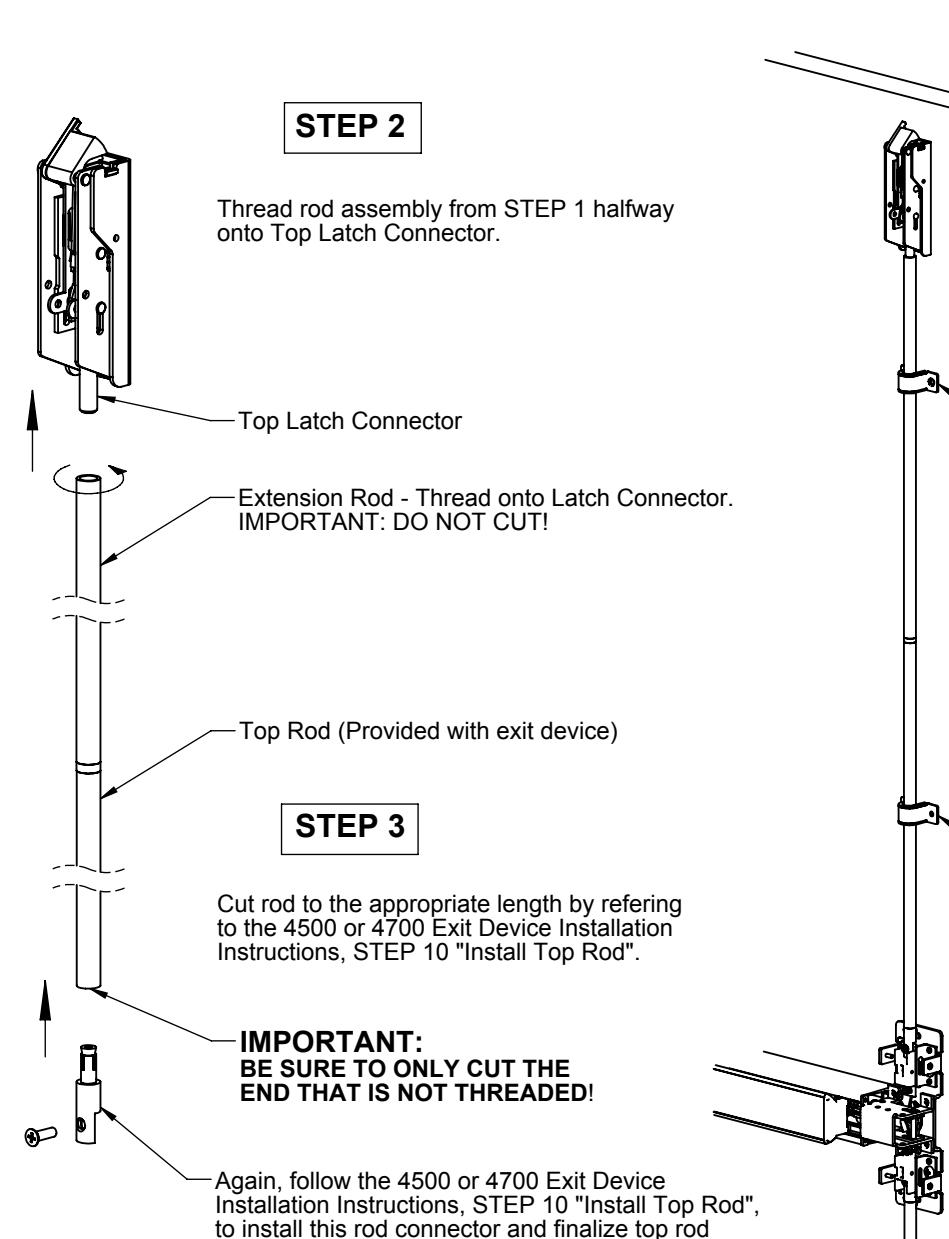

Attach extension rod and top rod (provided with exit device) by threading the rods onto the extension rod connector.
Extension Rod (Both ends threaded)
-Extension Rod Connector
Top Rod (Provided with exit device) This end is not threaded.
| Part No. | Description |
|---|---|
| 4936 | 24 inch Extension Rod Kit |
| 4937 | 36 inch Extension Rod Kit |
Possible height combinations with exit devices:
24" ext. rod + 7' device = 8' door
36" ext. rod + 7' device = 10' door *
24" ext. rod + 8' device = 10' door *
36" ext. rod + 8' device = 11' door *
* Can also be cut down to accommodate 9' door.
DRAWING NO: S-ED00925 REV: - SHEET 1 OF 1 HAGER COMPANIES 139 Victor Street, St. Louis, MO 63104 - (800) 325-9995 - Fax (800) 782-0149
installation.
