For Handicap Access, Automatic Door

Activation & Request-to-Exit Applications

  • Door Opener Activation
  • Automatic Door Activation
  • Access Control Request-to-Exit (RTE)
  • Door Sequencer Activation

SPECIFICATIONS
Mounting
Plate 		Heavy Duty 1/8" (3.2mm) mounting plate
Faceplate Heavy 18 Gauge (1.02mm), 630/US32D Satin Stainless Steel Standard
Legends Bold debossing or engraving with black, blue or white infill
Contacts SPDT or DPDT, 15 Amps @ 125/250VAC; UL 1054, CSA Listed
Depth [Narrow & (1) Gang] SPDT-7/8" deep, DPDT-1-3/8" deep,
[4 ½", & 6" square/ round] SPDT-3/4" deep, DPDT-1-5/32

  • Pressing any part of the push plate (2 ¾" x 4 ½") causes switch actuation
  • Recessed, Surface Box or Bollard Mount Depth: SPDT 7/8" deep; DPDT 1 ½" deep

SPDT Model Description DPDT Model Description
482O2U Push to Open, black infill 83.00 484O2U Push to Open, black infill 110.00
482A2U Push to Open, blue infill 83.00 484A2U
Push to Open, blue infill 		110.00
480-2SB Surface mount box, 2 3/4" x 4 1/2" x 1 5/8" O.D. 31.00

  • Pressing any part of the push plates 4" ½" x 4 ½" active area causes switch actuation
  • 1 Gang or 2 gang recessed or Surface Box Mount Depth: SPDT 7/8" deep; DPDT 1 ½" deep

SPDT Model Description DPDT Model Description
482O4U Push to Open, black infill 89.00 484O4U Push to Open, black infil 116.00
482A4U Push to Open, blue infill 89.00 484A4U  Push to Open, blue infill 116.00
480-4FB Square Flush Recessed box, 6 3/4" x 6 3/4" x 2-1/8" O.D. 67.00
480-4SBB Surface mount box, 4-1/2" x 4-1/2" x 1 3/4" O.D. with Battery compartment for
wireless 		42.00
480-4SB Surface mount box, tmper resistant, 5-1/2" x 5-1/2" x 2-1/8" O.D. 67.00
480-4SE 3-sided stainless shroud for exterior applications, 4-11/16" x 4-7/8" x 12" 41.00

6" x 6" Square Push Plate Switch

  • Pressing any part of the push plates 6" x 6" active area causes switch actuation
  • 1 Gang or 2 gang recessed or Surface Box Mount Depth: SPDT 7/8" deep; DPDT 1 ½" deep

SPDT Model Description DPDT Model Description
482O6U Push to Open, black infil 96.00 484O6U Push to Open, black infil 122.00
482A6U  Push to Open, blue infill 96.00 484A6U  Push to Open, blue infill 122.00
480-6SBB Surface mount box, 2-gang Battery Compartment, 4 1/2" x 4 1/2" x 1 3/4" O.D. 42.00

4 ½" Round Push Plate Switch

  • Pressing any part of the push plates 4" ½ active area causes switch actuation
  • 1 Gang recessed or Surface Box Mount Depth: SPDT 7/8" deep; DPDT 1 ½" deep

SPDT Model Description DPDT Model Description
482O4RU Push to Open, black infil 91.00 484O4RU Push to Open, black infil 118.00
482A4RU  Push to Open, blue infill 91.00 484A4RU  Push to Open, blue infill 118.00
480-4RSB Surface box, 5" Dia., 2 1/8" O.D. 60.00 480-4RFB Black Flush Escutcheon, 6 3/8"
overall diameter with trim ring 		67.00
480-4RG 4" round gasket for 4RSB or
4RFB box 		17.00

6" Round Push Plate Switch

  • Pressing any part of the push plates 6" active area causes switch actuation
  • 1 Gang or 2 gang recessed or Surface Box Mount Depth: SPDT 7/8" deep; DPDT 1 ½" deep

SPDT Model Description DPDT Model Description
482O6RU Push to Open, black infil 96.00 484O6RU Push to Open, black infil 122.00
482A6RU Push to Open, blue infill 96.00 484A6RU
Push to Open, blue infill 		122.00
480-6RSB Surface box Round,
6 7/16" Dia., 2 1/8" Depth 		60.00 480-6RFB Recessed Flush Escutcheon, 7
3/4" overall diameter with trim ring 		67.00
480-6RG 6" round gasket for 6RSB
or 6RFB 		18.00

480 Series Push Plate Switches - HDPE (High Density Polyethylene) CK LIST Distributor

Discount Code

4 ½" x 4 ½" Square Push Plate Switches

  • Pressing any part of the push plates 4" ½" x 4 ½" active area causes switch actuation
  • 1 Gang recessed or Surface Box Mount Depth: SPDT 3/4" min; DPDT 1-5/32" min

SPDT Model Description
482A4SPH Push to Open, white infill on blue HDPE, SPDT 156.00
484A4SPH Push to Open, white infill on blue HDPE, DPDT 156.00
480-4FB Square Flush Recessed box, 1-gang, 6 3/4" x 6 3/4" x 1 7/8" O.D. 67.00
480-4SBB Surface mount box, 4-1/2" x 4-1/2" x 1 3/4" O.D. with Battery compartment for wireless 35.00
480-4SB Surface mount box, tamper resistant, 5-1/2" x 5-1/2" x 2-1/8" O.D. 67.00

6" Round Push Plate Switch

  • Pressing any part of the push plates 6" active area causes switch actuation
  • 1 Gang or 2 gang recessed or Surface Box Mount Depth: SPDT 7/8" deep; DPDT 1-5/32"

SPDT Model Description
482A6RPH Push to Open, white infil on blue HDPE, SPDT 187.00
484A6RPH Push to Open, white infil on blue HDPE, DPDT 187.00
480-6RSB Surface box Round, 6 7/16" Dia., 2 1/8" Depth (not shown) 60.00
480-6RFB Recessed Flush Escutcheon, 7 3/4" overall diameter with trim ring 67.00
480-6RG 6" round gasket for 6RSB or 6RFB 18.00

482A4VPU 482A4VWPB

Discount Code

•
• 		4 ½" x 4 ½" Square Push Plate Switches
Pressing any part of the split push plates active area causes switch actuation
2 Gang Wall-mount or Surface Box Mount
•
Depth: 2x SPDT 7/8" deep
SPDT Model Description
482A4VWU  Arrow (left/right), blue infill 405.00
482A4VWPU  Arrow (left/right) Push to Open, blue infill 405.00
482A4VPU Arrow (left/right) Push to Open, black infill 405.00
482A4VWPB  Arrow (left/right) Push to Open, white infill on blue 468.00
35.00

480-4SBB Surface mount box, 4-1/2" x 4-1/2" x 1 3/4" O.D. with Battery compartment for
wireless 		35.00

Push Plates, Actuators & Touch Panels

Applications

  • Wireless & Hardwire
  • ADA Ingress/R.E.X/Egress Door Opener Activation
  • Access Control Request-to-Exit (REX)
  • Door Opener Activation
  • Automatic Door Activation or Lock Release
  • Automatic Door & Exit Device Sequencer Activation

can be used with wireless transmitter and receiver

Features

  • Surface wall mount or bollard mount
  • Sleek Architectural profile
  • No square edges to snag, wide sloping sides deflects impact movement naturally to activate column
  • Deflects impact from wheeled carts and conveyances
  • Impact & Vandal resistant design, inhibits prying, tampering
  • Weather Resistant, no gaps for water or ice penetration
  • Choice of SPDT or DPDT, 15 Amps @ 125/250VAC

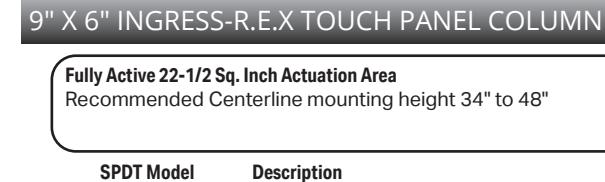

482AA9

Material: Sturdy 1/8" extrusion with architectural finish Overall Size: 9" h x 6" w x 1-1/2" d (229 x 152 x 38mm) Active Area: 9" h x 2-1/2" w (229 x 63.5mm)

Description DPDT Model Description 309.00 484AA9 336.00 5 Push to Open 5 Push to Open

SPECIFY FINISH Add to List

V 628 Aluminum (standard), blue infill N/C X 613 Dark Bronze, white infill 26.00

36" X 6" INGRESS-R.E.X TOUCH PANEL COLUMN

Fully Active 90 Sq. Inch Actuation Area Material: Sturdy 1/8" extrusion with architectural finish Recommended mounting height is 3" from floor Overall Size: 36" h x 6" w x 1-1/2" d (914 x 152 x 38mm) Active Area: 36" h x 2-1/2" w (914 x 63.5mm)

DPDT Model SPDT Model Description Description 482AA36 433.00 484AA36 460.00 5 Push to Open 5 Push to Open

SPECIFY FINISH Add to List

26.00 V 628 Aluminum (standard), blue infill X 613 Dark Bronze, white infill

400 Series Wireless Transmitter and Receiver

List

List

For Remote Control Versatility for Touch Panel Column and Push Plate Switches

433MHz Micro Transmitter

Requires a non-metalic surface box or standard bollard cap (non-metalic). Works with 400RC433

Pre-Wired for quick installation

Antenna magnifies signal

Voltage Input: 9V Battery (included) Trigger Input: Momentary, N.O.Dry Contact

Temperature: -20F — 100F

Dimensions: 1-9/64" x 15/16" x 7/32" (29 x 49 x 6mm)

Description

400W1-433 433MHz Micro Transmitter

141.00

433MHz 1 Channel Nano Receiver

Designed to control automatic closing and anti-burglar systems. Works with 400W1-433.

Carrier Frequency: 433.92 MHz Power Supply: 12/24 VAC/DC Relay Numbers: 1 Contacts: C-NO

Temperature: -4F — 158F Dimensions: 1-1/4" x 2" x 3/4" Deep (32 x 51 x 19mm)

Model Description

400RC433 433MHz 1 Channel Reciever

174.00
