View PDF480 Series Wireless Push Plate Switch Kit
Designed to control automatic door or electrified locking hardware with wireless Push Plate Switch access. Each Kit contains two 4-1/2" Push Plate Switches (round or square, 480 series,) two matching surface mount back boxes (round or square, 480 series,) two wireless transmitters (400W1-433, 9V Batteries included) and one wireless nano receiver (400RC433).
- Pressing Any Part of the Push Plates 4 ½" Active Area Causes Switch Actuation
- Surface Box Mount
- Transmitter: Pre-Wired for Quick Installation
- Transmitter Antenna Magnifies Signal
- Receiver Designed to Control Automatic Closing and Anti-Burglar Systems

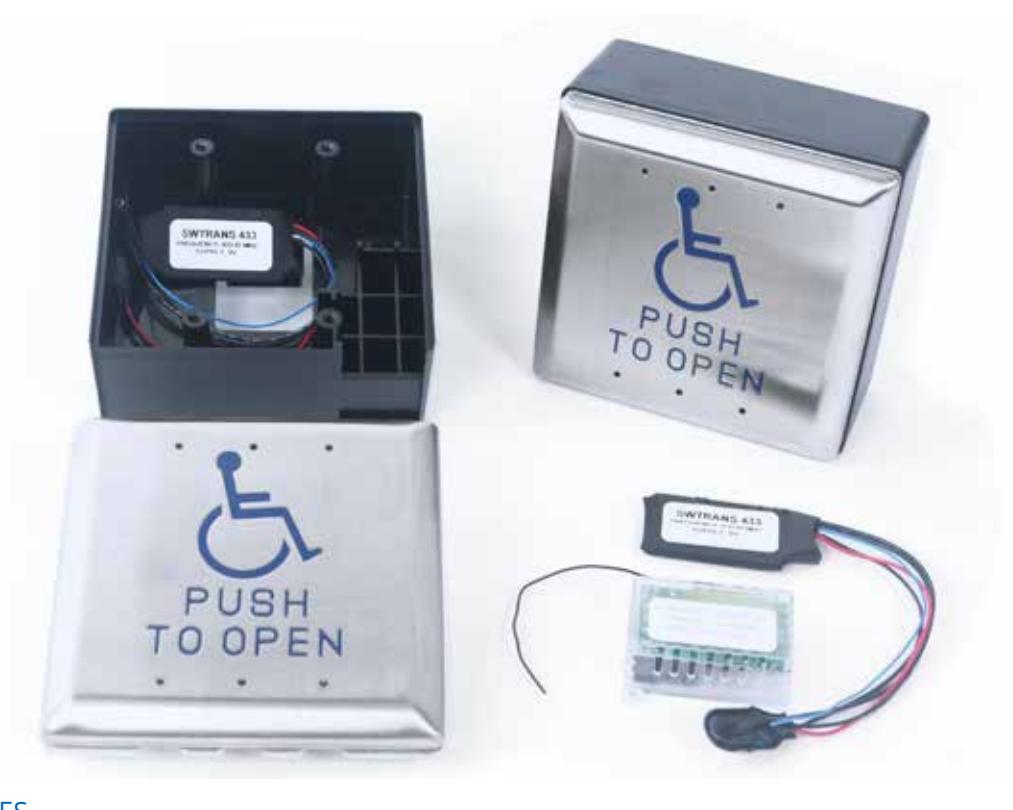

482S-KIT
Wireless Push Plate Switch Kit - SQUARE Switches

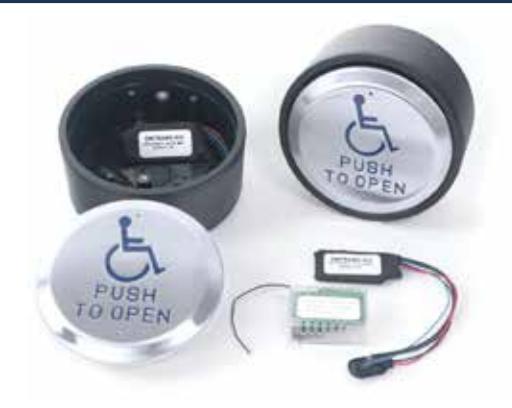

482R-KIT
1
Wireless Push Plate Switch Kit - ROUND Switches
WWW.SDCSECURITY.COM • SECURITY DOOR CONTROLS
SPECIFICATIONS Push Plate Switches
| Mounting Plate | Heavy Duty 1/8" Mounting Plate |
|---|---|
| Faceplate |
Heavy 18 Gauge, 630/US32D Satin Stainless
Steel Standard |
| Legends | Bold Debossing or Engraving with Blue Infill |
| Contacts |
SPDT, 15 Amps @ 125/250VAC;
UL 1054, CSA Listed |
| Depth | 4-1/2"" Square/ Round SPDT-3/4" deep |
| Infill | Blue, Ability Symbol, PUSH TO OPEN |
SPECIFICATIONS 400W1-433
| Voltage Input | 9V Battery (included) |
|---|---|
| Trigger Input | Momentary, N.O.Dry Contact |
| Temperature | -20°F — 100°F |
| Dimensions | 1-9/64" x 15/16" x 7/32" |
SPECIFICATIONS 400RC433
| Carrier Frequency | 433.92 MHz |
|---|---|
| Power Supply | 12/24 VAC/DC (Jumper select) |
| Relay Numbers | 1 |
| Contacts | C-NO |
| Temperature | -4°F — 158°F |
| Dimensions | 1-1/4" x2" x 3/4" Deep |
