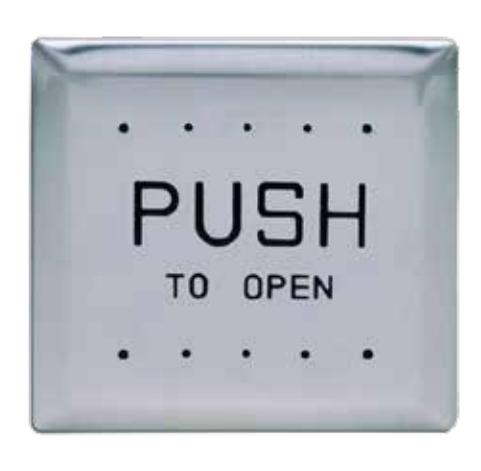

1-11/16" Narrow Mullion Push Plate Switch

Recessed, Surface Box or Bollard Mount

FEATURES

  • Designed to flush-mount directly into narrow jamb
  • Requires narrow mullion prep
  • 4 1/2" x 1 11/16"
  • Depth: SPDT 7/8" deep DPDT 1 1/2" deep

48201U Push to Open, black infill, SPDT

482A1U 🔥 Push to Open, blue infill, SPDT

48401U Push to Open, black infill, DPDT

484A1U & Push to Open, blue infill, DPDT

Narrow Mullion Surface Box, 1-3/4" x 4-9/16" x 1-3/4" O.D. (Recomended for SPDT or hardwired DPDT)

2¾" x 4½" Single (1) Gang Push Plate Switch

Surface Box or Bollard Mount

FEATURES

  • Pressing any part of the push plate (2 3/4" x 4 1/2") causes switch actuation
  • Surface Box or Bollard Mount
  • Depth: SPDT 7/8" deep;

DPDT - 1 1/2" deep

48202U Push to Open, black infill, SPDT

482A2U & Push to Open, blue infill, SPDT

48402U Push to Open, black infill, DPDT484A2U Push to Open, blue infill, DPDT

ACCESSORIES

Surface mount box 2 3/4" x 4 1/2" x 1 5/8" O.D.

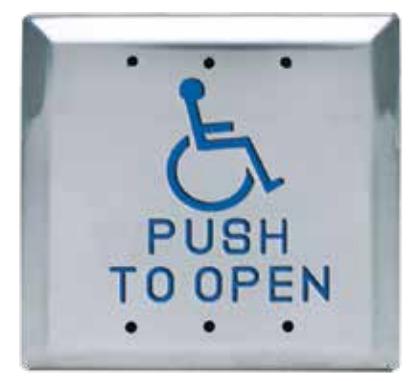

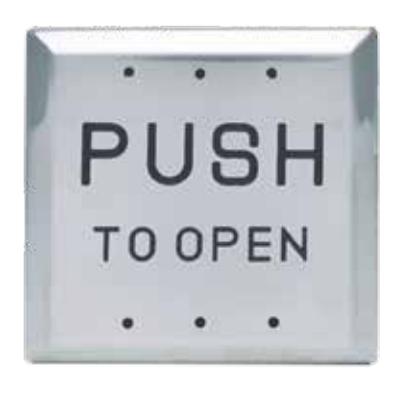

4 1/2" x 4 1/2" Square Push Plate Switches

Recessed, Surface Box or Bollard Mount

FEATURES

actuation

Box Mount

480-4FB Square Flush Recessed box, 6 3/4" x 6 3/4" x 2 1/8" O.D.

Pressing any part of the push plates 4 ½" x 4 ½" active area causes switch

1 Gang or 2 gang recessed or Surface

Depth: SPDT 7/8" deep; DPDT 1 1/2" deep

480-4SBB Surface mount box,

4-1/2" x 4-1/2" x 1 3/4" O.D. with Battery compartment for wireless

480-4SB Surface mount box, tamper resistant, 5 1/2" x 5 1/2" x 2 1/8" O.D.

480-4SE 3-sided stainless shrout for exterior applications, 4-11/16" x 4-7/8" x 1/2"

48204U Push to Open, black infill, SPDT

482A4U & Push to Open, blue infill, SPDT

48404U Push to Open, black infill, DPDT 484A4U 5 Push to Open, blue infill, DPDT

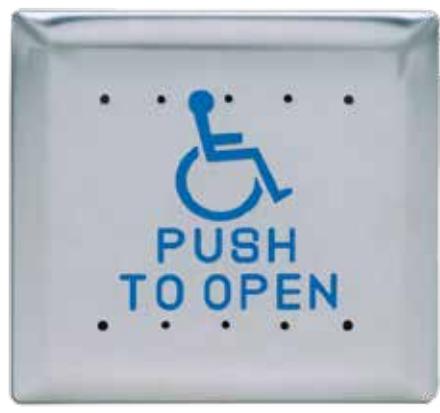

6" x 6" Square Push Plate Switches

Recessed, Surface Box or Bollard Mount

  • Pressing any part of the push plates 6" x 6" active area causes switch actuation
  • 1 Gang or 2 gang recessed or 45 Box or Surface Box Mount
  • Depth: SPDT 7/8" deep; DPDT 1 1/2" deep

48206U Push to Open, black infill, SPDT

482A6U & Push to Open, blue infill, SPDT

48406U Push to Open, black infill, DPDT

484A6U & Push to Open, blue infill, DPDT

= can be used with wireless transmitter and receiver

480-6SBB

Surface mount box, 2-gang Battery Compartment, 4 1/2" x 4 1/2" x 1 3/4" O.D.

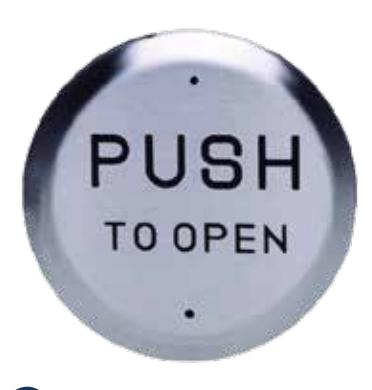

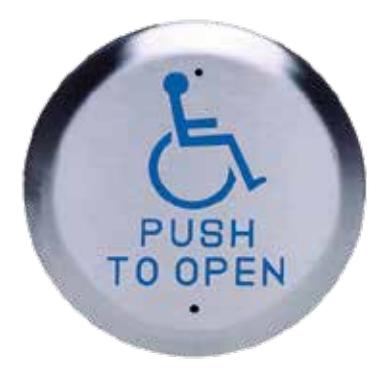

4 1/2" Round Push Plate Switches

Recessed, Surface Box or Bollard Mount

  • Pressing any part of the push plates 4" 1/2 active area causes switch actuation
  • 1 Gang recessed or Surface Box Mount
  • Depth: SPDT 7/8" deep; DPDT 1 1/2" deep

48204RU Push to Open, black infill, SPDT

5. Push to Open, blue infill, SPDT

48404RU Push to Open, black infill, DPDT

484A4RU & Push to Open, blue infill, DPDT

480-4RSB Surface box, 5" Dia., 2 1/8" O.D.

(not shown)

480-4RG 4" round gasket for 4RSB or

4RFB box

480-4RFB Recessed Mount Box, 6 3/8"

overall diameter with trim ring

480-4RRB Surface Escutcheon, 7 7/8" Dia.,

1 9/16" overall height

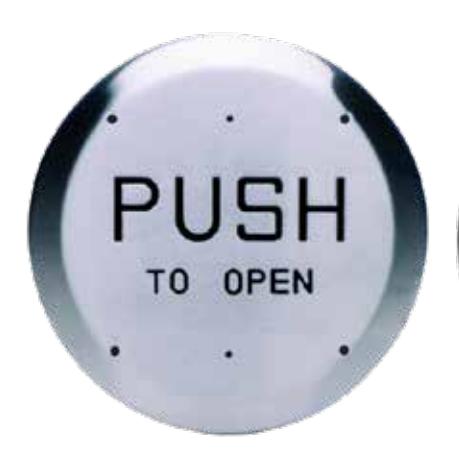

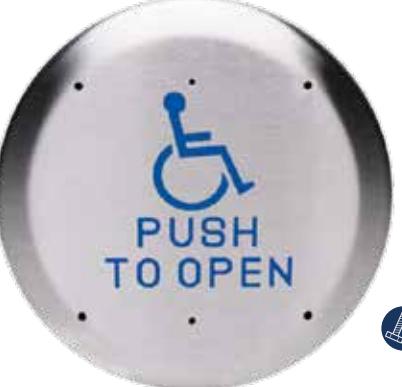

6" Round Push Plate Switches

Recessed, Surface Box or Bollard Mount

FEATURES

  • Pressing any part of the push plates 6" active area causes switch actuation
  • 1 Gang or 2 gang recessed or Surface Box Mount
  • Depth: SPDT 7/8" deep;

DPDT 1 1/2" deep

ACCESSORIES

480-6RSB Surface box Round.

6 7/16" Dia., 2 1/8" depth

(not shown)

480-6RG 6" round gasket for 6RSB or 6RFB

Recessed Flush Escutcheon, 480-6RFB

7 3/4" overall diameter with trim ring

48206RU Push to Open, black infill, SPDT

5. Push to Open, blue infill, SPDT 482A6RU 48406RU Push to Open, black infill, DPDT

5 Push to Open, blue infill, DPDT

= can be used with wireless transmitter and receiver

484A6RU

4 1/2" Square HDPE Push Plate Switches

Recessed, Surface Box or Bollard Mount

482A4SPH & Push to Open, white infill on blue back, HDPE, SPDT

484A4SPH & Push to Open, white infill on blue back, HDPE, DPDT

  • Pressing any part of the push plates 4" active area causes switch actuation
  • 1 Gang recessed or Surface Box Mount
  • Depth: SPDT 3/4" min DPDT 1 5/32 min

480-4FB Square Flush Recessed box,

6 3/4" x 6 3/4" x 2 1/8" O.D.

480-4SBB Surface mount box,

4-1/2" x 4-1/2" x 1 3/4" O.D. with Battery compartment for wireless

480-4SB Surface mount box, tamper resistant, 5 1/2" x 5 1/2" x 2 1/8" O.D.

3-sided stainless shrout for exterior applications, 4-11/16" x 4-7/8" x 1/2"

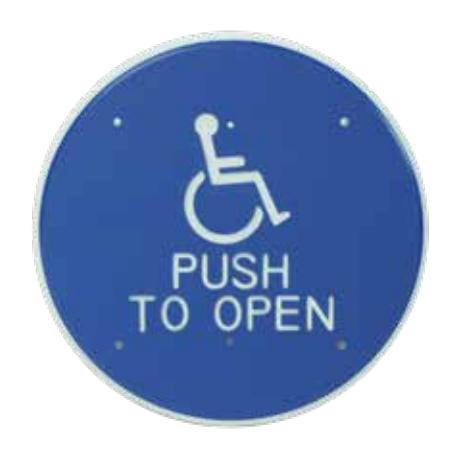

6" Round HDPE Push Plate Switches

Recessed, Surface Box or Bollard Mount

482A6RPH & Push to Open, white infill on blue back, HDPE, SPDT 484A6RPH & Push to Open, white infill on blue back, HDPE, DPDT

  • Pressing any part of the push plates 6" active area causes switch actuation
  • 1 Gang recessed or Surface Box Mount
  • SPDT 7/8" min Depth:

DPDT 1 1/2" min

480-6RSB Surface box Round, 6 7/16" Dia., 2 1/8" O.D.

(not shown)

480-6RG 6" round gasket for 6RSB or 6RFB 480-6RFB Recessed Flush Escutcheon.

7 3/4" overall diameter with trim ring

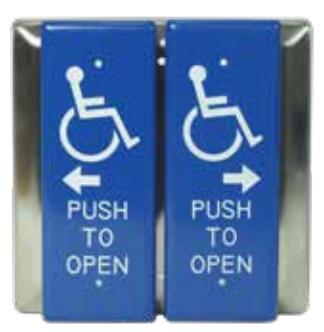

4" Square Vestibule Push Plate Switches

Recessed, Surface Box or Bollard Mount

484A4VWU

484A4VPU

482A4VWPB

  • Pressing any part of the push plates 4" split active area causes switch actuation
  • 1 Gang recessed or Surface Box Mount
  • Depth: SPDT 7/8" deep

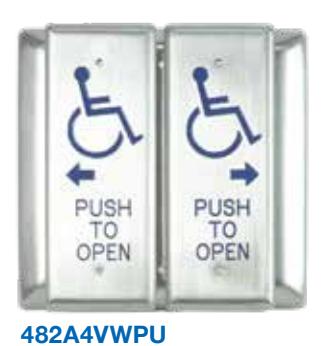

482A4VWPU S Push to Open, L/R Arrow, blue infill, Vestibule Split Buttons, SPDT

482A4VWU b , L/R Arrow, blue infill, Vestibule Split

Buttons, SPDT

482A4VPU L / R Arrow, Push to Open, black infill, Vestibule Split Buttons, SPDT

482A4VWPB Ship Push to Open, L/R Arrow, white infill on blue back, Vestibule Split Buttons,

SPDT

480-4SBB Surface mount box, 4-1/2" x 4-1/2" x 1 3/4" O.D. with Battery compartment for wireless

Ingress-R.E.X Touch Panel Column

Surface or Bollard Mount

  • 9" x 6" Ingress-R.E.X Touch Panel Column
  • Fully Active 22-1/2 Sq. Inch Actuation Area
  • MODELS MODELS

482AA9 & Push to Open, blue infill, SPDT

SPECIFICATIONS

Centerline
Mounting Height 		Recommended 34" to 48"
Material Sturdy 1/8" extrusion with architectural finish
Finish
  • V 628 Aluminum (standard)
  • X 710 Dark Anodized Aluminum, white infill
Overall Size 9" H x 6" W x 1-1/2" D
Active Area 9" H x 2-1/2" W

  • 36" x 6" Ingress-R.E.X Touch Panel Column Fully Active 90 Sq. Inch Actuation Area
  • Recommended mounting height is 3" from floor
  • MODELS
    • 482AA36 Sharper Push to Open, blue infill, SPDT
    • 484AA36

SPECIFICATIONS

Material Sturdy 1/8" extrusion with architectural finish
Finish
  • V 628 Aluminum (standard)
  • X 710 Dark Anodized Aluminum, white infill
Overall Size 36" H x 6" W x 1-1/2" D
Active Area 36" H x 2-1/2" W

= can be used with wireless transmitter and receiver

Wireless Transmitter & Receiver

for Wireless ADA Applications

For Remote Control Versatility for Touch Panel Column and Push Plate Switches. 75 foot wireless range. less barriers.

433MHz Micro Transmitter

FEATURES

  • Requires a non-metallic surface box or standard bollard cap (non-metallic)
  • Pre-Wired for quick installation
  • Antenna magnifies signal
  • Works with 400RC433
  • MODELS 400W1-433 433MHz Micro Transmitter

SPECIFICATIONS

Voltage Input 9V Battery (included)
Trigger Input Momentary, N.O.Dry Contact
Temperature -20F — 100F
Dimensions 1-9/64" x 15/16" x 7/32"
Dimensions 1-9/64" x 15/16" x 7/32"

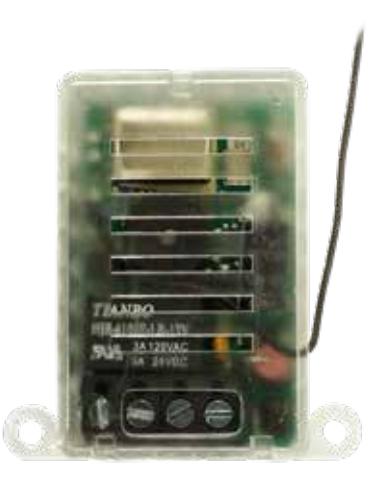

433MHz 1 Channel Nano Receiver

Designed to control automatic door or electrified locking harware with code-hopping technology for increased security.

FEATURES

Works with 400W1-433

400RC433 433MHz 1 Channel Receiver

SPECIFICATIONS

Carrier Frequency 433.92 MHz
Relay Numbers 1
Temperature -4F — 158F
Power Supply 12/24 VAC/DC
Contacts C-NO
Dimensions 1-1/4" x2" x 3/4" Deep

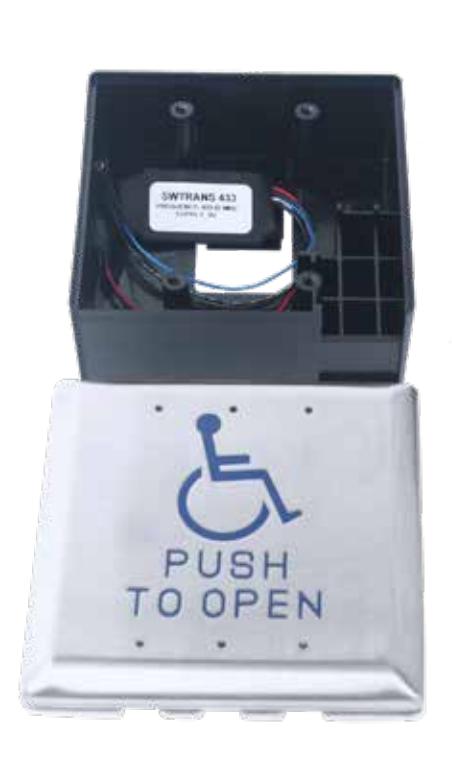

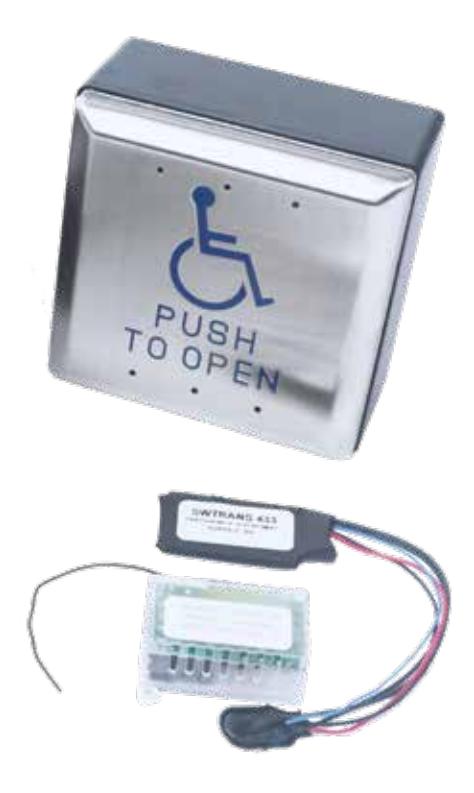

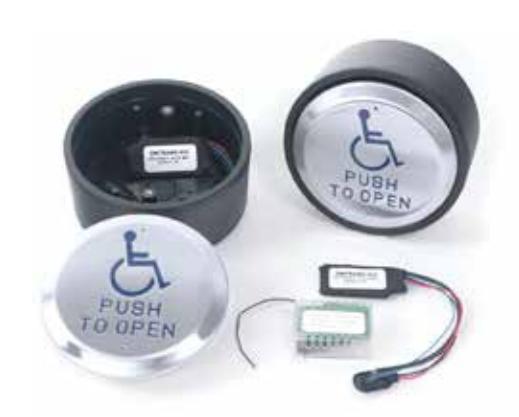

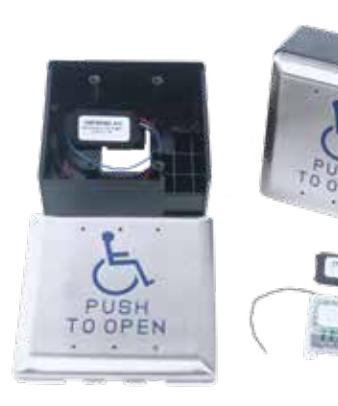

480 Series Wireless Push Plate Switch Kit

Designed to control automatic door or electrified locking hardware with wireless Push Plate Switch access. Each Kit contains two 4-1/2" Push Plate Switches (round or square, 480 series,) two matching surface mount back boxes (round or square, 480 series,) two wireless transmitters (400W1-433, 9V Batteries included) and one wireless nano receiver (400RC433).

  • Pressing Any Part of the Push Plates 4 ½" Active Area Causes Switch Actuation
  • Surface Box Mount
  • Transmitter: Pre-Wired for Quick Installation
  • Transmitter Antenna Magnifies Signal
  • Receiver Designed to Control Automatic Closing and Anti-Burglar Systems

482S-KIT Wireless Push Plate Switch Kit - SQUARE Switches

482R-KIT Wireless Push Plate Switch Kit - ROUND Switches

SPECIFICATIONS Push Plate Switches

Mounting Plate Heavy Duty 1/8" Mounting Plate
Faceplate Heavy 18 Gauge, 630/US32D Satin Stainless
Steel Standard
Legends Bold Debossing or Engraving with Blue Infill
Contacts SPDT, 15 Amps @ 125/250VAC;
UL 1054, CSA Listed
Depth 4-1/2"" Square/ Round SPDT-3/4" deep
Infill Blue, Ability Symbol, PUSH TO OPEN

SPECIFICATIONS 400W1-433

Voltage Input 9V Battery (included)
Trigger Input Momentary, N.O.Dry Contact
Temperature -20°F — 100°F
Dimensions 1-9/64" x 15/16" x 7/32"

SPECIFICATIONS 400RC433

Carrier Fre
quency 		433.92 MHz
Power Supply 12/24 VAC/DC (Jumper select)
Relay Numbers 1
Contacts C-NO
Temperature -4°F — 158°F
Dimensions 1-1/4" x2" x 3/4" Deep
