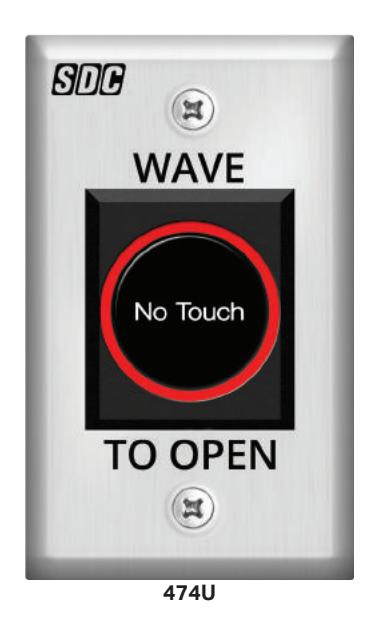

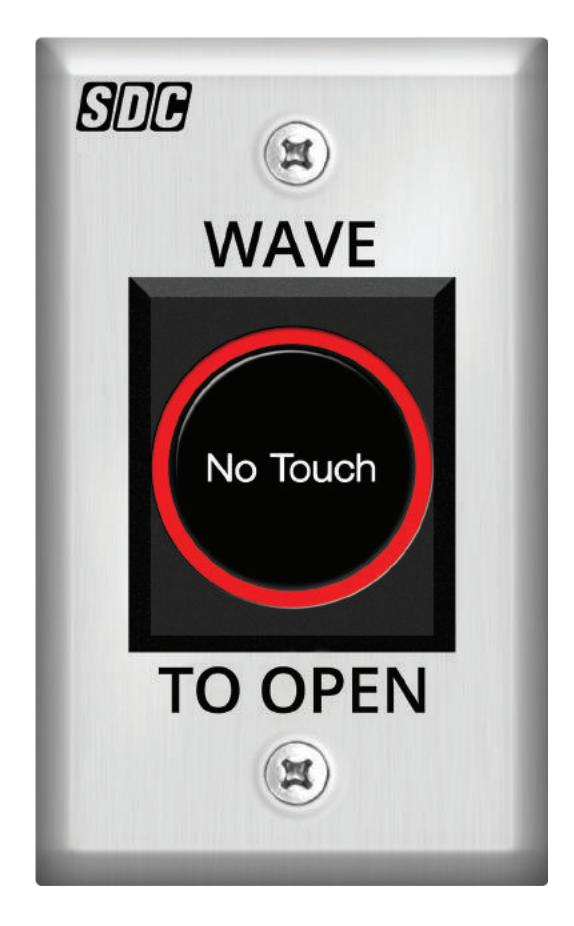

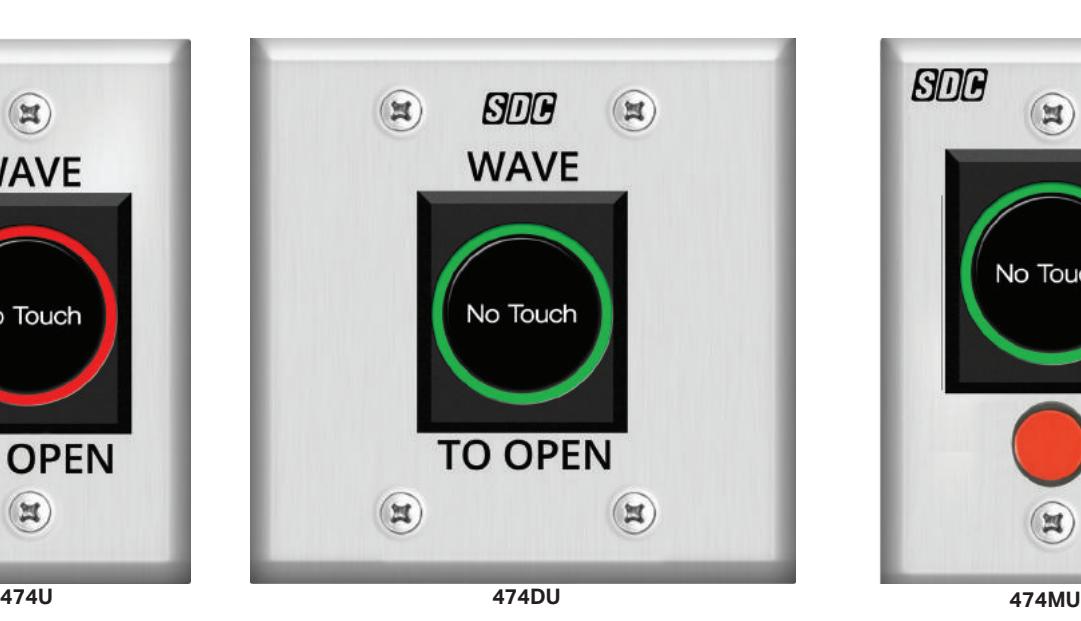

View PDF474 No Touch Switch Series Wave-To-Open Switch
474 Touchless Switches use Active IR Sensor Technology . A simple wave of the hand in front of the 474 Touchless Switch activates the switch to control electric locks/strikes, magnetic locks, or automatic door operators for entry or egress. 474 Touchless Switches come standard with an adjustable 2"-7" activation read range.
The Dual LED , illuminated sensor , clearly indicates status. The Red LED indicates inactive status, which changes to a temporary Green LED state to indicate activation. Ideal for but not limited to facilities that require contamination control. 474 Touchless Switches help reduce the spread of infection and diseases in any application.
- WAVE-TO-OPEN Activation
- Active IR Sensor Technology
- Adjustable Sensing Range 2"-7"
- Illuminated Dual LED Sensor (RED/GREEN)
- Mounted on Durable Stainless Steel Faceplate
- Supplied with 8" Wire Harness for Easy Installation
SPECIFICATIONS
| Input | 36mA (Standby); 45mA (Active) @ 12/24VDC |
| Output | SPDT 3 Amp Dry Contact Resistive |

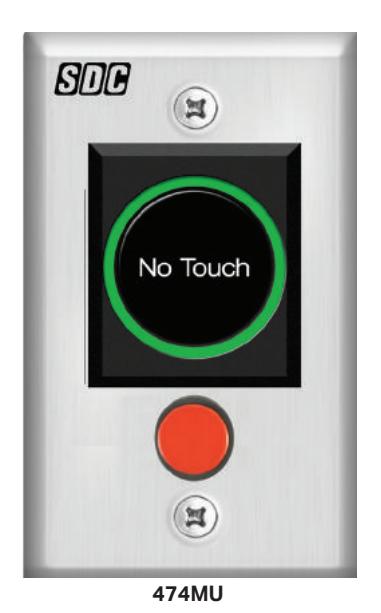

| Override Button |
Alternate-Action SPDT 3A @ 30VDC Resistive*
(474MU only) |
| Activation Time | 1-2 Second OR as Long as Sensor is Triggered |
| LED Color | Standby RED; Active Green |
| Faceplate | 20 Ga Stainless Steel |
| Range | 2-7" Field Adjustable |
| Dimension | 4.5" x 2.75" x 1.375" (Single Gang) |
| Weight | 3 oz. |
* Manual override button mode utilizes mechanical switch to maintain operation in the event of power loss or sensor failure.
