47PN & 47PD PULL PLATE INSTRUCTIONS FOR USE WITH 4700 SERIES EXIT DEVICES

STEP 1: INSTALL CYLINDER (SKIP TO STEP "2" FOR DUMMY PULL PLATE - 47PD)

  • A. INSTALL RIM CYLINDER THROUGH WAVE WASHER, CYLINDER SPACER RING (IF NEEDED) AND COLLAR. THE THINNER COLLAR PROVIDED WITH THE RIM CYLINDER CAN BE USED FOR 1-1/8" LONG CYLINDERS ONLY.
  • B. INSERT RIM CYLINDER THROUGH HOLE IN PULL PLATE AND INSTALL SPACER AND CYLINDER CUP FROM THE BACKSIDE OF THE PULL PLATE.
  • C. SECURE RIM CYLINDER ASSEMBLY USING THE 2 BREAK OFF SCREWS PROVIDED WITH THE RIM CYLINDER.

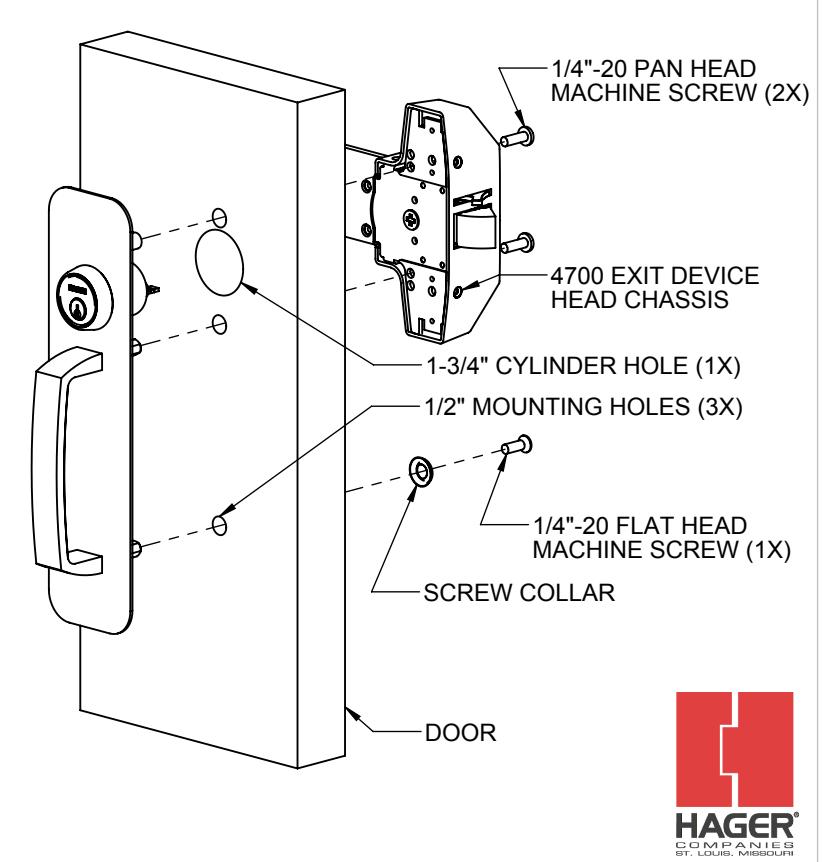

RIM CYLINDER 1-1/8" TO 1-3/8" LONG IC OR STANDARD CORE WAVE SPRING WASHER CYLINDER SPACER RING CYLINDER COLLAR FOR 1-1/4 TO 1-3/8" LONG CYLINDERS CYLINDER COLLAR - PROVIDED WITH CYLINDER FOR 1-1/8" LONG CYLINDERS ONLY SPACER BREAK-OFF SCREWS CYLINDER CUP AND TAILPIECE GUIDE TAB MUST FIT INTO SLOT ON SPACER TAB MUST FIT INTO SLOT ON PULL PLATE BREAK-OFF SCREWS PROVIDED WITH RIM CYLINDER

STEP 2: INSTALL PULL PLATE

  • A. TRANSFER HORIZONTAL CENTERLINE AND BACKSET CENTERLINE FROM EXIT DEVICE SIDE OF THE DOOR.

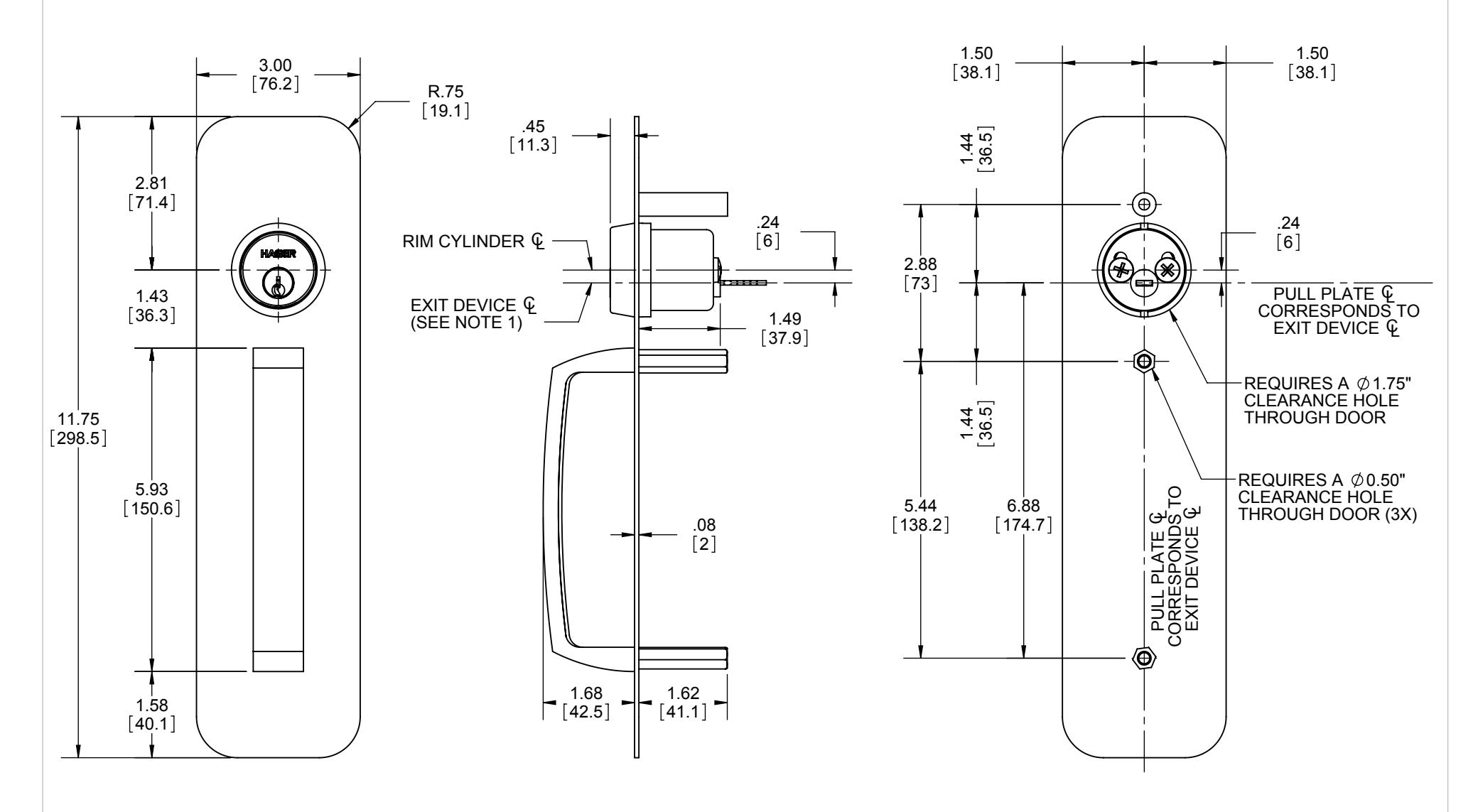

  • B. USE TEMPLATE OR DIMENSIONS FROM PAGE 2 TO MARK HOLE LOCATIONS.
  • C. DRILL THREE 1/2" CLEARANCE HOLES FOR MOUNTING POSTS.
  • D. DRILL 1-3/4" CLEARANCE HOLE FOR THE CYLINDER.
  • E. INSERT PULL PLATE MOUNTING POSTS THROUGH DOOR.
  • F. RIM CYLINDER TAILPIECE SHOULD INSERT INTO THE EXIT DEVICE CAM APPROXIMATELY 7/16" 1/16". IF IT'S TOO LONG, CAREFULLY MEASURE AND MARK AT THE CLOSEST BREAK-OFF LINE. THEN USE PLYERS TO BREAK-OFF ACCESS, CAREFULLY NOT TO BREAK-OFF TOO MUCH.
  • G. SECURE PULL PLATE AND EXIT DEVICE USING THE 3 MOUNTING SCREWS.

DRAWING NO: I-ED00264 REV: 01 HAGER COMPANIES 139 Victor Street, St. Louis, MO 63104 - (800) 325-9995 - Fax (800) 782-0149

47PN & 47PD PULL PLATE INSTRUCTIONS FOR USE WITH 4700 SERIES EXIT DEVICES

NOTES:

1. MATCH THIS CENTERLINE UP WITH THE EXIT DEVICE CENTERLINE. THIS WILL ENSURE THE RIM CYLINDER TAILPIECE LINES UP WITH THE EXIT DEVICE TAILPIECE CAM.
