4700 Series SVR Door Prep Template t-ed00940-template

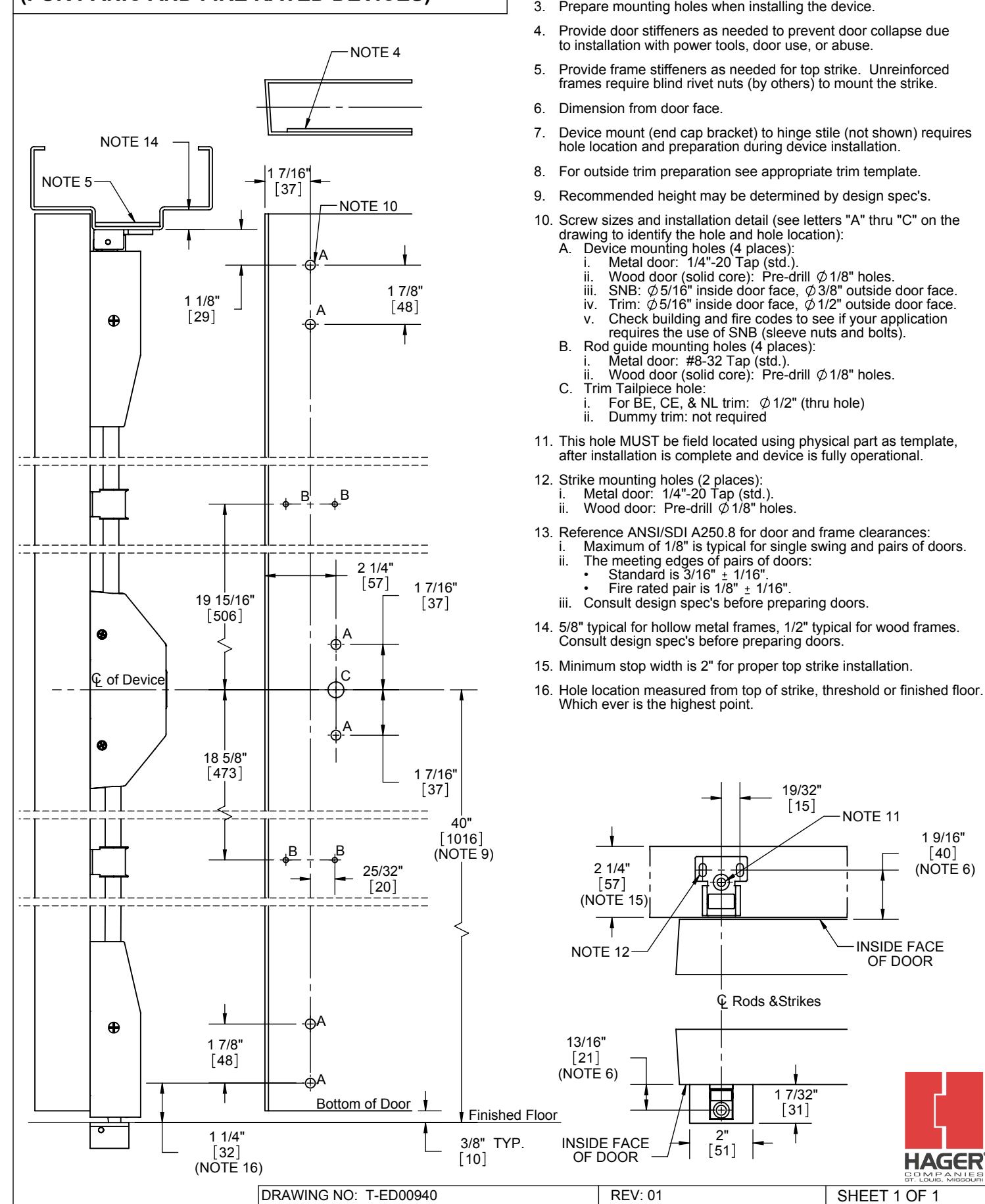

4700 SVR DEVICE DOOR PREP TEMPLATE

APPLICATION FOR METAL AND WOOD DOORS (FOR PANIC AND FIRE RATED DEVICES)

NOTES:

Minimum Stile width:

HAGER COMPANIES 139 Victor Street, St. Louis, MO 63104 - (800) 325-9995 - Fax (800) 782-0149

4" for double doors.

LHR door shown. Preparation is typical for both door hands.

4 1/2" for single doors with standard 5/8" stop.

[40]
