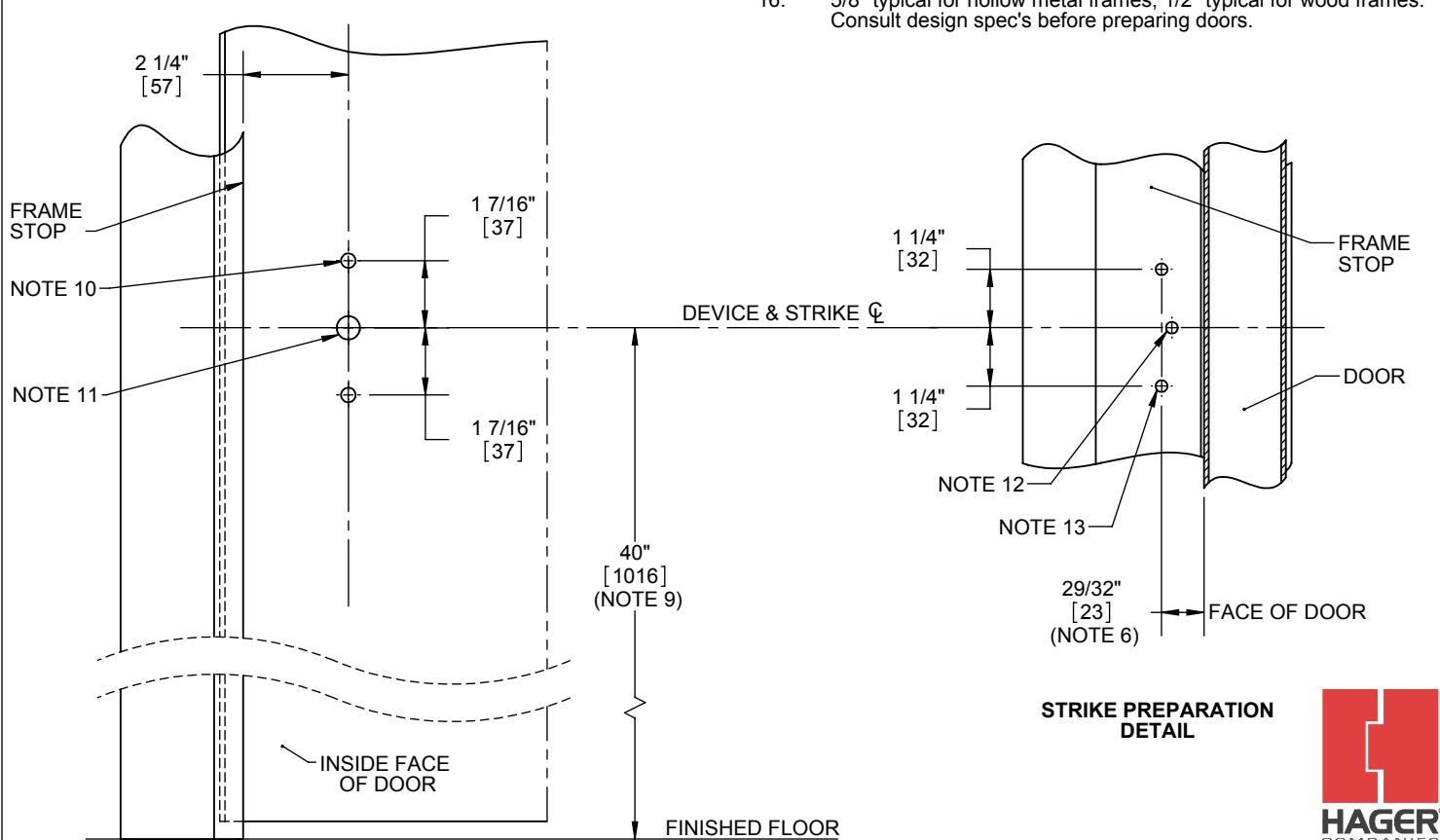

4700 RIM DEVICE DOOR PREP TEMPLATE

APPLICATION FOR METAL AND WOOD DOORS (FOR PANIC AND FIRE RATED DEVICES)

DEVICE CL

NOTES:

  • 1. LHR door shown. Preparation is typical for both door hands.
  • 2. Minimum Stile width:
    • 4 1/2'' for double doors & SVR with double door strike.
    • 4 1/2" for single doors with standard 5/8" stop.
  • 3. Prepare mounting holes when installing the device.

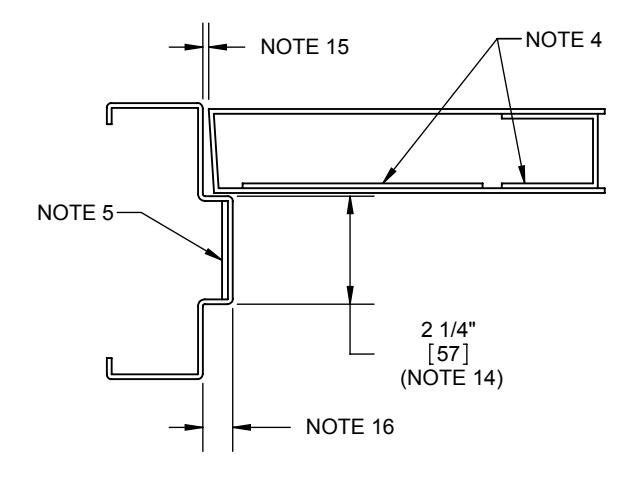

  • 4. Provide door stiffeners as needed to prevent door collapse due to installation with power tools, door use, or abuse.
  • 5. Provide frame stiffeners as needed for rim strike. Unreinforced frames require blind rivet nuts (by others) to mount the strike.
  • 6. Dimension from door face.
  • 7. Device mount (end cap bracket) to hinge stile (not shown) requires hole location and preparation during device installation.
  • 8. For outside trim preparation see appropriate trim template.
  • 9. Recommended height may be determined by design spec's.
  • 10. Device mounting holes (2 places)
    • Metal door: 1/4"-20 Tap (std.).
    • Wood door (solid core): Pre-drill 1/8" holes.
    • SNB: 5/16" inside door face, 3/8" outside door face.
    • Trim: 5/16" inside door face, 1/2" outside door face. • Check building and fire codes to see if your application
    • requires the use of SNB (sleeve nuts and bolts).
  • 11. Trim Tailpiece hole:
    • For BE, CE & NL trim: 1/2" (thru hole)
    • Dummy trim: not required
  • 12. This hole MUST be field located using physical part as template, after installation is complete and device is fully operational.
  • 13. Strike mounting holes (2 places)
    • Metal Frame: 1/4"-20 Tap (std.).
    • Wood Frame: Pre-drill 1/8" holes.
  • 14. 1-7/8" Minimum recommended (2-1/4" standard frame).
  • 15. Per ANSI/SDI A250.8, single door is 1/8", pairs of doors 3/16" 1/16", and fire rated pair 1/8" 1/16". Consult design spec's before preparing doors.
  • 16. 5/8" typical for hollow metal frames, 1/2" typical for wood frames.

DRAWING NO: T-ED00934 REV: 01 SHEET 1 OF 1 HAGER COMPANIES 139 Victor Street, St. Louis, MO 63104 - (800) 325-9995 - Fax (800) 782-0149
