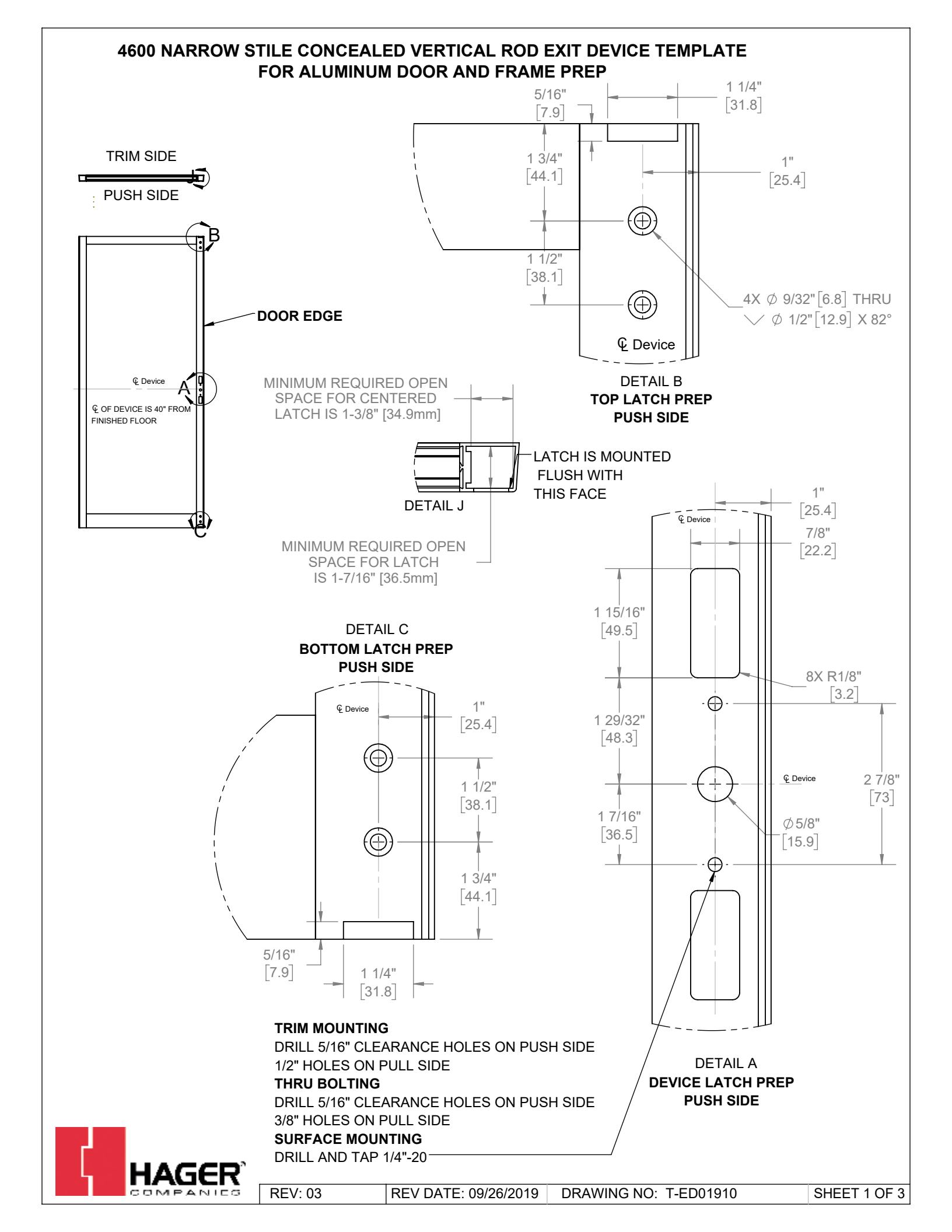

4600 NARROW STILE CONCEALED VERTICAL ROD EXIT DEVICE TEMPLATE FOR ALUMINUM DOOR AND FRAME PREP

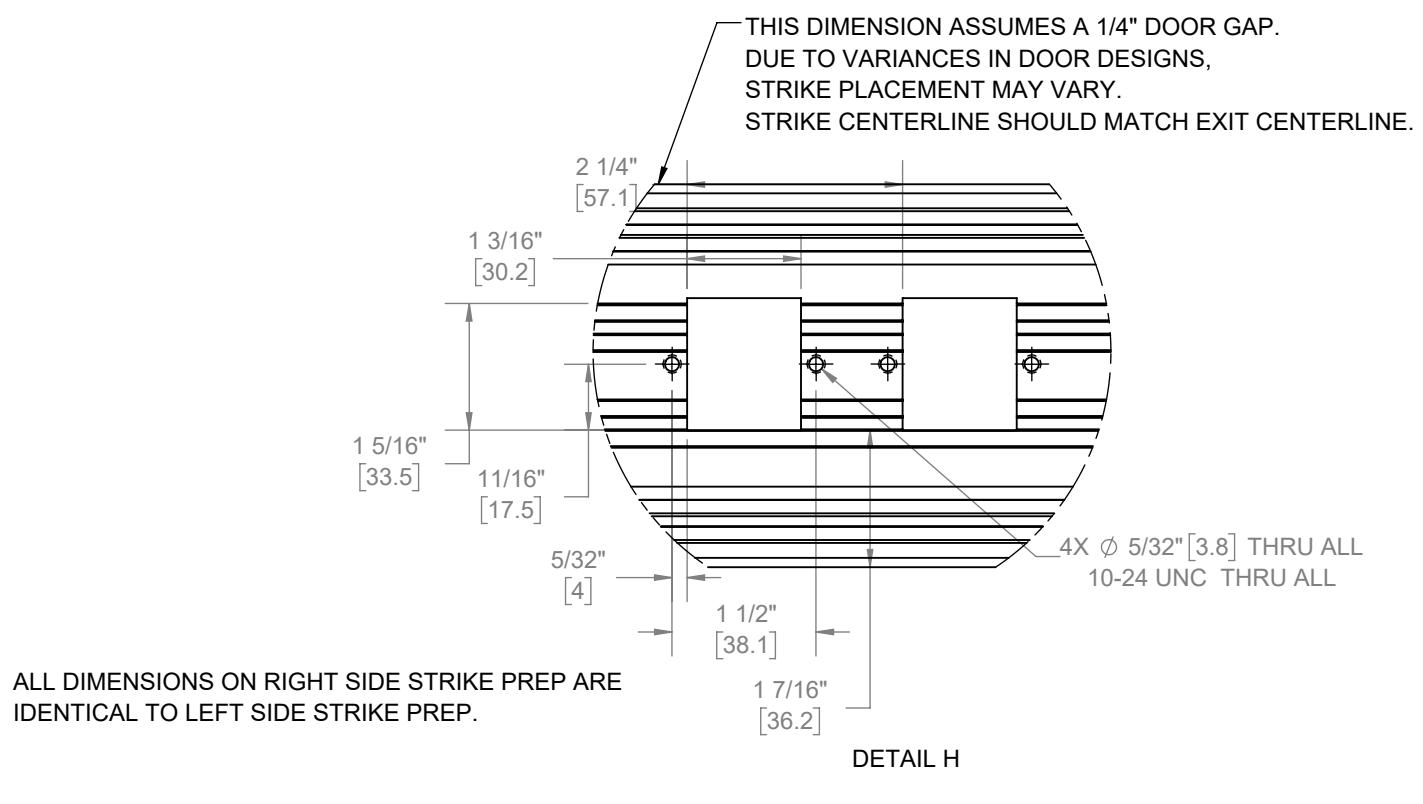

THIS DIMENSION ASSUMES A 1/4" DOOR GAP. DUE TO VARIANCES IN DOOR DESIGNS, STRIKE PLACEMENT MAY VARY.

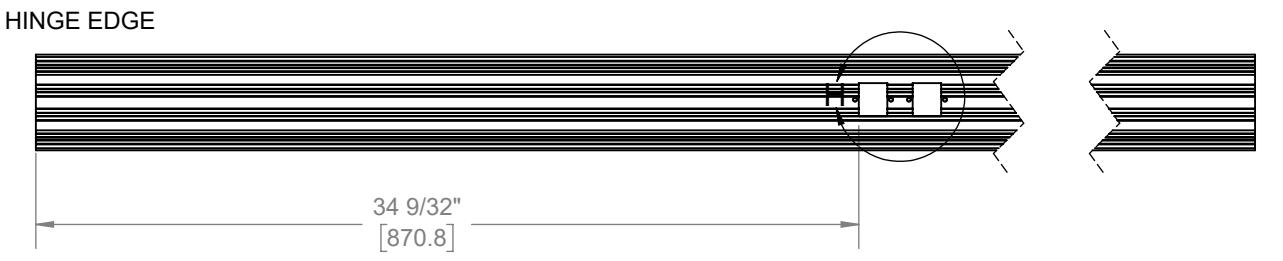

ALL DIMENSIONS ON RIGHT SIDE STRIKE PREP ARE IDENTICAL TO LEFT SIDE STRIKE PREP.

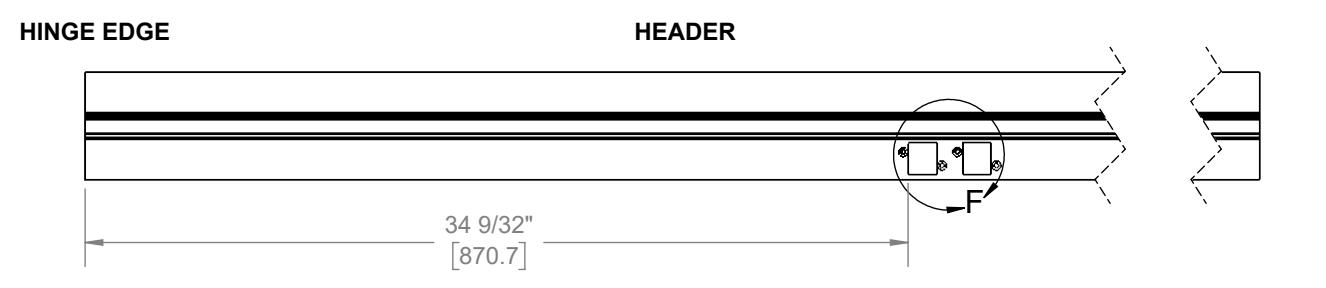

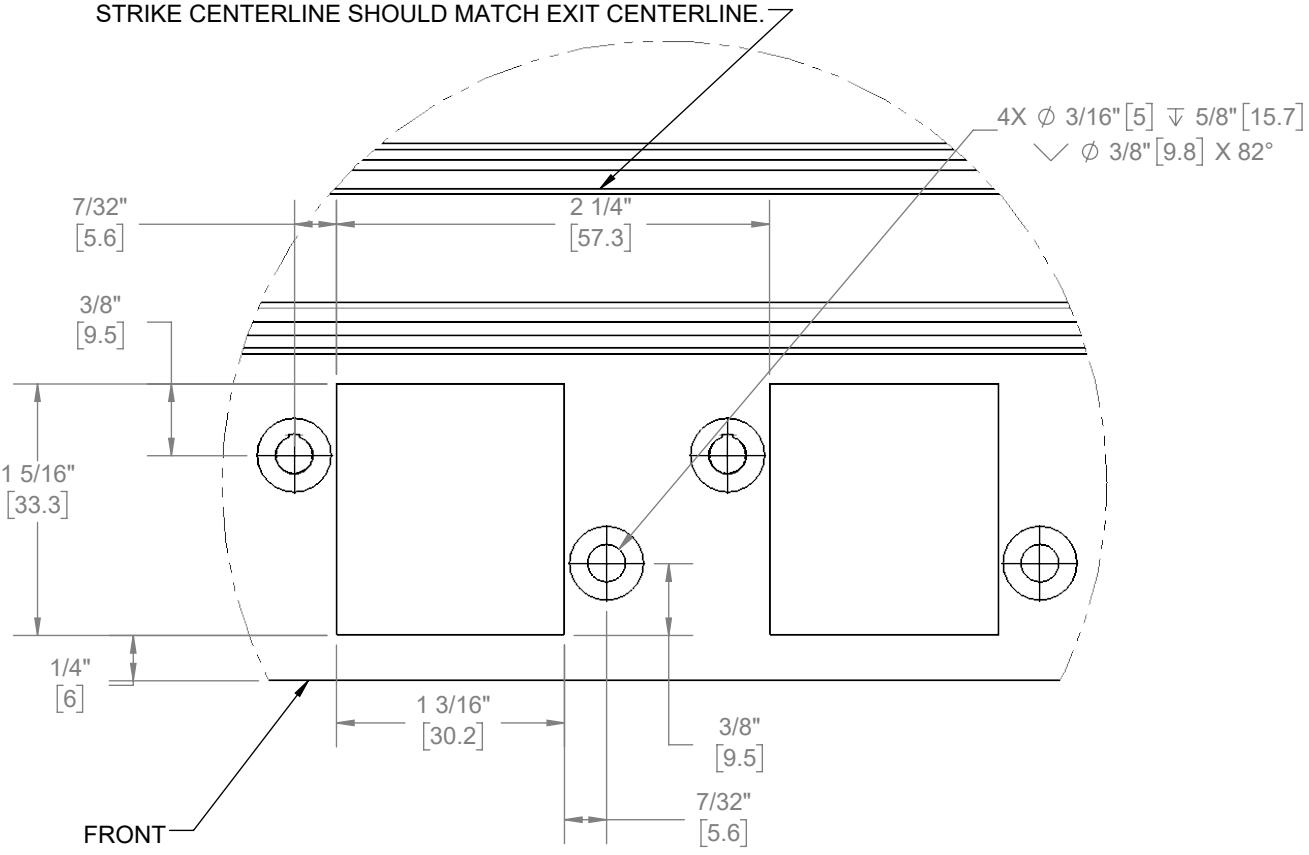

DETAIL F TOP STRIKE PREP

REV: 03 REV DATE: 09/26/2019 DRAWING NO: T-ED01910 SHEET 2 OF 3

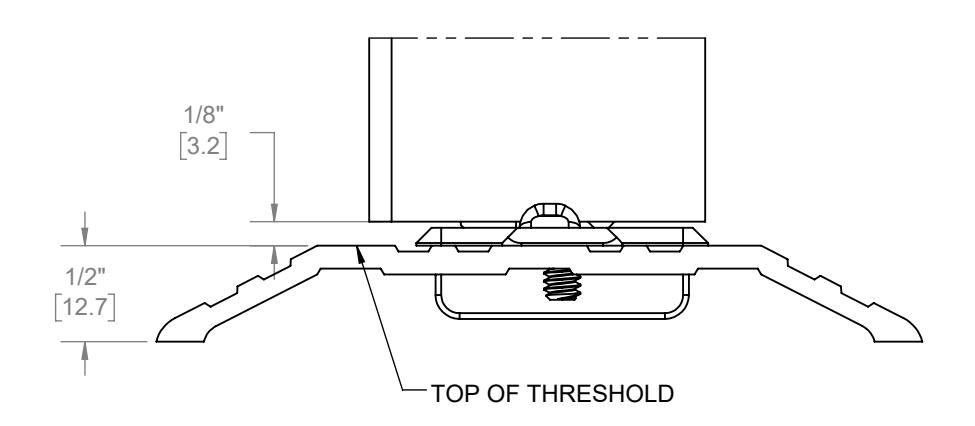

THRESHOLD SHOWN IS A HAGER 404S. THRESHOLD IS CENTERED ON DOOR. BOTTOM STRIKE IS DESIGNED TO WORK WITH 1/2" TALL THRESHOLDS.

BOTTOM STRIKE PREP

REV: 03 REV DATE: 09/26/2019 DRAWING NO: T-ED01910 SHEET 3 OF 3
