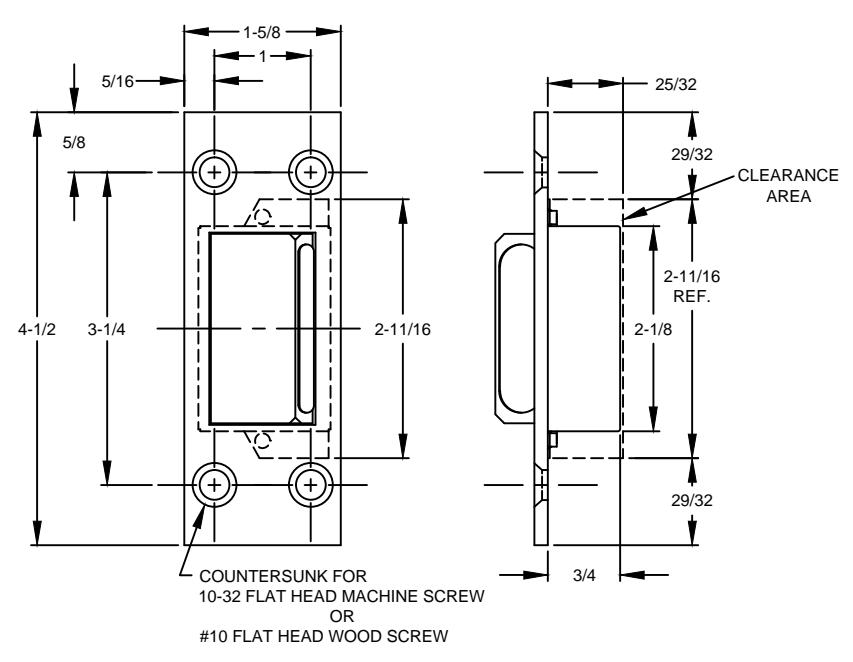

4590 RESCUE STOP

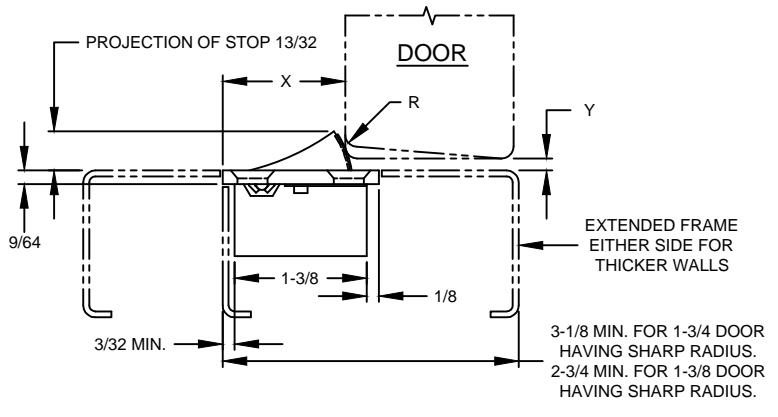

DOOR WITH SQUARE OR BEVELED STILE

"R" RADIUS
AT EDGE
OF STILE 		"X" DIMENSION
WHEN CLEARANCE
"Y" = 1/8 		"X" DIMENSION
WHEN CLEARANCE
"Y" = 3/32
SHARP 1-1/4 1-17/64
DOORS WITH
SQUARE STILES
(ANY THICKNESS) 		1/32 1-1/4 1-17/64
1/16 1-15/64 1-1/4
3/32 1-7/32 1-15/64
1/8 1-7/32 1-7/32
1-3/4" DOORS 1-3/8" DOORS 1-3/4" DOORS 1-3/8" DOORS
DOORS WITH
BEVELED STILES
(1/8" IN 2" BEVEL) 		SHARP 1-13/64 1-1/4 1-7/32 1-17/64
1/32 1-13/64 1-1/4 1-7/32 1-17/64
1/16 1-3/16 1-15/64 1-13/64 1-1/4
3/32 1-11/64 1-7/32 1-3/16 1-15/64
1/8 1-5/32 1-7/32 1-11/64 1-15/64

NOTES:

  • 1. SUGGESTED LOCATION 6" TO 10" ABOVE LATCH.
  • 2. USED WITH CENTER HUNG DOOR PIVOT.
  • 3. DO NOT SCALE DRAWING.
  • 4. ALL DIMENSIONS ARE IN INCHES.

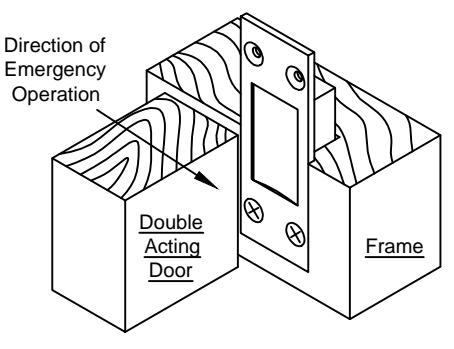

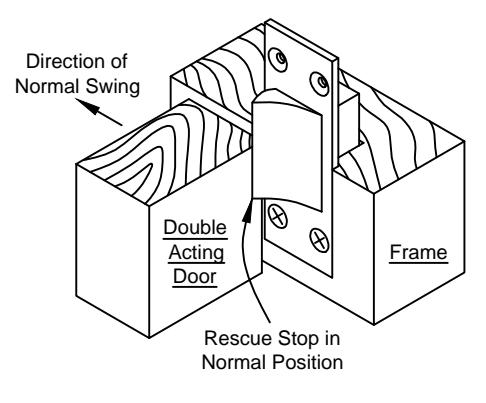

Rescue Stop may be Depressed Manually to allow Door to Open in Opposite Direction OR

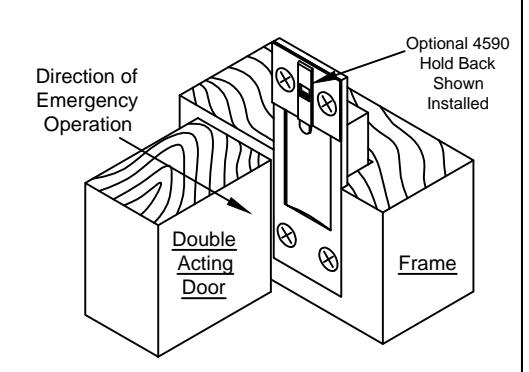

By using the Optional Hold Back Plate & Clip by Sliding Down the Hold Back Clip (Shown below)

4590 Hold Back Plate & Clip (Provided Standard, But Optional to Install)

4590-02.DWG

4590
