Rescue Hardware

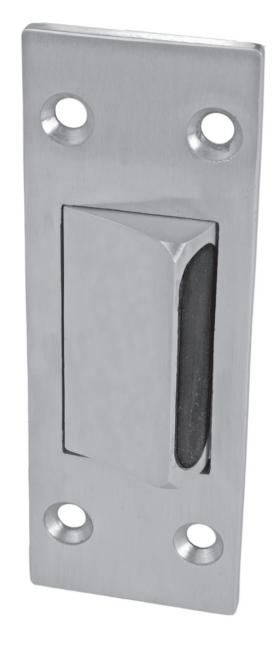

4590 - Rescue Stop

Standard Features

  • Intended for use in hospital or nursing home patient bathroom doors
  • Converts double-acting door to single-acting door
  • Allows door to swing open in opposite direction if something or someone obstructs the normal swing of the door
  • Pushing in on the spring loaded stop allows emergency operation of the door
  • Stop automatically returns to normal position when released (spring-loaded)
  • Standard fasteners provided:
    • •
    • •
  • Available in US32D, US32, US10B, US10, US3
  • Meets ANSI Spec A1882

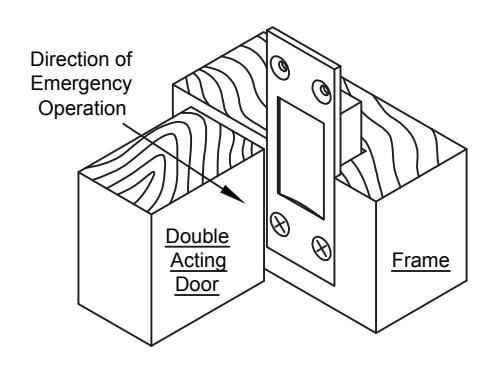

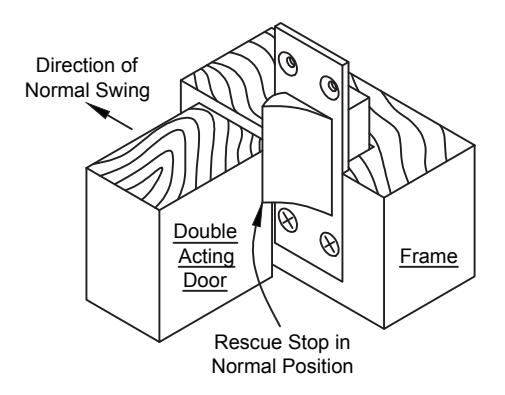

Rescue Stop may be Depressed Manually to allow Door to Open in Opposite Direction OR

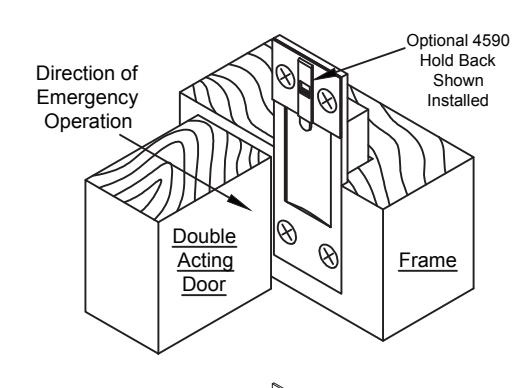

By using the Optional Hold Back Plate & Clip by Sliding Down the Hold Back Clip (Shown below)

4590 Hold Back Plate & Clip (Provided Standard, But Optional to Install)
