456 Specials Template T456-Rev04

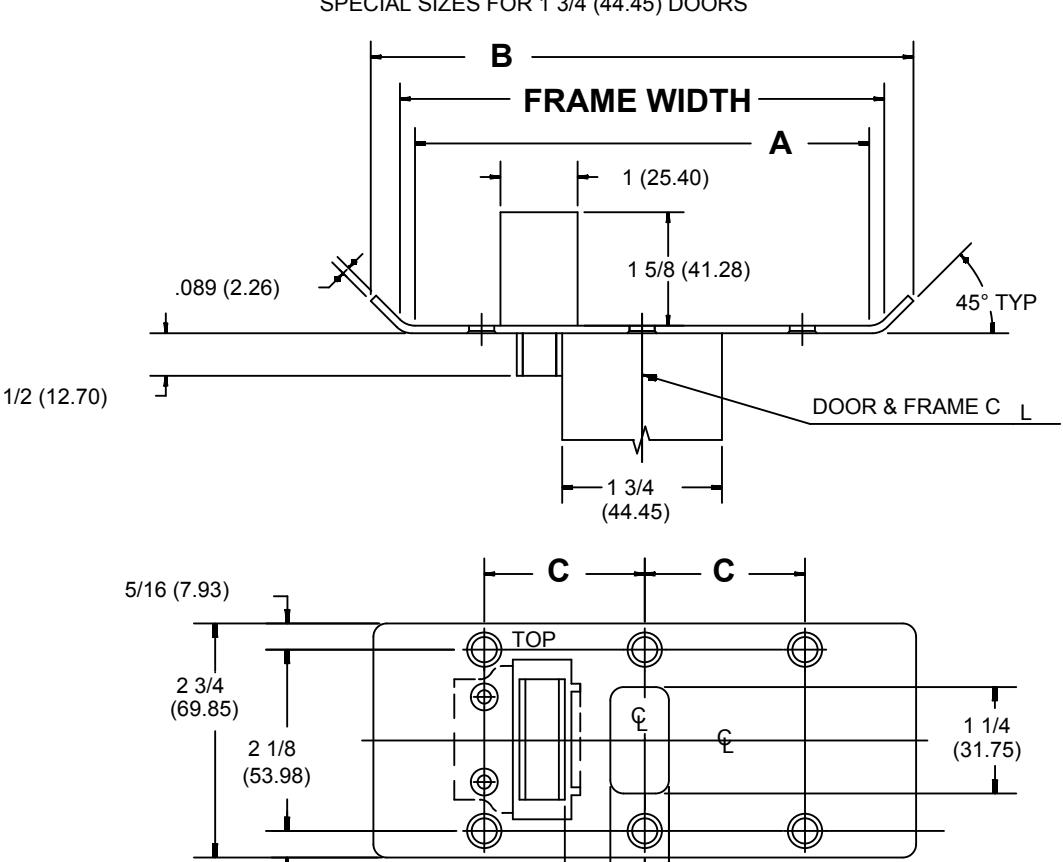

TWO WAY STRIKE FOR CENTER HUNG DOORS COMBINATION RESCUE DOOR STOP AND

SPECIAL SIZES FOR 1 3/4 (44.45) DOORS

.251 (6.38) 5/16 (7.93)

CATALOG NUMBER	FRAME WIDTH	(A)	(B)	(C)	MATERIAL
456	4-3/4	4-3/8	5-3/8	1-7/8	BRASS
	5-1/4	4-7/8	5-7/8	1-7/8	BRASS
	5-7/8	5-1/2	6-1/2	1-15/16	BRASS
	6-1/8	5-3/4	6-3/4	2-1/16	BRASS
	6-1/4	5-7/8	6-7/8	2-1/8	BRASS
	6-1/2	6-1/8	7-1/8	2-1/4	BRASS
	7-1/8	6-3/4	7-3/4	2-9/16	BRASS
	7-1/2	7-1/8	8-1/8	2-3/4	BRASS
	7-3/4	7-3/8	8-3/8	2-7/8	BRASS
	8	7-5/8	8-5/8	3	BRASS
	8-1/4	7-7/8	8-7/8	3-1/8	BRASS
	8-3/4	8-3/8	9-3/8	3-3/8	BRASS

Machine Screw Size- 8-32 x 1/2" undercut F.H. ALL BRACKETED DIMENSIONS ARE IN MILLIMETERS. ALL NON-BRACKETED DIMENSIONS ARE IN INCHES,

R.H. DOOR SWING INSTALLATION SHOWN

LEFT HAND OPPOSITE

2 5/16 (58.74) MIN. CLEARANCE FOR DOOR STOP COVER

7/8 (22.23)

.688 (17.48)

3/16 (4.76) BACK-UP PLATES (2) 2 25/32 (70.64)

-DO NOT SCALE-

with horizontal centerline of cutout. NOTE: Horizontal centerline of plate to coincide

CUTOUT IN METAL JAMB FOR DOUBLE-LIPPED STRIKE

(SUPPLIED BY OTHERS)

HAGER COMPANIES
139 Victor St. St. Louis, MO 63104 1-800-325-9995

HAGER	RESERVES	THE RIGI	HT TO	MAKE
DESIGN	CHANGES	WITHOUT	NOTIC	E.

NO.	REVISION			BY	DATE
4	PER	ECO	CT08036	SEW	11-03-08
