4500 Series Rim Door Prep Template – T-ED00872-Rev01

4500 RIM DEVICE DOOR PREP TEMPLATE

APPLICATION FOR METAL AND WOOD DOORS (FOR PANIC AND FIRE RATED DEVICES)

DEVICE

11/16"

[17]

NOTE 10

[56]

[56]

25/32" [20]

[20]

INSIDE FACE OF DOOR

2 7/16"

62

FRAME

NOTE 11

NOTE 12

STOP

NOTES:

• 1. LHR door shown. Preparation is typical for both door hands.
• 2. Minimum Stile width:
  • 4 7/8" for double doors. 5 3/8" for single doors with standard 5/8" stop.
    • 5 3/4" for double doors with 2" mullion.
• 3. Prepare mounting holes when installing the device.
• 4. Provide door stiffeners as needed to prevent door collapse due to installation with power tools, door use, or abuse.
• 5. Provide frame stiffeners as needed for rim strike. Unreinforced frames require blind rivet nuts (by others) to mount the strike.
• 6. Dimension from door face.
• 7. Device mount (end cap bracket) to hinge stile (not shown) requires hole location and preparation during device installation.
• 8. For outside trim preparation see appropriate trim template.
• 9. Recommended height may be determined by design spec's.
• 10. A $\backslash emptyset$ 1/2" hole is required if using the electric trim (45ET).
• 11.
• Device mounting holes (4 places) Metal door: 1/4"-20 Tap (std.). Wood door (solid core): Pre-drill Ø 1/8" holes.
  • SNB: $\backslash phi$ 5/16" inside door face, $\backslash phi$ 3/8" outside door face. Trim: $\backslash phi$ 5/16" inside door face, $\backslash phi$ 1/2" outside door face.
  • Check building and fire codes to see if your application requires the use of SNB (sleeve nuts and bolts).
• 12. Trim Tailpiece hole:
  • For BE and CE trim: $\backslash phi$ 5/8" (thru hole)
  • Dummy trim: not required
  • Night Latch trim: See template T-ED00344 for details.

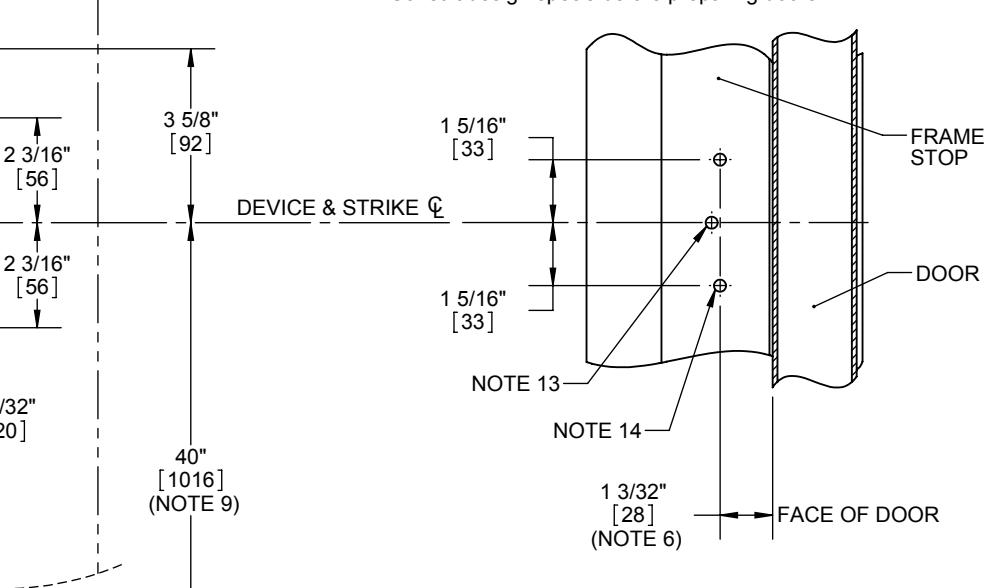

• 13 This hole MUST be field located using physical part as template, after installation is complete and device is fully operational.
• 14
• Strike mounting holes (2 places) Metal door: 1/4"-20 Tap (std.).
  • Wood door: Pre-drill Ø1/8" holes.
• 15. 1-7/8" Minimum recommended (2-1/4" standard frame).
• 16. Per ANSI/SDI A250.8, single door is 1/8", pairs of doors $3/16"\; \backslash pm\; 1/16"$ , and fire rated pair $1/8"\; \backslash pm\; 1/16"$ . Consult design spec's before preparing doors.
• 17. 5/8" typical for hollow metal frames, 1/2" typical for wood frames. Consult design spec's before preparing doors.

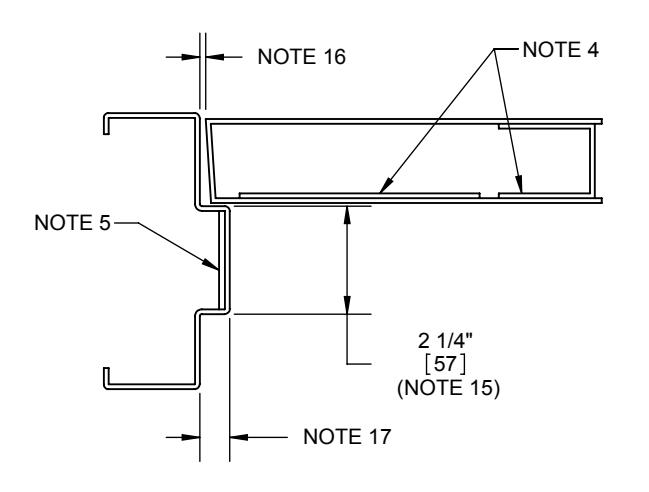

STRIKE PREPARATION DETAIL

HAGER

DRAWING NO: T-ED00872

FINISHED FLOOR

SHEET 1 OF 1

HAGER COMPANIES 139 Victor Street, St. Louis, MO 63104 - (800) 325-9995 - Fax (800) 782-0149

REV: 01
