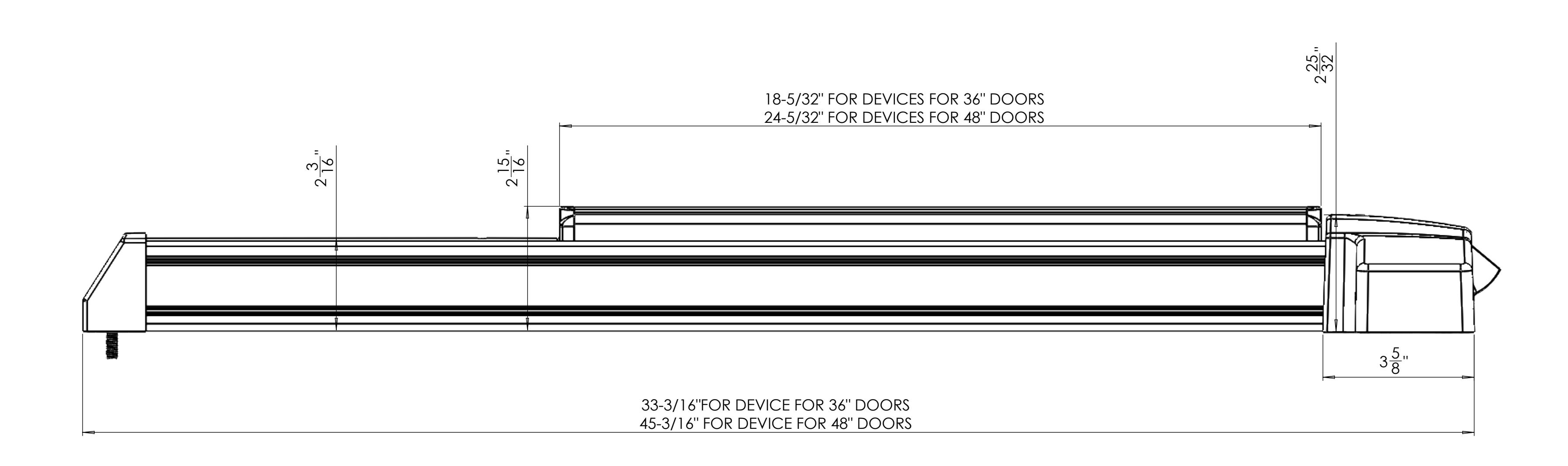

4500 Exit Device Overall Dimensions – S-ED02000

ALTHOUGH THE RIM DEVICE IS SHOWN, THESE DIMENSIONS ARE THE SAME FOR ALL 4500 RIM, VERTICAL ROD AND MORTISE EXIT DEVCIES.

PROPRIETARY AND CONFIDENTIAL THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF HAGER COMPANIES. ANY REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF HAGER COMPANIES IS PROHIBITED. HAGER RESERVES THE RIGHT TO MAKE DESIGN CHANGES WITHOUT NOTICE. CALL HAGER ENGINEERING AT 1-800-325-9995 FOR THE LATEST REVISION. FINISH DRAWN TCSTCSTCS 7/26/15 ENG APPR. Q.A. TOLERANCES: FRACTIONAL: ±0.015" ANGULAR: MACH: ±1" BEND: ±1" TWO PLACE DECIMAL: ±0.014" THREE PLACE DECIMAL: ±0.004" SCALE: 1:5 WEIGHT: SHEET 2 OF 2
