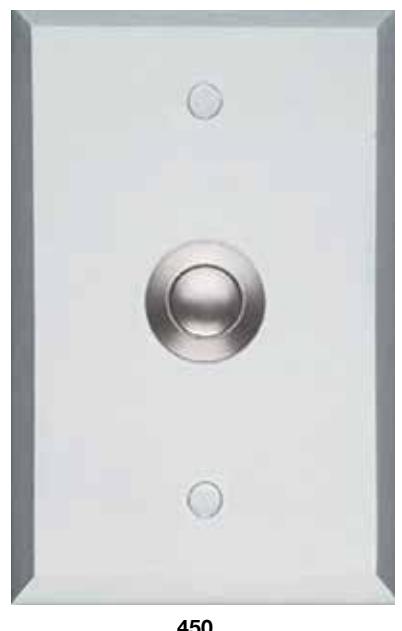

View PDF450 Vandal Resistant Series Exit Switches
The SDC 450 Series incorporates a 1/4" thick aluminum faceplate and an all stainless steel button. The assembly will resist the impact of a hammer blow. In addition, security spanner mounting screws are concealed by tamper resistant aluminum plugs to inhibit tampering.
PNEUMATIC TIME DELAY
The 453P includes a 1 to 180 second pneumatic timer for delayed re-locking. Where preferred, the 10TD Electronic Mini Timer may be specified for use with the standard 452 model.
450N
- Stainless Steel Button -1/4" Thick Aluminum Plate
- Security Screws
SPECIFICATIONS
| Button | Round Dull Stainless Steel button, 1/2" |
|---|---|
| Contact | 6 Amp @ 30VDC Resistive |
| Wire Connection |
451/452: 6", 20 Gauge
453P: Screw terminals |
| 1 Gang | 2 7/8" x 4 1/2" x 1/4" |
| Narrow | 1 3/4" x 4 1/2" x 1/4" |
| Weight | 0.5 lbs |
