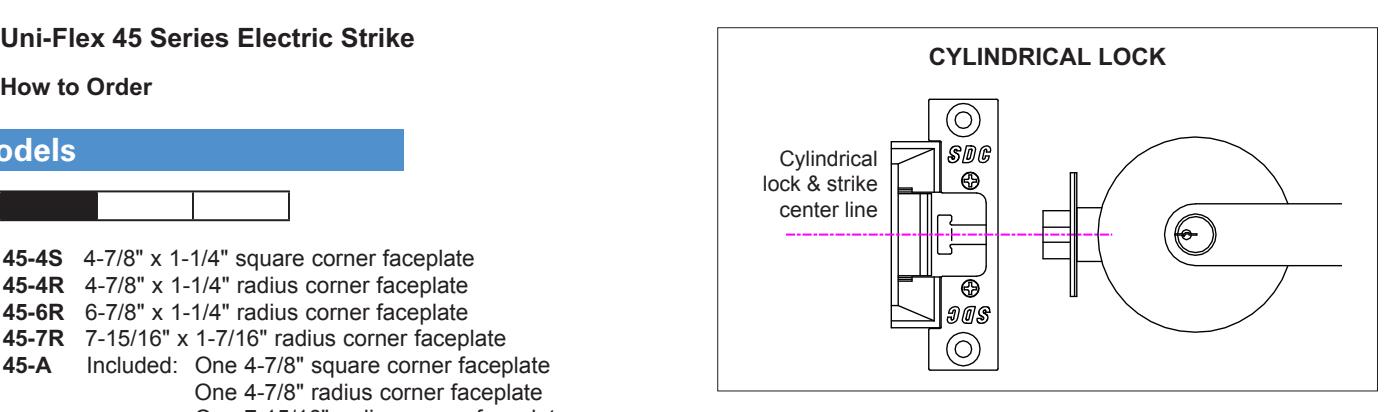

How to Order

Models

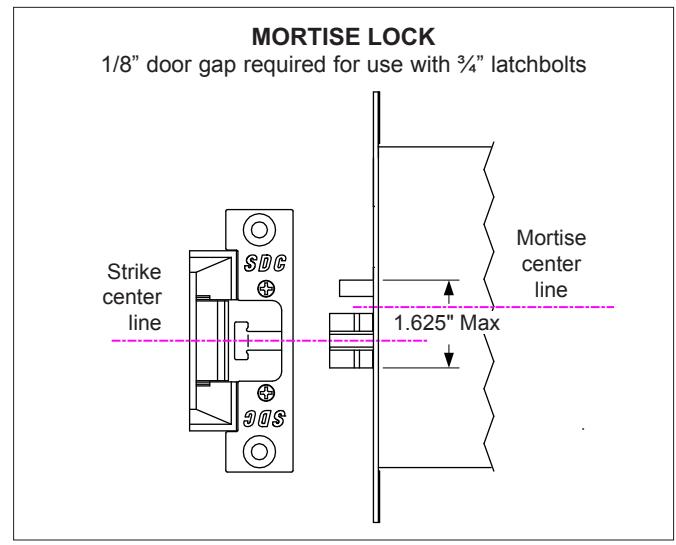

45-4S 4-7/8" x 1-1/4" square corner faceplate 45-4R 4-7/8" x 1-1/4" radius corner faceplate 45-6R 6-7/8" x 1-1/4" radius corner faceplate 45-7R 7-15/16" x 1-7/16" radius corner faceplate

45-A Included: One 4-7/8" square corner faceplate One 4-7/8" radius corner faceplate One 7-15/16" radius corner faceplate

Latch Position Status Standard Keeper Closed and Deadlocked/Unlocked Status Standard

Finish

630 Dull Stainless Steel (standard with 45-4S)

628 Dull Aluminum (standard with 45-4R, 45-6R and 45-7R)

335 Black Anodized

606 Dull Brass

613 Oil Rubbed Bronze

Options

K Keeper open/closed status RMB Buzzer 12/24V AC/DC operation

Electrical Specifications

Dual Voltage Coil: 280/140mA @ 12/24V DC 170/85mA @ 12/24V AC

Latch Position Status (std): SPDT, Dry 3Amp @ 30V Keeper Closed & Locked Status (std): SPDT, Dry 3Amp @ 30V Keeper Open/Closed Status (optional): SPDT, Dry 3Amp @ 30V

Dimensions

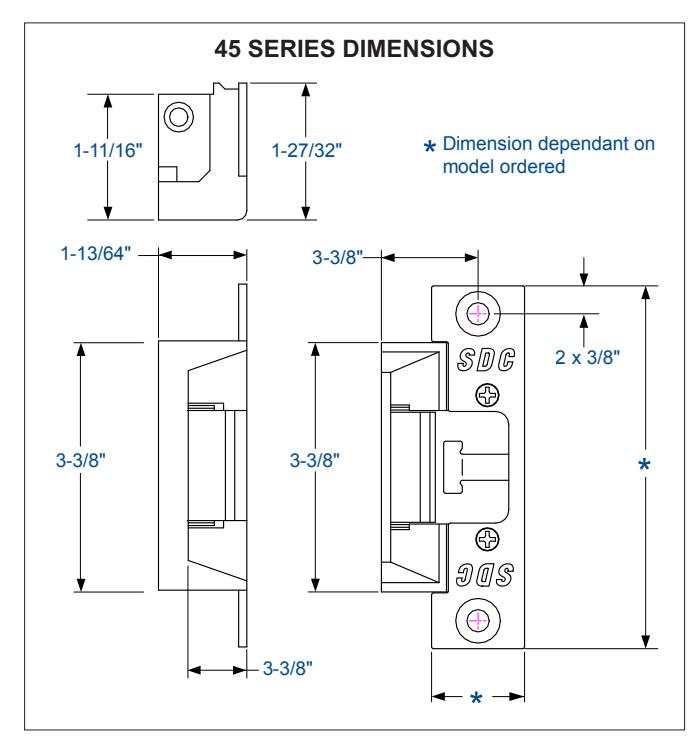

45-4S / 45-4R: 1-1/4" W x 4-7/8" H x 1-1/16" D

(31.8 W x 124 H x 30.2 D mm)

45-6R: 1-1/4" W x 6-7/8" H x 1-1/16" D

(31.8 W x 175 H x 30.2 D mm) 45-7R: 1-7/16" W x 7-15/16" H x 1-1/16" D

(36.5 W x 201.6 H x 30.2 D mm)

UNIFLEX™ 55 SERIES

UNIVERSAL APPLICATION STRIKE

55-A For cylindrical locksets and locksets with ANSI centerline latch entry with up to ¾" latchbolt

55-B & 55-C for mortise locksets with up to 3/4" latch

55-D & 55-E For mortise locksets with deadbolt, with or without a deadlatch below the latchbolt

55-F for mortise locksets with deadbolt and deadlatch located above the latchbolt

For New or Retrofit Construction Retrofits Existing ANSI 4-7/8" Strike Prep – No Centerline Relocation

UniFLEX ™ 55 Series heavy duty electric strikes are designed for installation in hollow metal frames for access control of cylindrical and mortise locksets and mortise exit devices. The choice of 6 application faceplates eliminates the need for centerline relocation, making them ideal for new or retrofit, high security access control applications.

• No Centerline Relocation
• UL 1034 Barglary Resistant
• Up to ¾" Latchbolt and 1" Deadbolt
• Field Reversible, Failsafe/Failsecure
• 1/8" Horizontal alignment adjustment
• ANSI/BHMA A156.31 Grade 1
• Factory tested 2500 lbs, exceeds 1,000,000 cycles
• UL teste 1500 lb Static strength
• 70 ft-lb Dynamic strength
• Internally Mounted Solenoid, No Heat in Keeper
• Dual Voltage 12/24VDC
• Tamper Resistant
• All Stainless Steel Corrosion Resistant Parts and Heavy Cast Body and Keeper
• Non-handed (Deadbolt status handed)
• Plug-in pig tail connectors

Features Reversible Failsafe/Failsecure UniFLEX™ Universal Strike

Fail-Secure (Power-to-Unlock):

Unlocked when energized.

Locked when de-energized and during power failure.

Application: For non fire rated and fire rated doors (exception, may not be used on stairwell doors). May not be maintained in the unlocked (energized) state when used with fire rated doors.

Fail-Safe (Power-to-Lock): Locked when energized. Unlocked when de-energized and during power failure.

Application: Non-fire rated doors only.

CAUTION: Fail-safe is not permitted with the UL Fire Door Accessory label.

Warnock Hersey Tested according to: UL 10C, 3 Hr Fire Rated, 4' x 8' single door NFPA-252 CAN4-S104 (ULC-S104) UL 1034 Burglary-Resistant

55-ABC

Application

55-ABC Universal Strike for cylindrical locks, mortise locks without deadbolts and mortise exit devices, including:

IDC Accurate Arrow Baldwin Best Corbin Russwin Dorma Falcon Hager Marks Sargent Schlage Yale
