INSTALLATION INSTRUCTIONS 45 SERIES ELECTRIC STRIKES

MODELS:

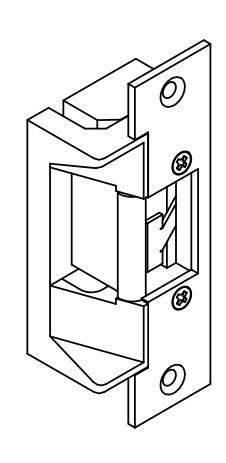

• 45-4S 4.875" (124mm) Square corners for hollow metal frames.

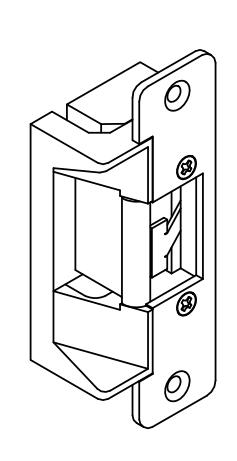

• 45-4R 4.875" Radius corners for aluminum frame.
• 45-6R 6.875" Radius corners for aluminum/wood frame.

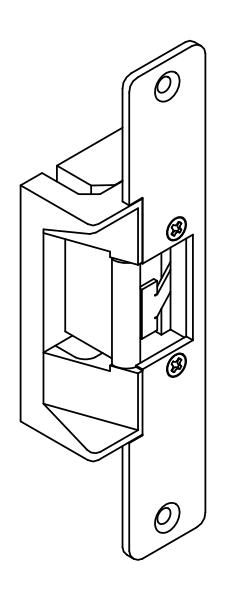

• 45-7R 7.938" Radius corners for aluminum/wood frame

FEATURES:

• For 5/8" latch or 3/4" latch with 1/8" door gap.
• Latch bolt monitor standard.
• Keeper closed & deadlocked standard.
• Field selectable failsafe / failsecure.
• Field selectable voltage, 12/24V AC/DC
• AC with Rectifier (BR64XL)
• 1/4" horizontal alignment adjustment.

• Plug-in wire connectors.
• Low profile, 1-3/16" deep
• All stainless steel parts with durable die cast body for corrosion resistance.
• Fewer moving parts for maximum life.
• 630 stainless steel standard.
• ANSI A156.31
• UL Listed (BP10254)
• U.S. Patent #7,540,542 B2

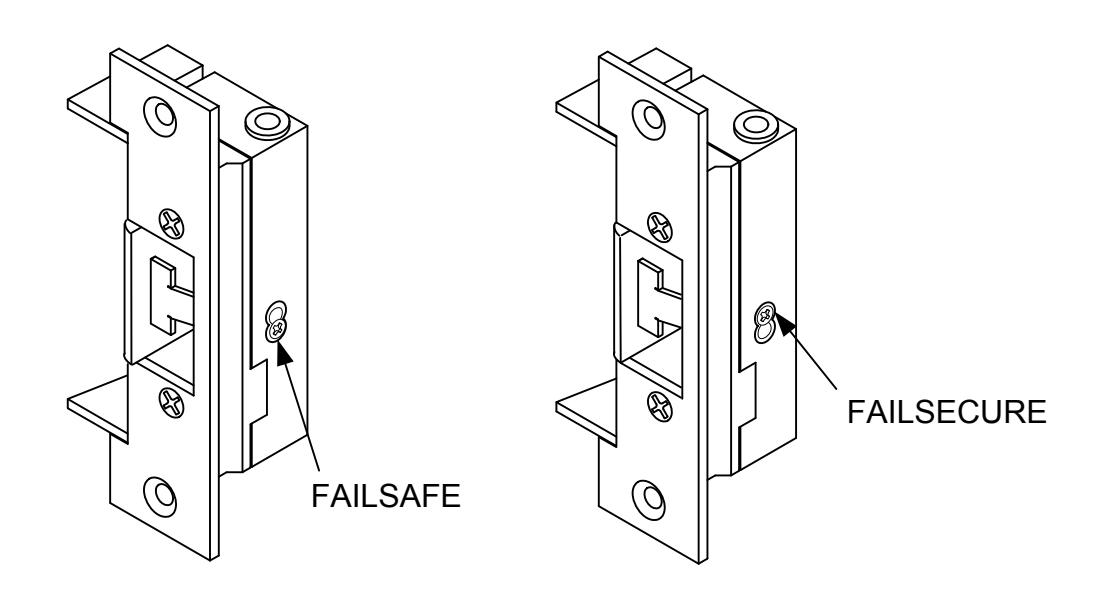

Failsecure standard. Field adjustable from Failsecure to Failsafe as shown.

Electrical Data:

Dual Voltage: 200/100mA @ 12/24VDC 140/70mA @ 12/24VAC

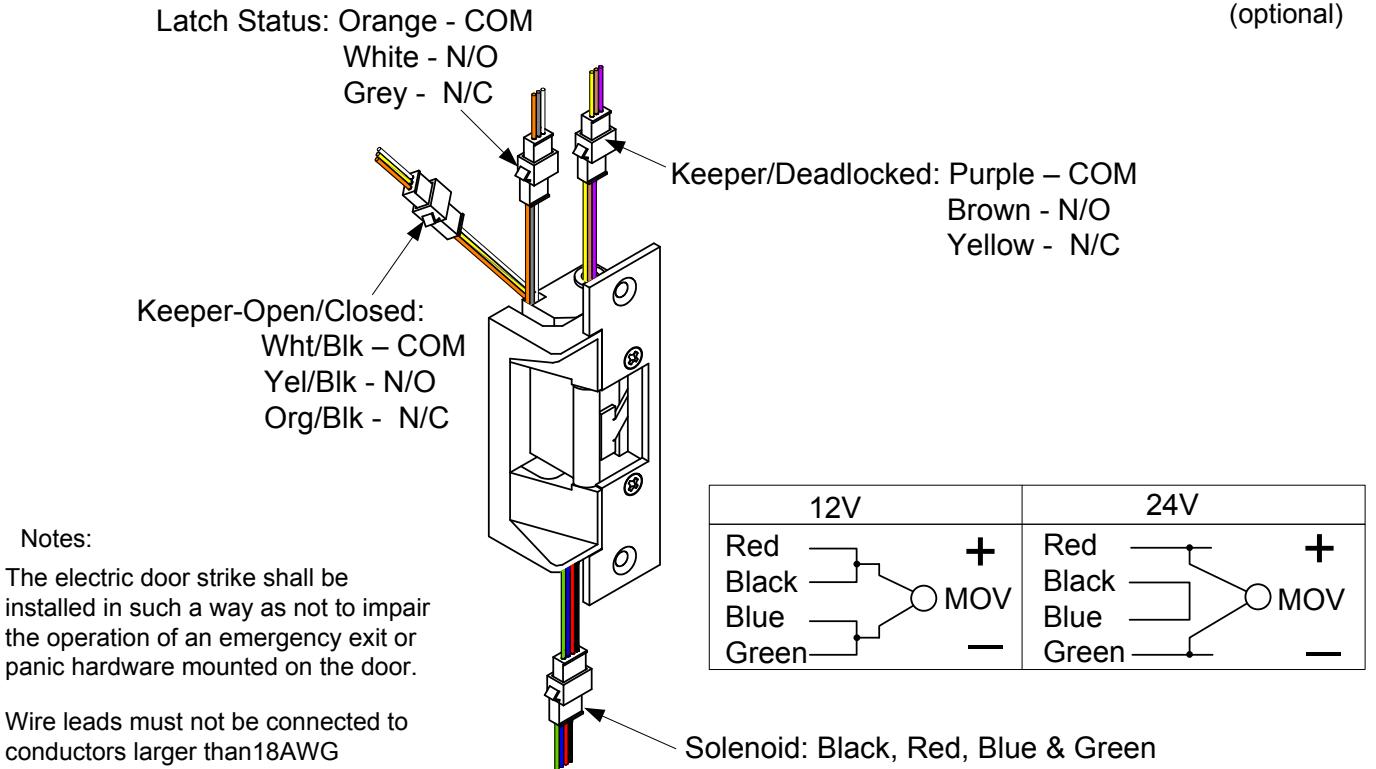

Monitoring:

• Latch Status: SDPT, dry 3Amp @ 30V (standard)
• Keeper Closed and Deadlocked (standard)
• Keeper Open/Closed Status: SPDT, Dry 3Amp @ 30V (ontional)

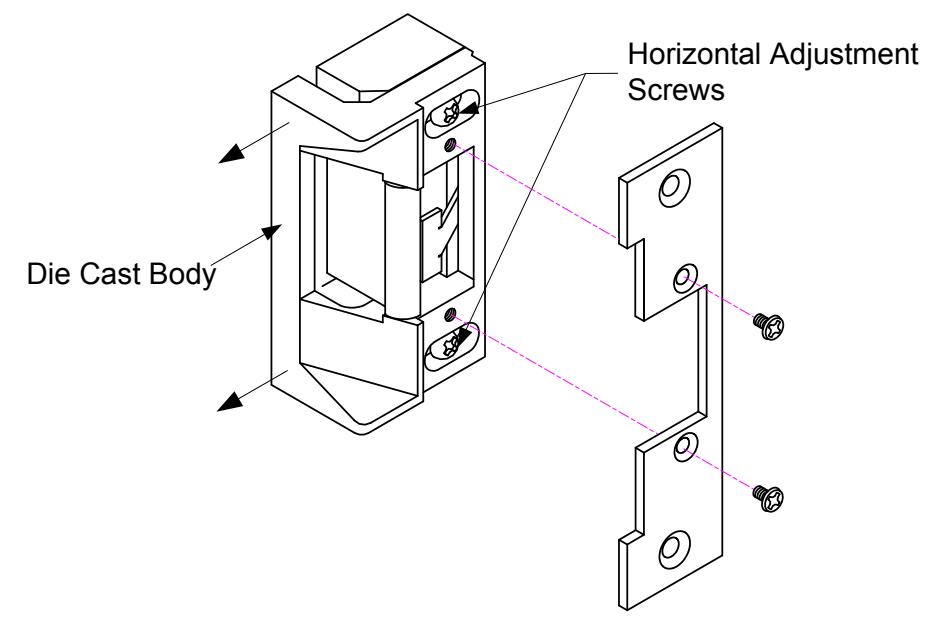

Horizontal Adjustment

Remove Faceplate. Loosen Horizontal Adjustment Screws and slide Die Cast Body out as needed. Retighten Adjustment Screws and replace Faceplate.

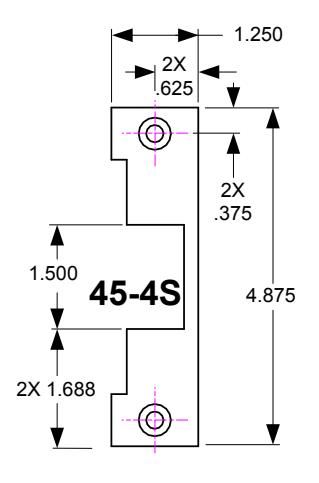

HOLLOW METAL, SQUARE CORNER FACEPLATE

MATERIAL THICKNESS = .110

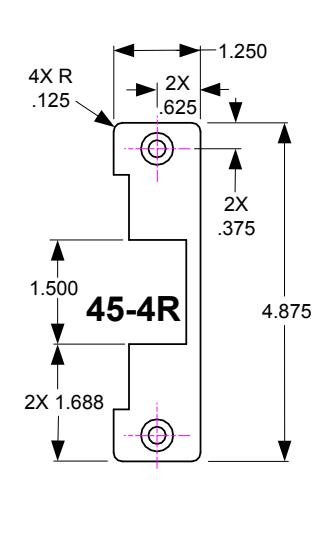

ALUMINUM RADIUS CORNER FACEPLATE

MATERIAL THICKNESS = .110

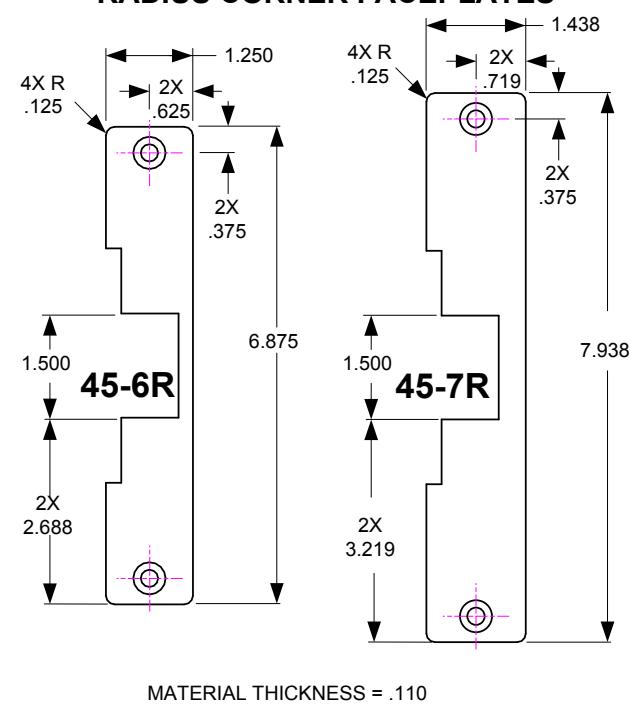

ALUMINUM / WOOD RADIUS CORNER FACEPLATES

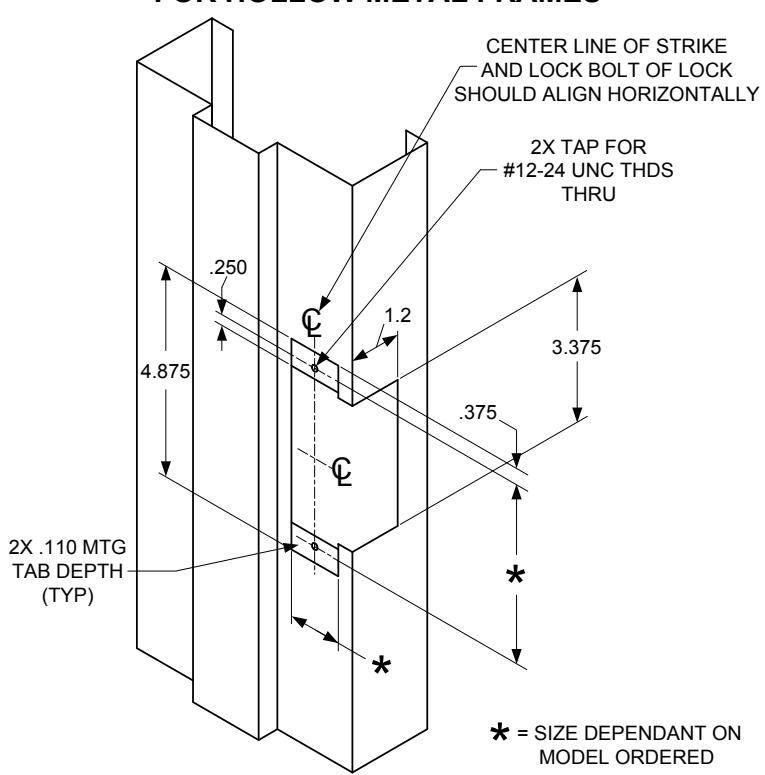

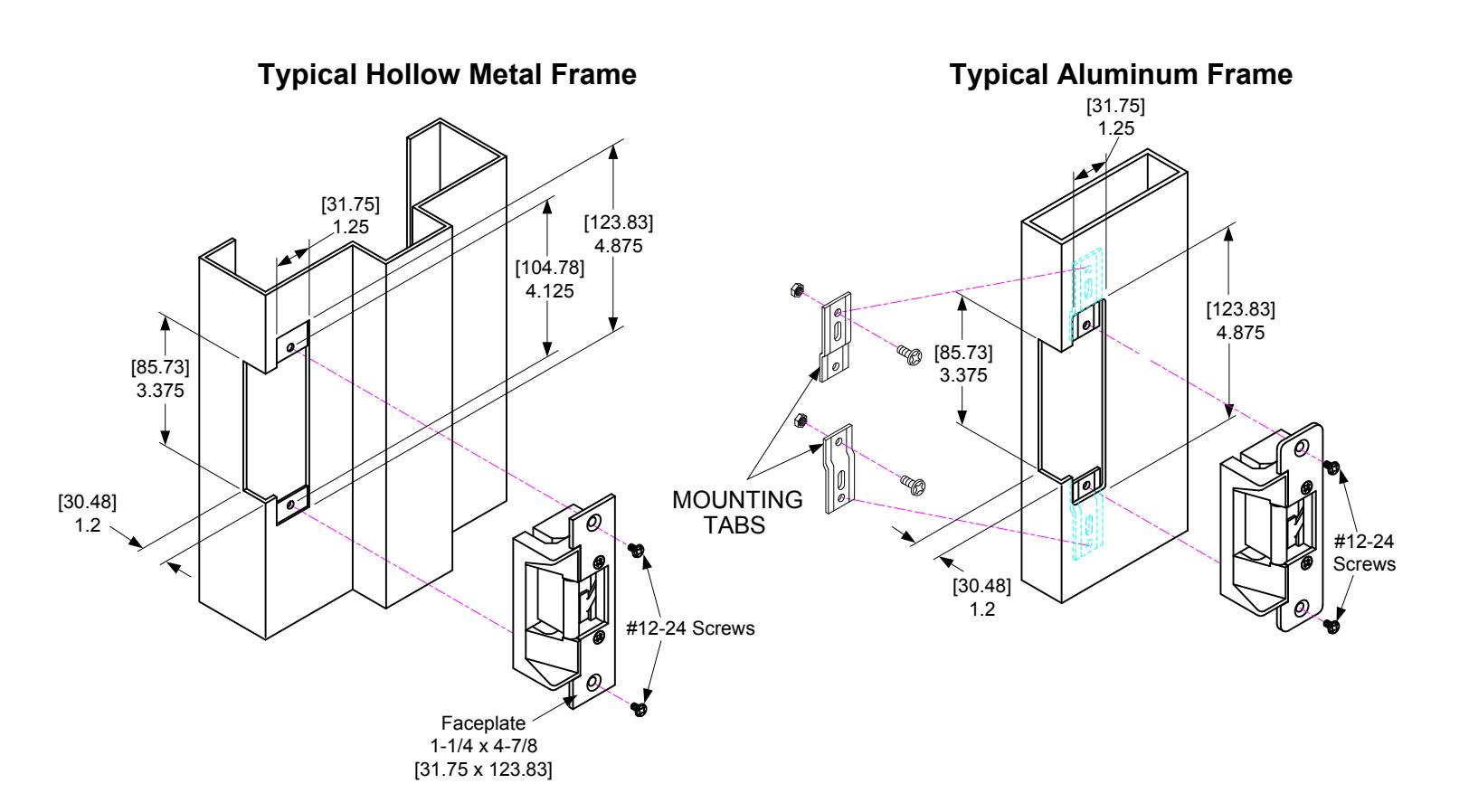

45 SERIES ELECTRIC STRIKE FRAME PREPARATION FOR HOLLOW METAL FRAMES
