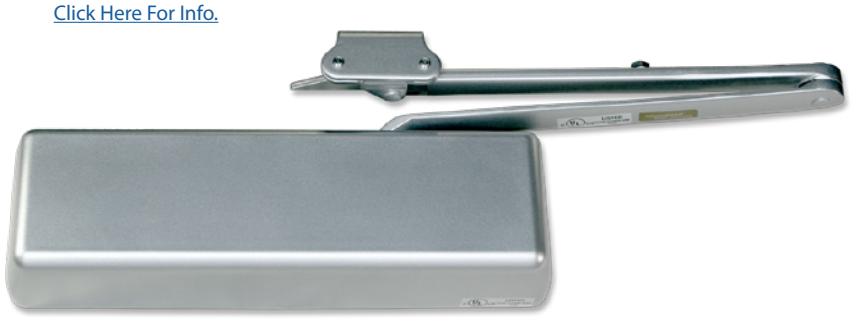

AD JUSTABLE SPRING POWER SURFACE APPLIED GRADE 1 CLOSER

  • Application for HIGH TRAFFIC Doors

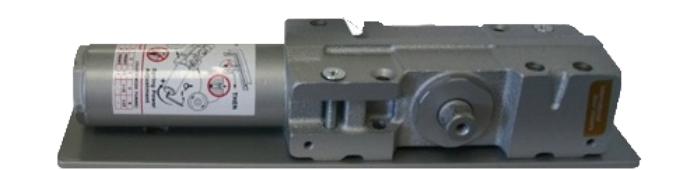

  • Cast Iron Body; Forged Steel Arm
  • Double Heat Treated Steel Pinion
  • All Weather Fluid
  • Non-Handed
  • Non-Sized Adjustable 1 Through 6; Standard with Back Check
  • Universal Application for Regular Arm, Top Jamb, or Parallel Arm Mounting
  • Standard Plastic Cover Non Handed
  • Hold-open arms are adjustable for holding from 85° to 180°.
  • 5 YEAR WARRANTY

  • Metal Cover
  • Heavy Duty Arm (EDA)
  • Hold-Open arm
  • Stop Only Arm
  • Friction Hold Open Arm

FINISHES

  • AL Aluminum
  • DU Storefront Bronze

5 YEAR WARRANTY

(Other finishes available by Special Order)

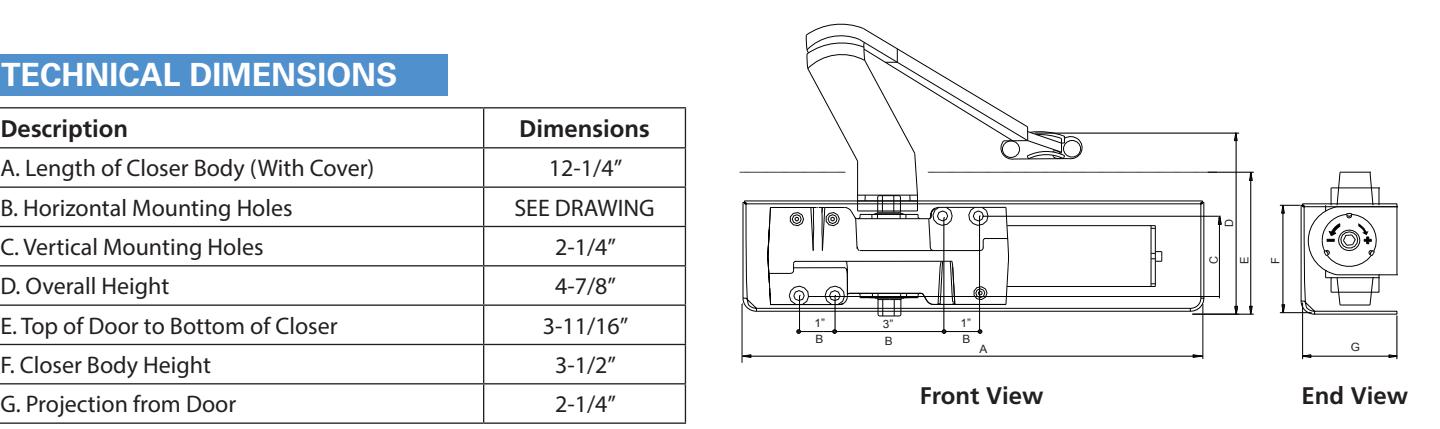

TECHNICAL DIMENSIONS

Description Dimensions
A. Length of Closer Body (With Cover) 12-1/4"
B. Horizontal Mounting Holes SEE DRAWING
C. Vertical Mounting Holes 2-1/4"
D. Overall Height 4-7/8"
E. Top of Door to Bottom of Closer 3-11/16"
F. Closer Body Height 3-1/2"

International Door Closers, Inc.

West: 800-544-4422 • East: 800-225-6737 COPYRIGHT 2021 INTERNATIONAL DOOR CLOSERS, INC www.intldoorclosers.com

INSTALLATION TYPES

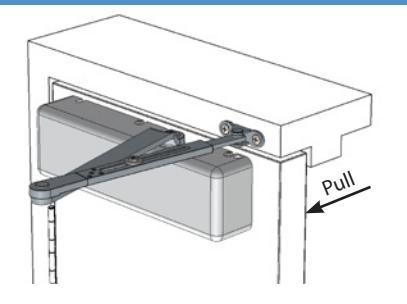

Regular Arm (Pull Side) Permits 120° maximum opening

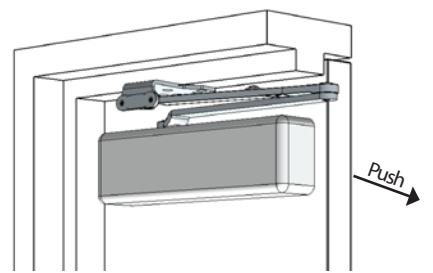

Top Jamb (Push Side) Permits 120° maximum opening

Parallel Arm (Push Side) Permits 180° maximum opening

PARTS AND ACCESSORIES PART NO.

Plastic Dress Cover DC-44
Metal Dress Cover (special order) DC-44M
Complete Arm Assembly 44-2021
Cushion - Hold-open arm - Mechanical Turn Type 44-2022
Cushion Stop Arm 44-2023
Friction Hold Open Arm 44-2024
Heavy Duty Arm (EDA) 44-2026
Parallel Bracket 425
Drop Plate for Pull Side installation when top Door Rail is less
than 3-3/4". Requires a 2" minimum height Door Rail. 		44-18
Drop Plate for Top Jamb installation when ceiling is flush to
top of Header. Requires a minimum 1-3/4" header height. 		44-18G
Drop Plate for Top Jamb installation on Door Headers less
than 3-1/2" in height. 		44-18J
Drop Plate for Parallel Arm installation on Door Rails less than
5-1/2" (measured down from the door stop). Requires a 2"
minimum height Door Rail. 		44-18PA

SPECIFY FINISH:

  • AL Aluminum
  • DU Storefront Bronze
