44443 Template – Angle Jamb Bracket for 4400 & 3300A Series Template
Open the original PDF document

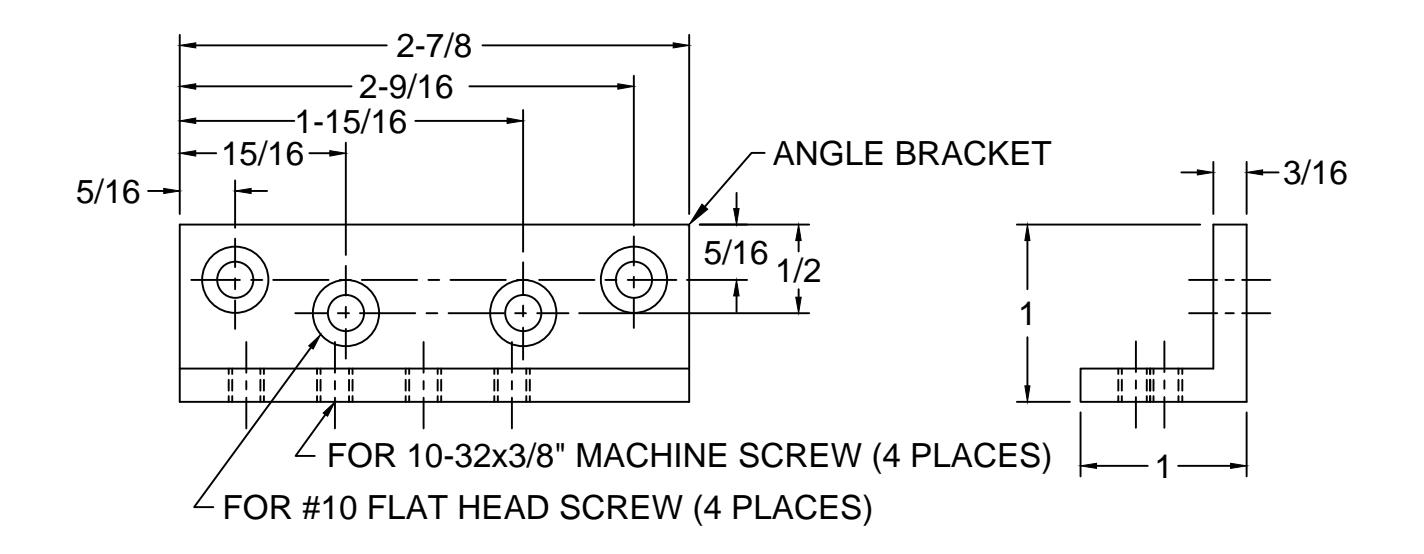

View PDFANGLE BRACKET FOR 3300ADJ & 4400 HOLDERS AND STOPS

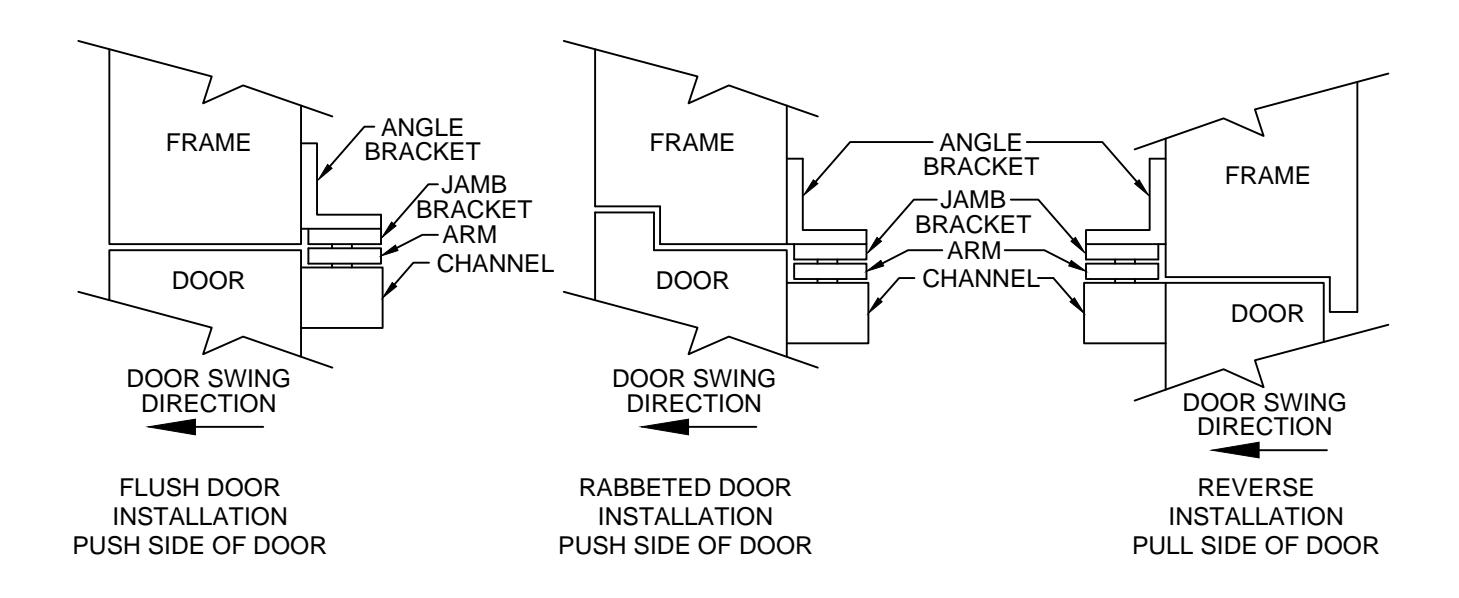

THE ANGLE BRACKET IS SECURED TO THE HEADER WITH WOOD OR MACHINE SCREWS. THE JAMB BRACKET FASTENS TO THE ANGLE BRACKET WITH MACHINE SCREWS. THE CHANNEL MOUNTS ON THE DOOR WITH SEX BOLTS. REVERSE INSTALLATION METHOD IS NOT RECOMMENDED FOR EXTERIOR DOORS OPENING OUT.
www.abhmfg.com E-mail: abhinfo@abhmfg.com Architectural Builders Hardware Mfg., Inc. 1222 Ardmore Ave., Itasca, IL 60143 630.875.9900: FAX 800.9FAXABH (932,9224)
44443-01.DWG
44443
PAGE 1 OF 1 ISSUED 10-24-18
