CROSS SECTION

SCREW DETAIL
QTY WOOD METAL
JAMB 4 • #10 x 1-1/2" FLAT HEAD WOOD SCREW 10-32 x 1/2" FLAT HEAD MACHINE SCREW
DOOR 2 • 10-32 x 1-1/2" TRUSS HEAD MACHINE SCREW
2 • 5/16" DIA. SEX BOLT

NOTES:

  • 1. REVERSIBLE, NON HANDED
  • 2. FOR SINGLE ACTING DOORS ONLY
  • 3. ALL DRILLING & TAPPING TO BE DONE IN FIELD.
  • 4. ALWAYS REQUEST LATEST TEMPLATE/ DRAWING FOR NEW INSTALLATIONS.
  • 5. ALL DIMENSIONS ARE IN INCHES, UNLESS NOTED.
  • 6. DRAWING IS NOT TO SCALE

4400RA-1-00.DWG

4400RA

© 2021 ABH Mfg., Inc. printed in USA

1222 Ardmore Ave., Itasca, IL 60143 630.875.9900; FAX 800.9FAXABH (932.9224)

PAGE 1 OF 2 ISSUED 05-03-21

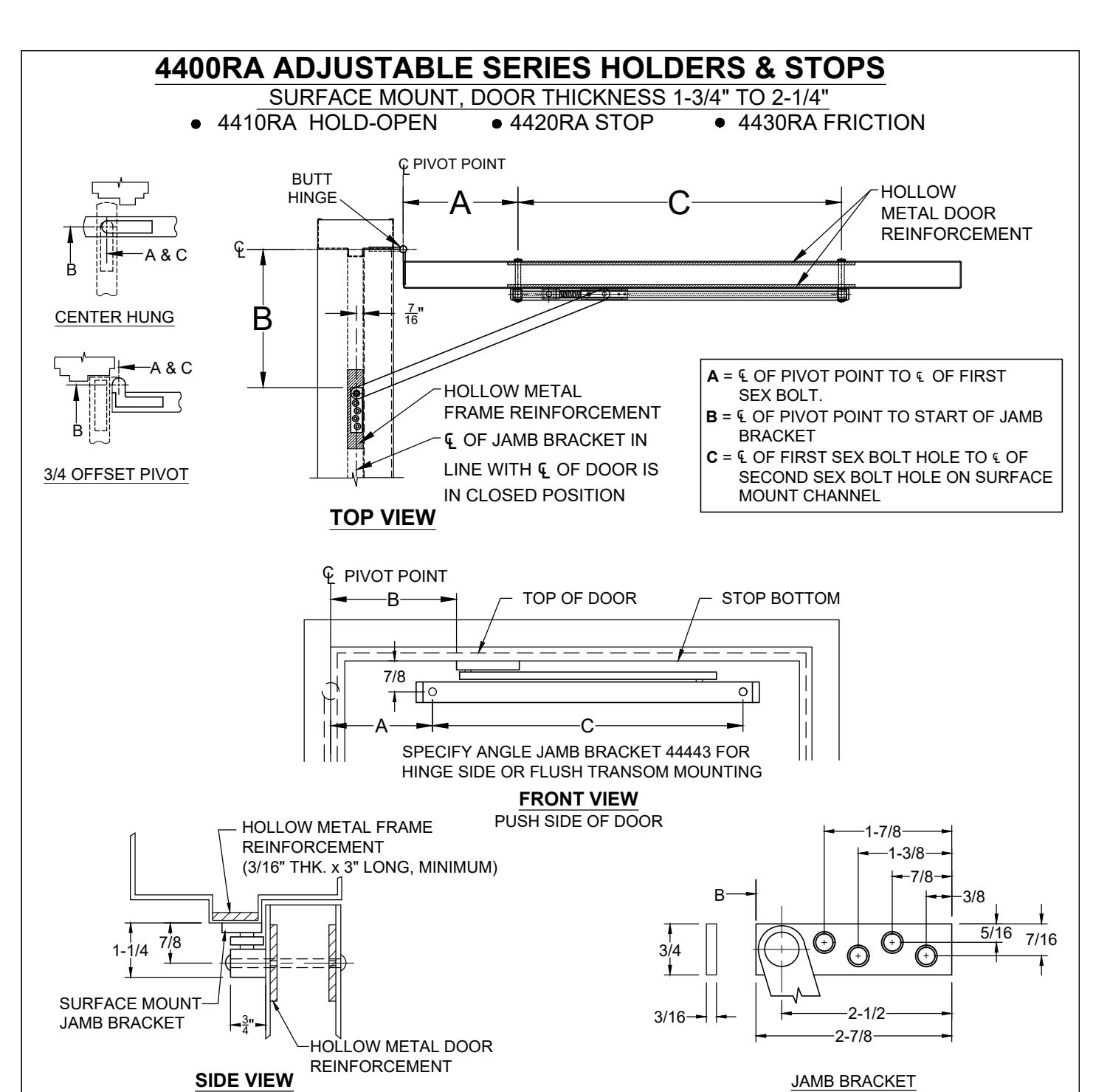

4400RA ADJUSTABLE SERIES HOLDERS & STOPS

SURFACE MOUNT, DOOR THICKNESS 1-3/4" TO 2-1/4", REVERSIBLE, NON-HANDED

  • 4410RA HOLD-OPEN
  • 4420RA STOP
  • 4430RA FRICTION

  • 1. ADD 5/8" TO "A" DIMENSION FOR DEAD STOP.
  • 2. ALL DIMENSIONS ARE IN INCHES.

WHEN USING CENTER HUNG PIVOTS, CHECK PIVOT MANUFACTURER'S COMPATIBILITY PRIOR TO SPECIFYING

BUTT HINGE & 3/4" OFFSET PIVOT
MODEL NUMBER * BUTT HINGE MOUNTING ONLY
HOLD
OPEN 		STOP FRICTION FRAME
OPENING 		Α В С
* 4411RA * 4421RA * 4431RA * 18 TO 24 * 1-3/16 * 3-7/8 14-13/16
4412RA 4422RA 4432RA 24-1/16 TO 30 4-1/4 4-5/8 16
4413RA 4423RA 4433RA 30-1/16 TO 36 6-3/16 5-3/8 17-3/4
4414RA 4424RA 4434RA 36-1/16 TO 42 9-3/8 7-1/8 20-3/16
4415RA 4425RA 4435RA 42-1/16 TO 48 13-5/8 7-1/2 22
CENTER HUNG
MODEL NUMBER
HOLD
OPEN 		STOP FRICTION FRAME
OPENING 		Α В С
4411RA 4421RA 4431RA 21 TO 26-1/2 1-3/4 4-5/8 14-13/16
4412RA 4422RA 4432RA 26-9/16 TO 32 5-3/4 4-5/16 16
4413RA 4423RA 4433RA 32-1/16 TO 38 6-15/16 6-1/8 17-3/4
4414RA 4424RA 4434RA 38-1/16 TO 45 10-1/16 7-13/16 20-3/16
4415RA 4425RA 4435RA 45-1/16 TO 48 14 8-13/16 22

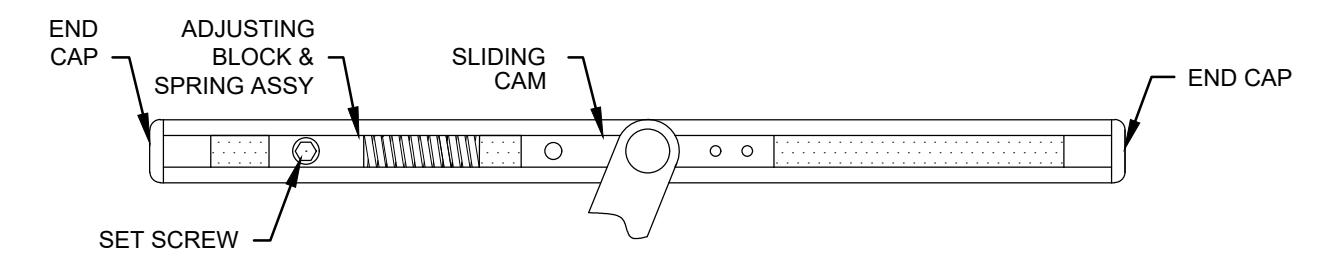

TO SELECT MAX. DEGREE (up to 110°) OF DOOR OPENING

  • a. LOOSEN SET SCREW IN ADJUSTING BLOCK WITH 3/16 HEX KEY
  • b. OPEN DOOR TO DEGREE REQUIRED
  • c. SLIDE ADJUSTING BLOCK/SPRING ASSEMBLY UNTIL THE SPRING TOUCHES SLIDING CAM.
  • d. TIGHTEN SET SCREW
  • e. 110° MAX. DOOR SWING

www.abhmfg.com E-mail: abhinfo@abhmfg.com Architectural Builders Hardware Mfg., Inc. 1222 Ardmore Ave., Itasca, IL 60143 630.875.9900; FAX 800.9FAXABH (932.9224)

PAGE 2 OF 2 ISSUED 05-03-21

4400RA

4400RA-2-00.DWG
