4400HC HOLD CLOSED SERIES SURFACE STOPS

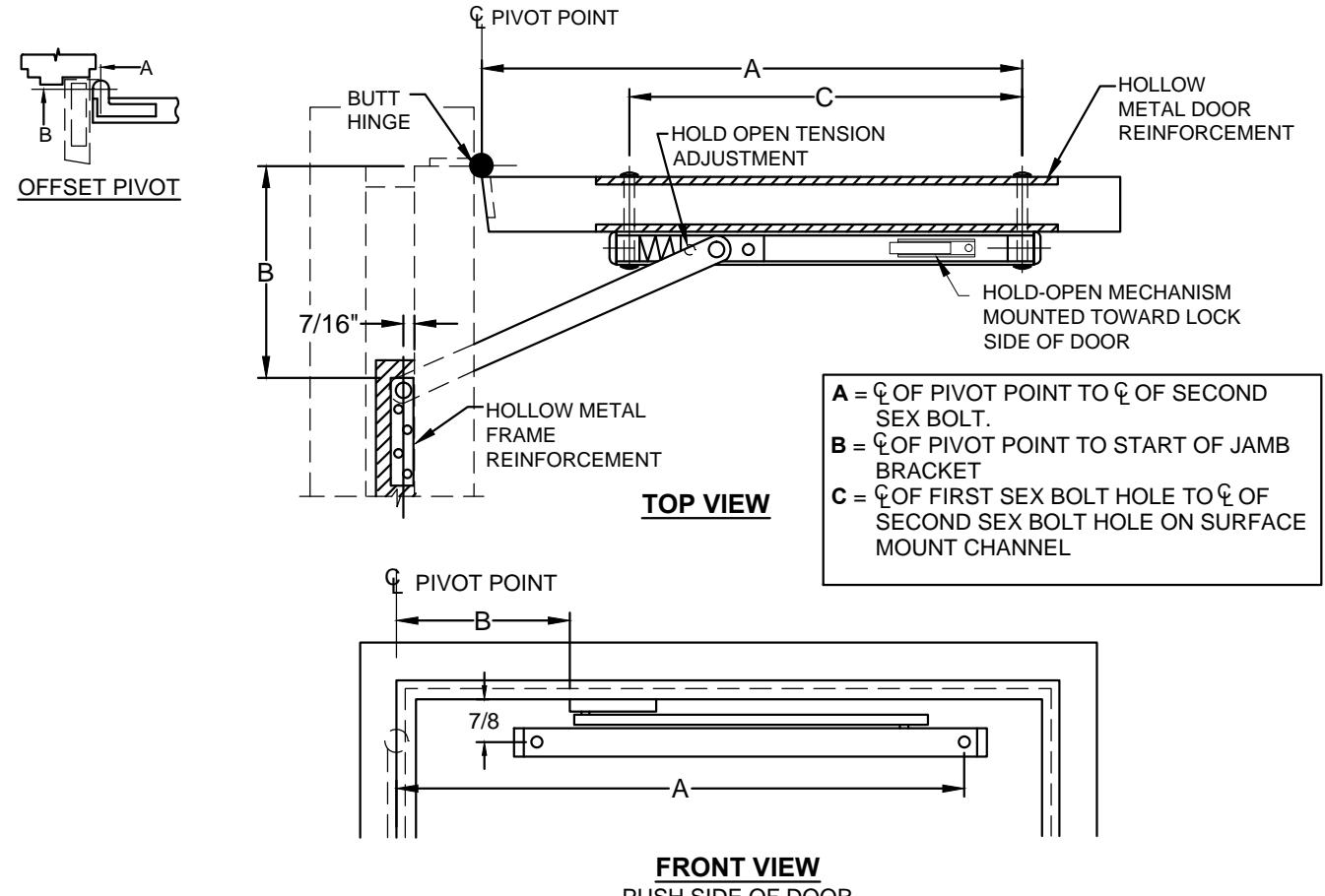

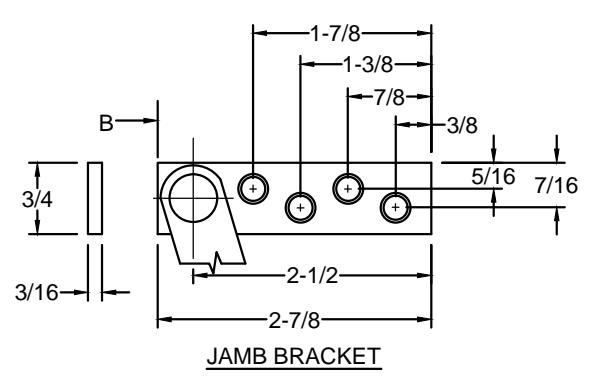

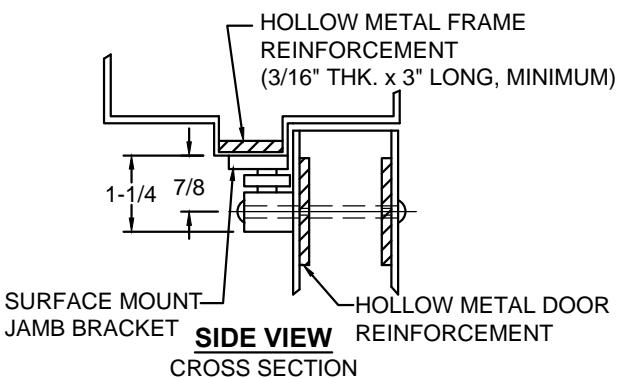

PUSH SIDE OF DOOR

SCREW DETAIL
QTY WOOD METAL
JAMB 4 ● #10 x 1-1/2" FLAT HEAD WOOD SCREW ◆ 10-32 x 1/2" FLAT HEAD MACHINE SCREW
DOOR 2 ● 10-32 x 1-1/2" TRUSS HEAD MACHINE SCREW
● 5/16" DIA. SEX BOLT

NOTES:

  • 1. REVERSIBLE/ NON HANDED
  • 2. FOR SINGLE ACTING DOORS ONLY
  • 3. ALL DRILLING & TAPPING TO BE DONE IN FIELD.
  • 4. ALWAYS REQUEST LATEST TEMPLATE/ DRAWING FOR NEW INSTALLATIONS.
  • 5. ALL DIMENSIONS ARE IN INCHES.
  • 6. DRAWING IS NOT TO SCALE

® www.abhmfg.com

E-mail: abhinfo@abhmfg.com Architectural Builders Hardware Mfg., Inc. 1222 Ardmore Ave., Itasca, IL 60143 630.875.9900; FAX 800.9FAXABH (932.9224)

4400HC

PAGE 1 OF 2 ISSUED 4-28-16

4400HC-1-00.DWG

4400HC HOLD CLOSED SERIES SURFACE FRICTION HOLDERS & STOPS

SURFACE MOUNT

• 4420 STOP • 4430 FRICTION

  • 1. FOR DEAD STOP ADD 3/4" TO "A" DIMENSION
  • 2. ALL DIMENSIONS ARE IN INCHES.

* BUTT & OFFSET PIVOT ONLY

DEGREE 85° H.O. 90° H.O. 95° H H.O. 100° H.O. 105° H.O. 110° H.O.
DOOR THICKNESS
BUTT HINGE, OFFSE 		MODEL
NO. 		DOOR
OPENING 		Α В Α В Α В Α В Α В Α В С
•4421HC 18" TO
23-15/16" 		*
16-9/16 		*
5-9/16 		*
15-13/16 		*
4-13/16 		*
15-9/16 		*
4-1/2 		14-7/16
•4422HC 24" TO
29-15/16" 		21-11/16 5-15/16 21-1/4 5-9/16 20-15/16 5-3/16 20-11/16 4-7/8 20-3/8 4-11/16 21-3/8 4-7/16 15-3/16
•4423HC 30" TO
35-15/16" 		25-1/4 7 24-7/8 6-5/8 24-5/8 6-3/8 24-3/16 5-15/16 23-7/8 5-5/8 23-5/8 5-3/8 17-7/16
•4424HC 36" TO
48" 		27-13/16 7-3/4 27-7/16 7-1/4 27 6-7/8 26-11/16 6-7/16 26-5/16 6-3/16 26 5-7/8 18-3/16

www.abhmfg.com E-mail: abhinfo@abhmfg.com Architectural Builders Hardware Mfg., Inc. 1222 Ardmore Ave., Itasca, IL 60143

630.875.9900; FAX 800.9FAXABH (932.9224)

4400HC-2-00.DWG

4400HC PAGE 2 OF 2

ISSUED 04-27-16
