4400 SERIES SURFACE HOLDERS & STOPS

SURFACE MOUNT

•4410 HOLD-OPEN

•4420 STOP

•4430 FRICTION

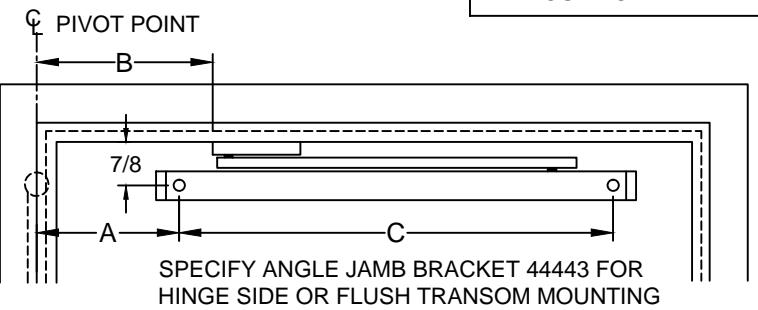

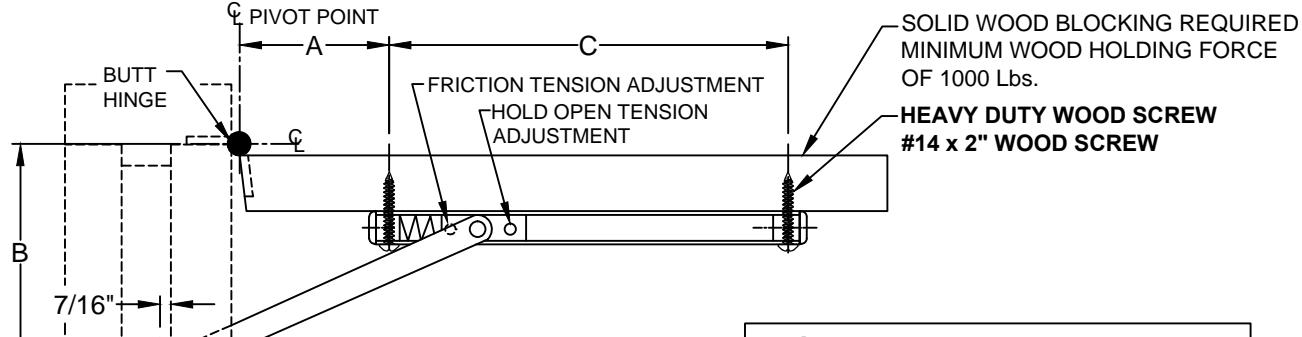

TOP VIEW

  • A = € OF PIVOT POINT TO € OF FIRST SCREW.
  • B = € OF PIVOT POINT TO START OF JAMB BRACKET
  • C = € OF FIRST SCREW HOLE TO € OF SECOND SCREW HOLE ON SURFACE MOUNT CHANNEL

PUSH SIDE OF DOOR 1-7/8 3/4 3/4 3/16 2-1/2 JAMB BRACKET SURFAC JAMB BF

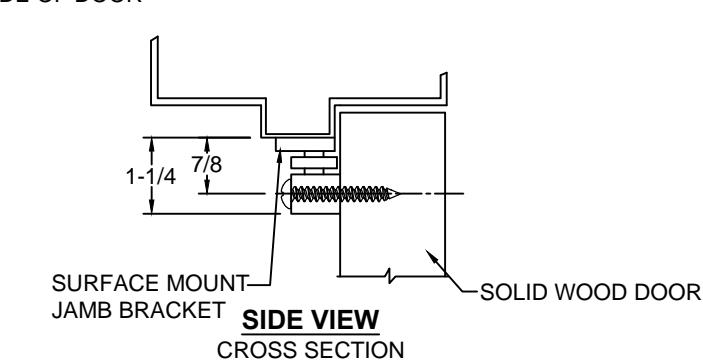

SCREW DETAIL
QTY WOOD
JAMB 4 ● #10-32 x 1-1/2" FLAT HEAD WOOD SCREW
DOOR 2
  • #14 x 2" PHILLIPS PAN HEAD
    WOOD SCREW (1-3/4" THK. DOOR)
    OR
  • #14 x 1-3/4" PHILLIPS PAN HEAD
    WOOD SCREW (1-3/8" THK. DOOR)

NOTES:

  • 1. REVERSIBLE/ NON HANDED
  • 2. FOR SINGLE ACTING DOORS ONLY
  • 3. ALL DRILLING & TAPPING TO BE DONE IN FIELD.
  • ALWAYS REQUEST LATEST TEMPLATE/ DRAWING FOR NEW INSTALLATIONS.
  • 5. ALL DIMENSIONS ARE IN INCHES.
  • 6. DRAWING IS NOT TO SCALE

SP-4733.DWG

® www.abhmfg.com

E-mail: abhinfo@abhmfg.com Architectural Builders Hardware Mfg., Inc. 1222 Ardmore Ave., Itasca, IL 60143 630.875.9900; FAX 800.9FAXABH (932.9224)

© 2017 ABH Mfg., Inc. printed in USA

PAGE 1 OF 2 REVISED 07-19-17

SP-4733

4400 SERIES SURFACE HOLDERS & STOPS

SURFACE MOUNT

•4410 HOLD-OPEN

●4420 STOP

•4430 FRICTION

  • 1. FOR DEAD STOP ADD 3/4" TO "A" DIMENSION
  • 2. ALL DIMENSIONS ARE IN INCHES.

* BUTT & OFFSET PIVOT ONLY

DOOR DEGREE 85° H.O. 90° H.O. 95° H.O. 100° H.O. 105° H.O. 110° H.O.
THICK-
NESS 		MODEL
NO. 		DOOR
OPENING 		Α В Α В Α В Α В Α В Α В С
1-3/4"
TO
2-3/8" 		• 4411
• 4421
• 4431 		18" TO
23-15/16" 		*
2-1/2 		*
5-1/8 		* 2-3/16 *
4-13/16 		*
4-1/2 		*
1-11/16 		*
4-5/16 		_ 13-11/16
BUTT • 4412
• 4422
• 4432 		24" TO
29-15/16" 		5 6-3/4 4-5/8 6-3/8 4-1/4 6 3-15/16 5-11/16 3-11/16 5-7/16 15-9/16
HINGE,
SWING
CLEAR
HINGE, 		• 4413
• 4423
• 4433 		30" TO
35-15/16" 		10 7-11/16 9-1/2 7-3/16 9-1/16 6-3/4 8-3/4 6-7/16 8-7/16 6-1/8 8-1/8 5-13/16 16-7/16
OFFSET
PIVOT
  • 4414
  • 4424
  • 4434
36" TO
48" 		14-3/8 9-3/16 13-13/16 8-5/8 13-5/16 8-1/8 12-7/8 7-11/16 12-1/2 7-5/16 12-1/8 6-15/16 18-1/16
DOOR DE GREE 85° H.O. 90° H.O. 95° H.O. 100° H.O. 105° H.O. 110° H.O.
THICK-
NESS 		MODEL
NO. 		DOOR
OPENING 		Α В Α В Α В Α В Α В Α В С
1-3/8"
TO
1-5/8" 		• 4411
• 4421
• 4431 		18" TO
23-15/16" 		* 2-3/4 *
5-3/8 		*
2-7/16 		*
5-1/16 		* 2-1/8 *
4-3/4 		*
1-15/16 		*
4-9/16 		_ _ 13-11/16
BUTT • 4412
• 4422
• 4432 		24" TO
29-15/16" 		5-1/4 7 4-7/8 6-5/8 4-1/2 6-1/4 4-3/16 5-15/16 3-15/16 5-11/16 _ 15-9/16
HINGE,
SWING
CLEAR
HINGE,
  • 4413
  • 4423
  • 4433
30" TO
35-15/16" 		10-1/4 7-15/16 9-3/4 7-7/16 9-5/16 7 9 6-11/16 8-11/16 6-3/8 8-3/8 6-1/16 16-7/16
OFFSET
PIVOT 		• 4414
• 4424
• 4434 		36" TO
48" 		14-5/8 9-7/16 14-1/16 8-3/4 13-9/16 8-3/8 13-1/8 7-15/16 12-3/4 7-9/16 12-3/8 7-3/16 18-1/16
DOOR
THICK-
NESS
1-3/8"
TO
2-3/8" 		DE GREE 85° H.O. 90° H.O. 95° H.O. 100° H.O. 105° H.O. 110° H.O.
MODEL
NO. 		DOOR
OPENING 		Α В Α В Α В Α В А В А В С
  • 4411
  • 4421
  • 4431
22" TO
27-7/16" 		3-1/8 5-3/4 2-13/16 5-7/16 2-1/2 5-1/8 2-5/16 4-15/16 2-3/16 4-13/16 2 4-5/8 13-11/16
• 4412
• 4422
• 4432 		27-1/2"
TO
33-7/16" 		5-5/8 7-3/8 5-1/4 7 4-7/8 6-5/8 4-9/16 6-5/16 4-5/16 6-1/16 4-1/16 5-13/16 15-9/16
CENTER
HUNG 		• 4413
• 4423
• 4433 		33-1/2"
TO
38-15/16" 		10-5/8 8-5/16 10-1/8 7-13/16 9-11/16 7-3/8 9-3/8 7-1/16 9-1/16 6-3/4 8-3/4 6-7/16 16-7/16
• 4414
• 4424
• 4434 		39" TO
48" 		15 9-13/16 14-7/16 9-1/4 13-15/16 8-3/4 13-1/2 8-5/16 13-1/8 7-15/16 12-3/4 7-9/16 18-1/16

® www.abhmfg.com

E-mail: abhinfo@abhmfg.com Architectural Builders Hardware Mfg., Inc. 1222 Ardmore Ave., Itasca, IL 60143 630.875.9900; FAX 800.9FAXABH (932.9224)

SP-4733-1

SP-4733.DWG

PAGE 2 OF 2 REVISED 07-08-17
