4400 SERIES SURFACE HOLDERS & STOPS - METRIC

SCREW DETAIL
QTY WOOD METAL
JAMB 4 ● #10 x 1-1/2" FLAT HEAD WOOD SCREW ● 10-32 x 1/2" FLAT HEAD
MACHINE SCREW
DOOR 2
  • 10-32 x 1-1/2" TRUSS HEAD
    MACHINE SCREW
  • 5/16" DIA. SEX BOLT
  • 10-32 x 1-1/2" TRUSS HEAD
    MACHINE SCREW
  • 5/16" DIA. SEX BOLT

NOTES:

  • 1. REVERSIBLE/ NON HANDED
  • 2. FOR SINGLE ACTING DOORS ONLY
  • 3. ALL DRILLING & TAPPING TO BE DONE IN FIELD.
  • ALWAYS REQUEST LATEST TEMPLATE/ DRAWING FOR NEW INSTALLATIONS.
  • 5. ALL DIMENSIONS ARE IN MILLIMETERS, UNLESS NOTED OTHERWISE.
  • 6. DRAWING IS NOT TO SCALE

4400 METRIC-1-03.DWG

www.abhmfg.com E-mail: abhinfo@abhmfg.com Architectural Builders Hardware Mfg., Inc. 1222 Ardmore Ave., Itasca, IL 60143 630.875.9900; FAX 800.9FAXABH (932.9224)

© 2017 ABH Mfg., Inc. printed in USA

PAGE 1 OF 2 REVISED 10-18-17

4400 SERIES SURFACE HOLDERS & STOPS - METRIC

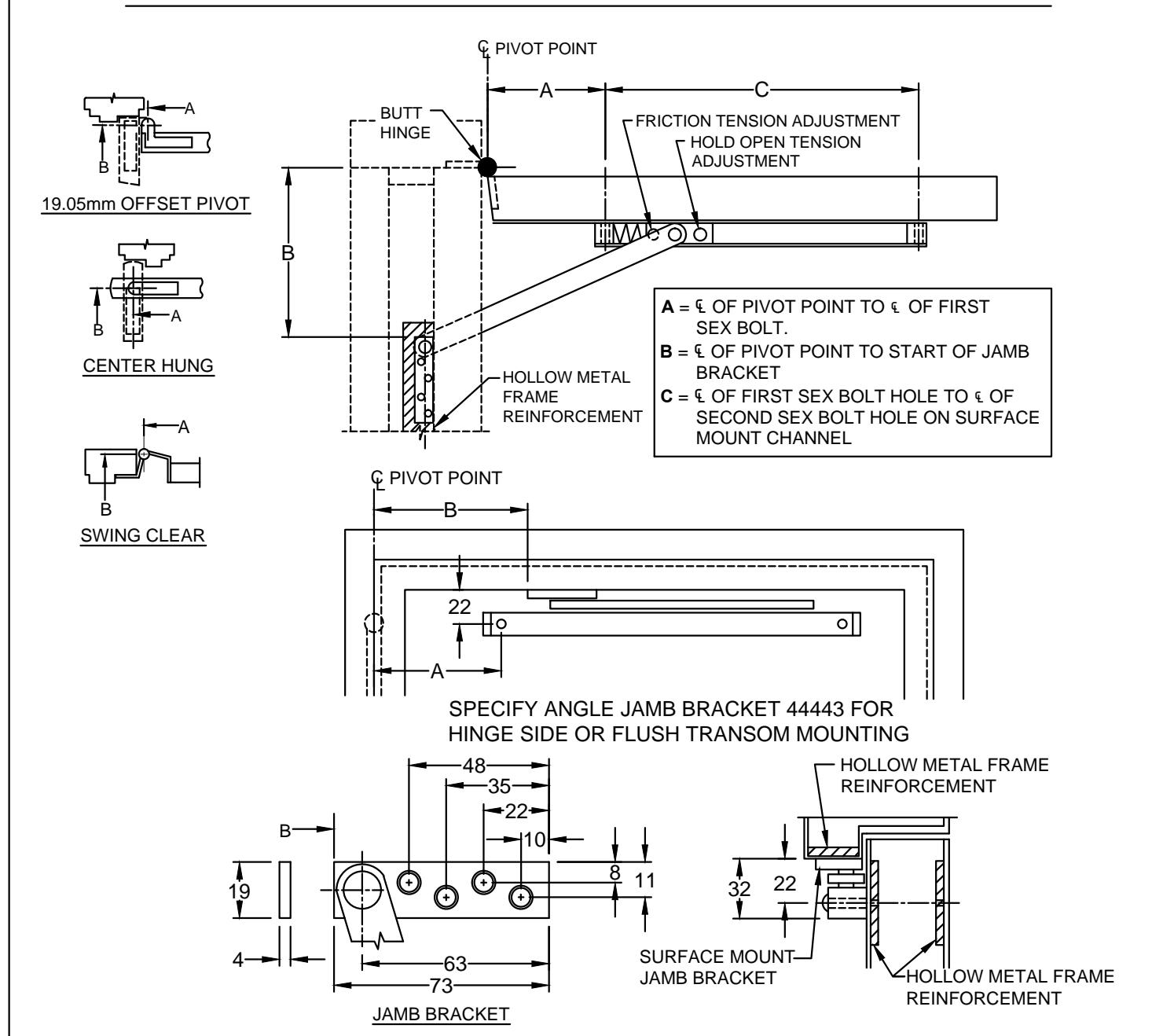

SURFACE MOUNT

• 4410 HOLD-OPEN

• 4420 STOP

•4430 FRICTION

  • 1. FOR DEAD STOP ADD 19mm TO "A" DIMENSION
  • 2. ALL DIMENSIONS ARE IN MILLIMETERS.

DOOR DEGREE 85° H.O. 90° H.O. 95° H.O. 100° H.O. 105° H.O. 110° H.O.
THICK- MODEL
NO. 		DOOR
OPENING 		А В Α В А В А В Α В А В С
44mm
TO
60mm 		• 4411
• 4421
• 4431 		457 mm
TO
609mm 		64 130 56 122 48 114 43 110 348
• 4412
• 4422
• 4432 		610 mm
TO
761mm 		127 171 117 162 108 152 100 144 94 138 _ 395
BUTT
&
19.05mm 		• 4413
• 4423
• 4433 		762 mm
TO
913mm 		254 195 241 183 230 171 222 164 214 156 206 148 418
OFFSET
PIVOT 		• 4414
• 4424
• 4434 		914 mm
TO
1219mm 		365 233 351 219 338 206 327 195 318 186 308 176 459
DEGREE 85° H.O. 90° H.O. 95° H.O. 100° H.O. 105° H.O. 110° H.O.
DOOR
THICK- 		MODEL
NO. 		DOOR
OPENING 		Α В Α В Α В Α В Α В А В С
35mm
TO
43mm 		• 4411
• 4421
• 4431 		457 mm
TO
609mm 		70 137 62 129 54 121 49 116 348
• 4412
• 4422
• 4432 		610 mm
TO
761mm 		133 178 124 168 114 159 106 151 100 144 395
BUTT
& 		• 4413
• 4423
• 4433 		762 mm
TO
913mm 		260 202 248 189 237 178 229 170 221 162 213 154 418
19.05mm
OFFSET
PIVOT 		• 4414
• 4424
• 4434 		914 mm
TO
1219mm 		371 240 357 222 344 213 333 202 324 192 314 183 459
DEGREE 85° H.O. 90° H.O. 95° H.O. 100° H.O. 105° H.O. 110° H.O.
DOOR
THICK-
NESS 		MODEL
NO. 		DOOR
OPENING 		Α В Α В Α В А В Α В Α В С
• 4411
• 4421
• 4431 		559mm
TO
698mm 		79 146 71 138 64 130 59 125 56 122 51 117 348
35mm
TO
60mm 		• 4412
• 4422
• 4432 		699mm
TO
850mm 		143 187 133 178 124 168 116 160 110 154 103 148 395
CENTER • 4413
• 4423
• 4433 		851 mm
TO
990mm 		270 211 257 198 246 187 238 179 230 171 222 164 418
HUNG • 4414
• 4424
• 4434 		991 mm
TO
1219mm 		381 249 366 235 354 222 343 211 333 202 324 192 459

® www.abhmfg.com

E-mail: abhinfo@abhmfg.com Architectural Builders Hardware Mfg., Inc. 1222 Ardmore Ave., Itasca, IL 60143 630.875.9900; FAX 800.9FAXABH (932.9224)

4400 METRIC-2-03.DWG

4400 METRIC

© 2017 ABH Mfg., Inc. printed in USA REV

PAGE 2 OF 2 REVISED 10-18-17
