4400 Series – Cut Sheet

Open the original PDF document

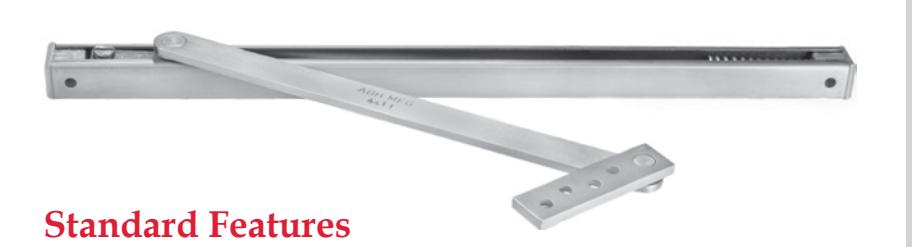

Overhead Holders & Stops

Surface mount
Medium duty
Stop, hold-open and friction functions available
Single acting doors only
Non-handed
weight doors
Standard installation from 85° to 110° of opening (5° increments)
Shock absorbing spring provides 3° to 5° cushion before dead-stop
Standard fasteners supplied with sex bolts for 1-¾" to 1-⅞" thick door (see options for other door thicknesses)
UL Listed as Miscellaneous Fire Door Accessories for use on rated up to 3 hours (stop function only)
Average weight per unit = 2 lbs.

Door Frame Opening		Model Number
Hinges, Swing Clear, Offset Pivots	Center Hung	Hold Open	Stop	Friction
18" - 23-	22" - 27-	4411	4421	4431
24" - 29-	27-½" - 33-	4412	4422	4432
30" - 35-	33-½" - 38-	4413	4423	4433
36" - 48"	39" - 48"	4414	4424	4434
ANSI Code		C05511	C05541	C05531

(see page B-5 for details)

• THICK Fasteners for doors other than 1-¾" to 1-⅞" thick - Specify door thickness
• SEC Security fasteners
• AJB 44443 Angle jamb bracket for pull side mount or push side
• LL For lead-lined door applications
• LS Less shock-absorbing spring for special applications
• N All stainless steel (non-ferrous) components for wet environments to prevent corrosion
• T Jamb bracket is replaced with a threaded pivot screw and nylon washer
• HC Hold closed
• CL For use with cam lift hinges
• HC Hold Closed
• SPECIAL Contact ABH if the dimensions, hardware or is shown on the template or if additional hardware is being used at the top of the door. A custom application and/or unit may be required.
If using a closer, please go to our website and reference "ABH Overhead Holder & Stop Compatibility Chart" to

• Stainless steel is the standard base material for arm, channel
