INSTALLATION INSTRUCTIONS

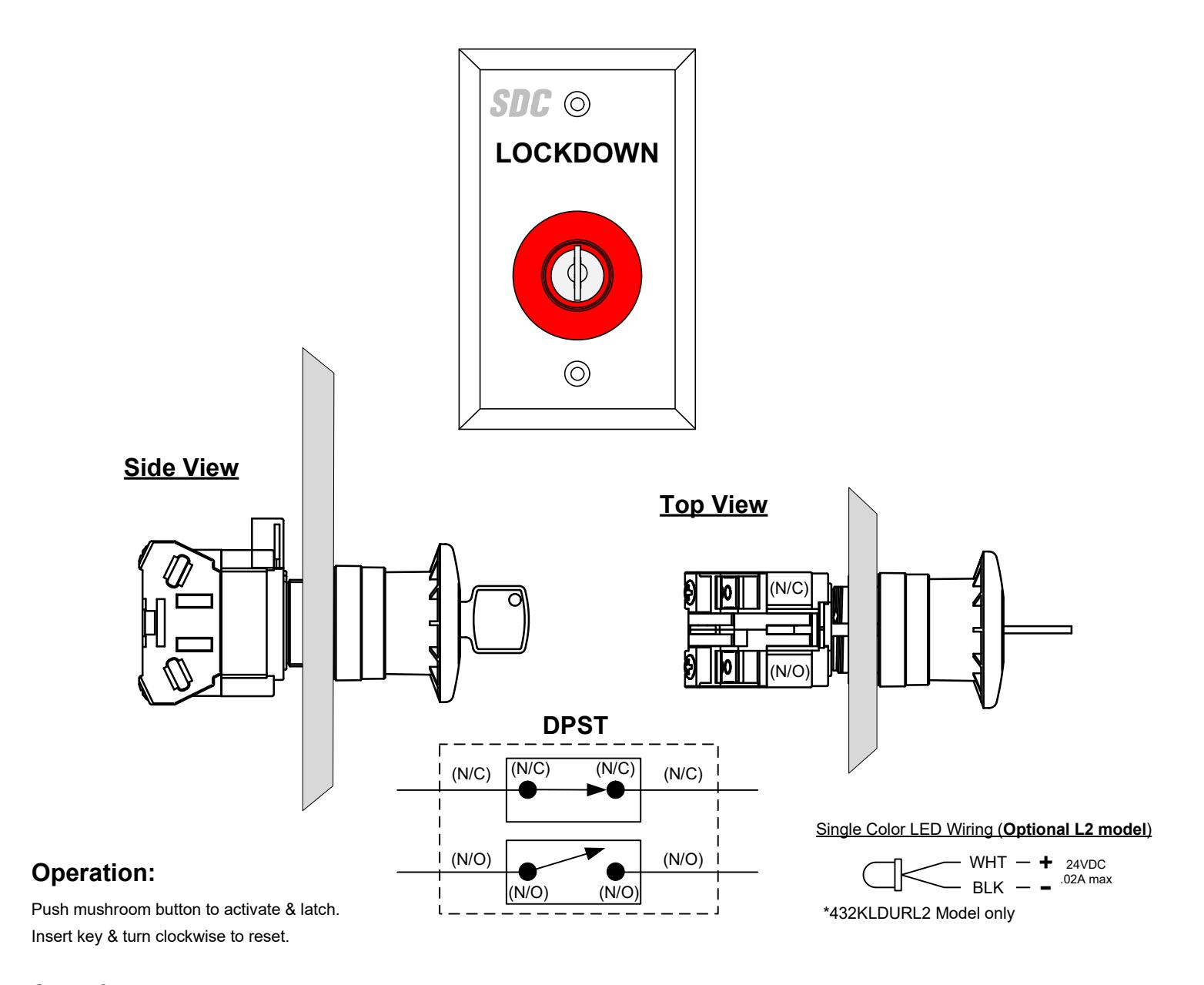

432KLDUR LOCKDOWN PUSH SWITCH
Specification:
Mounting: Single-Gang, 2" Depth Min. Overall Dimensions: 2-78" H x 4-5/8" W x 3-1/4" D
(De-Activated, Less Key) Plate Finish:
630 (US32D)
Contact Type :
DPST (1 N/C & 1 N/O)
Contact Rating : 24VDC @ 3 AMPS (Resistive/Inductive)
Wire Size: 12~22AWG (Single)
UL 294 Performance Rating
Level I: Line Security / Destructive Attack / Standby Power
Level IV: Endurance
To be used with a Class 2 power supply or voltage compatible UL 294 or UL 603 listed power supply
Compliance with ANSI/NFPA 70 National Electrical Code
All peripheral modules for UL compliance are required to be UL Listed UL 294.
