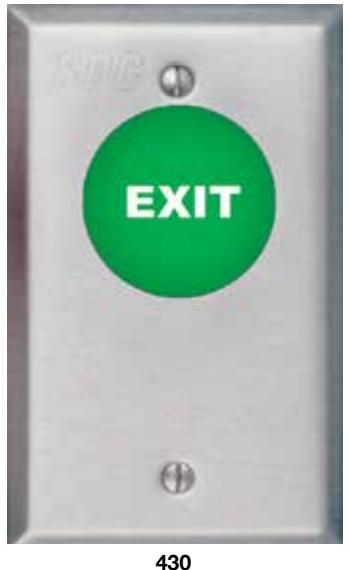

430 Series Mushroom

Exit Switches

The SDC 430 Heavy Duty Industrial Series incorporates a 1 1/2" round mushroom button with heavy duty contacts. The assembly is capable of withstanding high impact and is ideal for heavy duty high frequency use.

The SDC 432KLDUR and 432KUR latches when depressed and must be reset with the built-in-key. Applications include alarm, panic alarm and emergency door release where systems are restored by authorized personnel only. Red Button Standard

FEATURES

• 1.5" Mushroom Exit Switches
• Heavy Duty to Withstand Impact
• Water Resistant Contacts
• Ideal for High Frequency Use
• Green Button standard -Specify R for Red Button

SPECIFICATIONS

Contact	6 Amp @ 30VDC Resistive
Wire Connection	Screw Terminals
1 Gang	2 7/8" x 4 1/2" x 20 Ga.
Narrow	1 3/4" x 4 1/2" x 20 Ga.
2 Gang	4 1/2" x 4 1/2" x 20 Ga.
Weight	0.5 lbs

430N

1

PRODUCT SKU SAMPLE: 432ON U LT

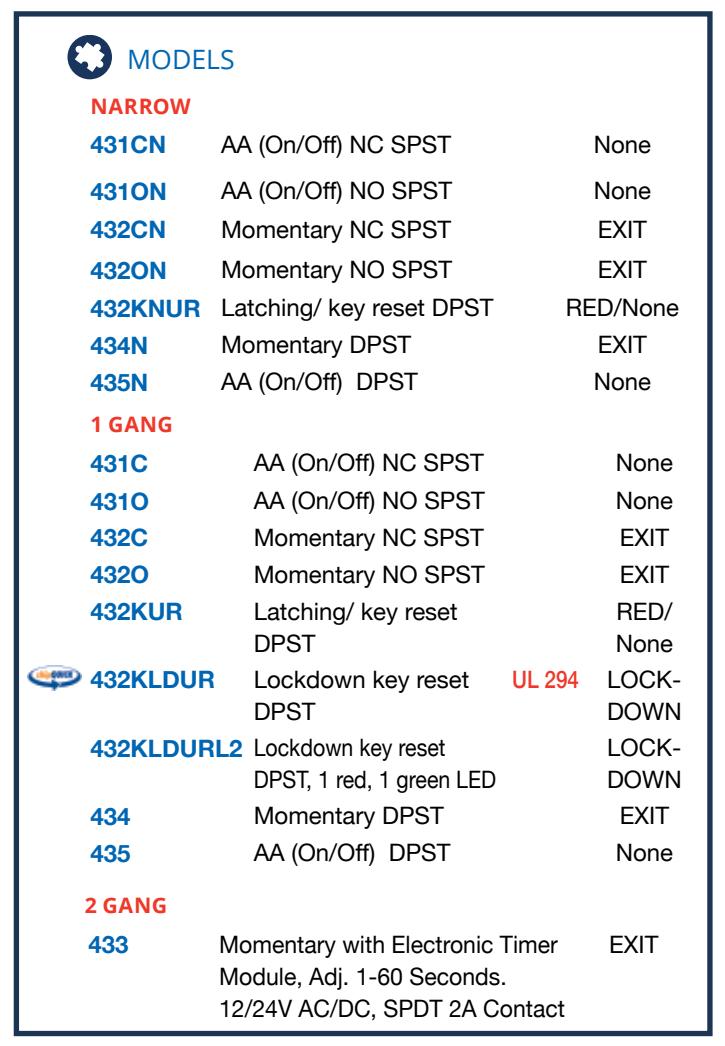

1| SPECIFY MODELS

		NARROW

431CN	AA (On/Off) NC SPST	None
			NARROW
431ON	AA (On/Off) NO SPST	None	432KNUR Narrow RED/
432CN	Momentary NC SPST	EXIT	Latching/ key reset DPST None
432ON	Momentary NO SPST	EXIT	Stainless Steele Finish Standard - contact factory for special finish

434N Momentary DPST EXIT 1 GANG

435N AA (On/Off) DPST None

1 GANG 431C AA (On/Off) NC SPST None 431O AA (On/Off) NO SPST None 432C Momentary NC SPST EXIT 432O Momentary NO SPST EXIT 432KLDUR 1 Gang Lockdown key reset DPST UL 294 RED/ LOCKDOWN 432KLDURL2 1 Gang Lockdown key reset DPST, one red, one green LED RED/ LOCKDOWN

432KUR 1 Gang

LATCHING MODELS

Latching/ key reset DPST

RED/ None

434 Momentary DPST EXIT 435 AA (On/Off) DPST None Stainless Steele Finish Standard - contact factory for special finish

2 GANG

433 Momentary with Electronic Timer EXIT

Module, Adj. 1-60 Seconds. 12/24V AC/DC, SPDT 2A Contact

2| SPECIFY FINISHES

U 630 Stainless Steel - STANDARD

C 605 Bright Brass D 606 Dull Brass H 613 Oil Rubbed Bronze P 625 Bright Chrome

3| SPECIFY LED OPTIONS

L1G 1 Green LED LT Tri-color LED - Red, L1R 1 Red LED Green, Amber

L2 1 Red,1 Green LED R Red Button in lieu of green
