429306 4S 08, 09, 14 Template

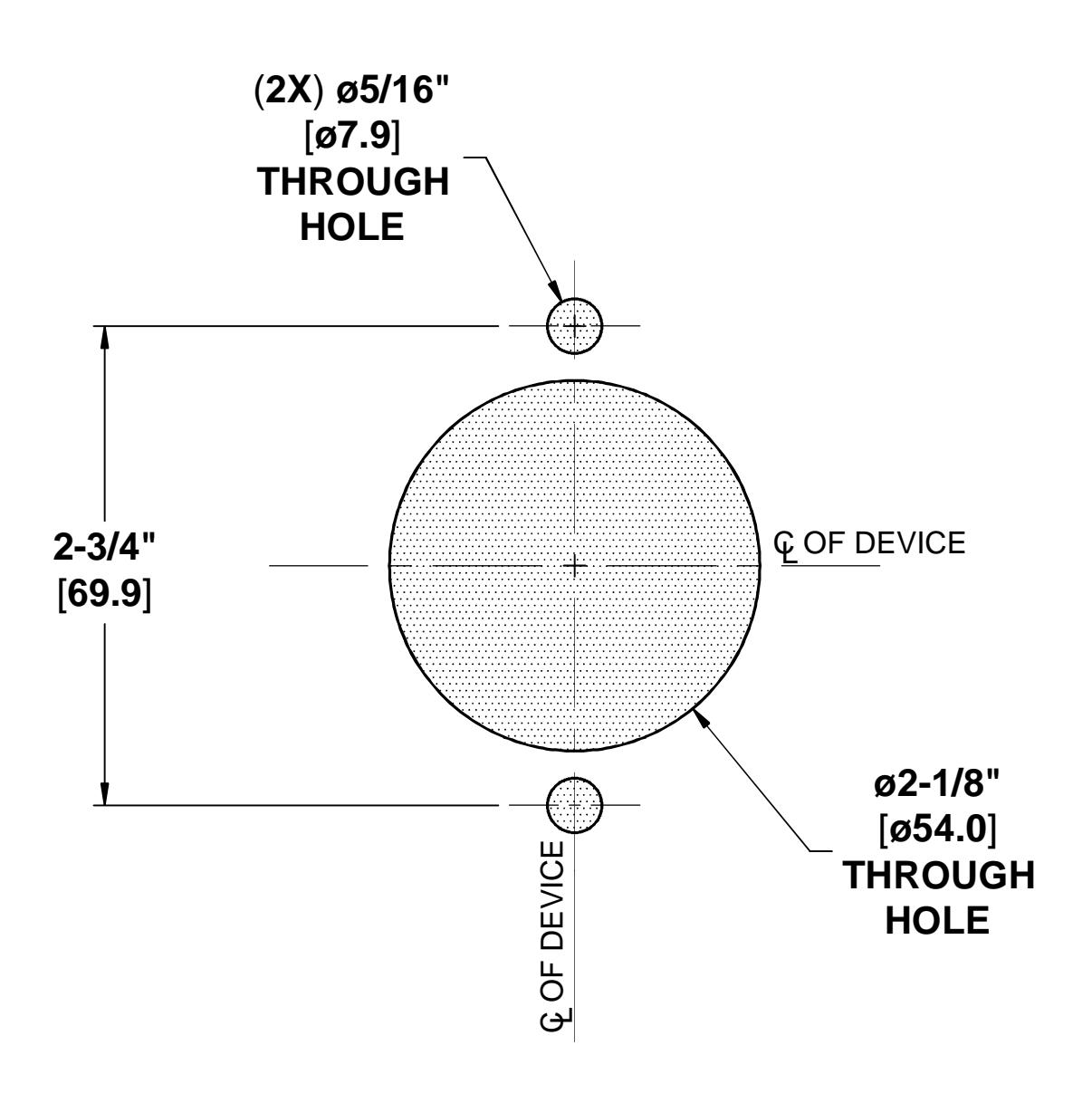

4S SERIES ALL SECTIONAL TRIM MODELS For use with 4200 Series Exit Devices

TEMPLATE: 429306 REV. 1 7-14-15

FOR TRIM	MODELS:
4S 09
4S08
4S14

NOTES:

• 1. VERIFY PRINTED TO SCALE.
• 2. DIMENSIONS IN INCHES [MM]
• 3. SEE EXIT DEVICE TEMPLATE FOR BACKSET DIMENSIONS AND REFERENCE POINTS.
