422 Cam Action Closer RETROFIT Template-421CTB-CHTB to 4

Open the original PDF document

Notes:

1. Right hand door shown. Left hand opposite.
2. Reinforce hollow metal doors and frames per ANSI A250.8 and SDI-100, 12 gauge recommended.
3. Use 1431-J plate when closer body is visible through glass.
4. Maximum opening is 140°.
5. Adjustable hold open range: Up to 140° (holder model only).
6. Auxiliary stop required.

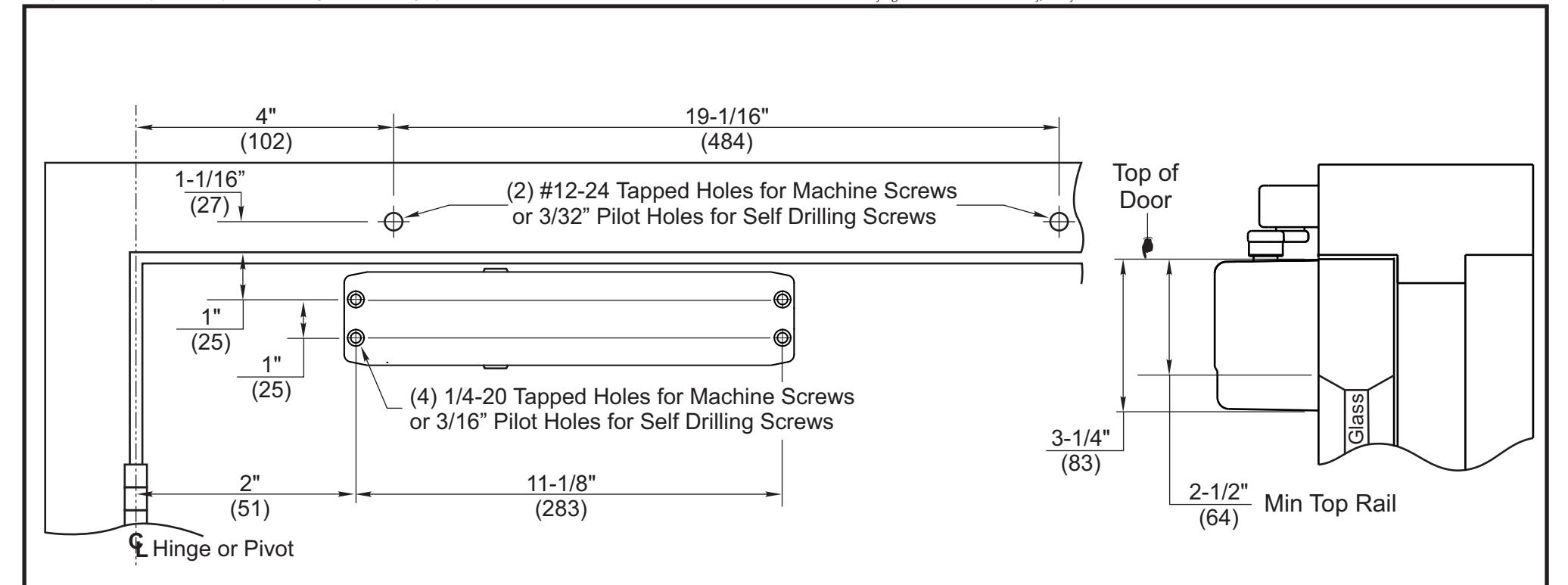

TEMPLATE - 422 SERIES CLOSER WITH CTB2 OR CTHB2 ARMS PULL SIDE APPLICATION RETROFIT - 421CTB/CTHB TO 422CTB2/CTHB2

www.sargentlock.com

TEMPLATE NUMBER REV

4738B 2
