4200 R RA RF RFA Template

4200R - PANIC & 4200RF - FIRE LABELED RIM EXIT DEVICE MODELS FOR 2-1/4" BACKSET FROM STOP

TEMPLATE: 429308. REV. 0 5-7-12

5/8"

Fax: 717-656-6892

www.pdglocks.com

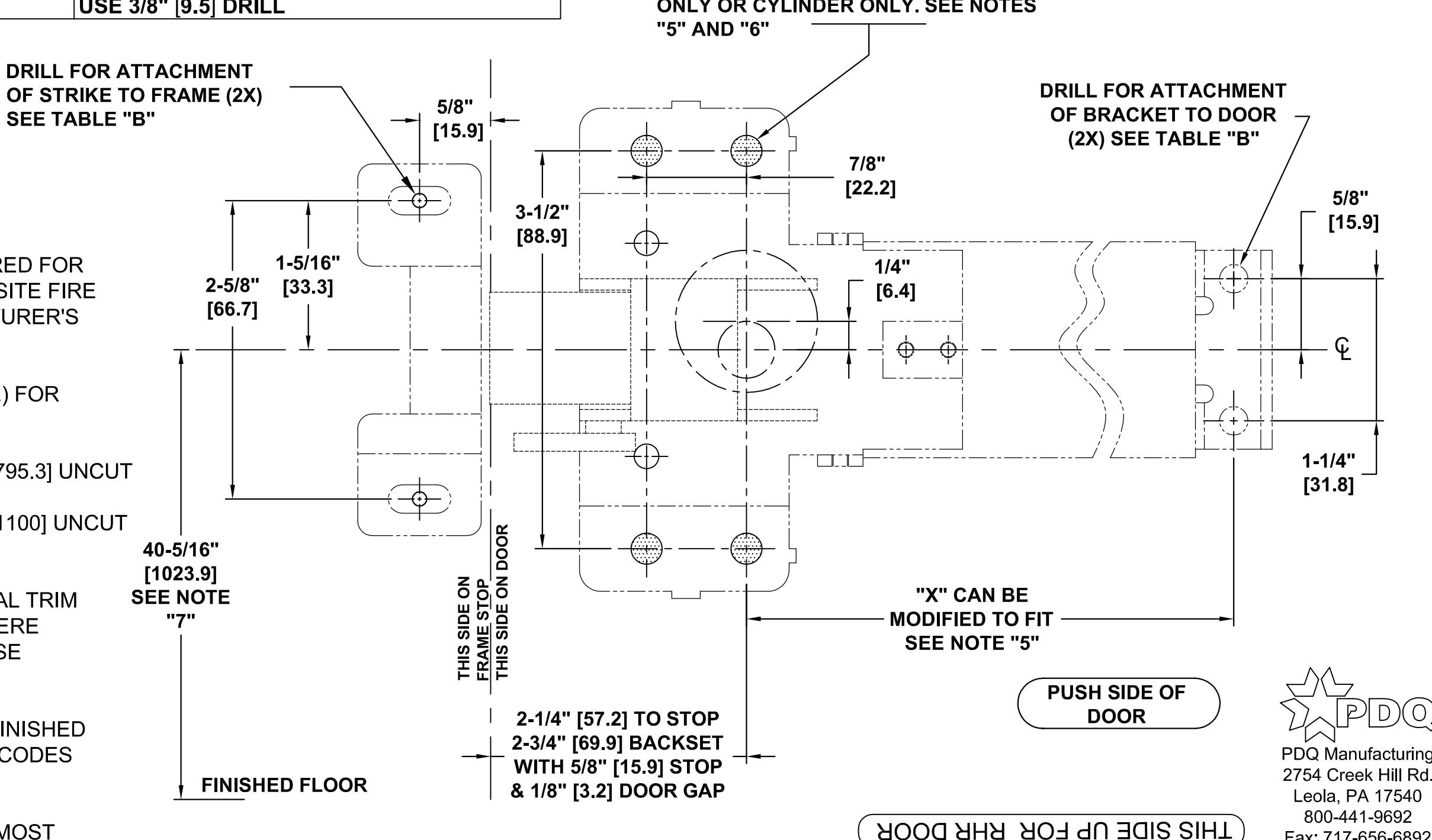

4200 SERIES EXIT DEVICES WITH 429004 STRIKE

TABLE "A" TABLE "B" CHASSIS TO DOOR (IF APPLICABLE) STRIKE TO FRAME/END BRACKET TO DOOR MACHINE SCREWS: MACHINE SCREWS: USE #7 OR 13/64" [5.1] DRILL AND 1/4-20 TAP USE #16 OR 11/64" [4.4] DRILL AND 12-24 TAP WOOD DOOR/FRAME SCREWS: WOOD DOOR/FRAME SCREWS: USE 5/32" [4.0] DRILL USE 1/8" [3.2] DRILL SEX NUTS: SEX NUTS: USE 3/8" [9.5] DRILL USE 3/8" [9.5] DRILL

THIS SIDE UP FOR LHR DOOR

DRILL FOR ATTACHMENT OF DEVICE CHASSIS TO DOOR (4X) IF APPLICABLE. REQUIRED FOR SECTIONAL TRIM, EXIT ONLY OR CYLINDER ONLY, SEE NOTES

NOTES:

• 1. VERIFY PRINTED TO SCALE.
• 2. DIMENSIONS IN INCHES
• 3. CAUTION: SEX NUTS MAY BE REQUIRED FOR UNREINFORCED DOORS OR COMPOSITE FIRE DOORS. CONSULT DOOR MANUFACTURER'S RECOMMENDATIONS.
• 4. SEE TRIM TEMPLATE (IF APPLICABLE) FOR RELATED MACHINING DETAILS.
• 5. DIMENSION "X" MEASURES 31-5/16" [795.3] UNCUT FOR 36" [914.4] DOORS. DIMENSION "X" MEASURES 43-5/16" [1100] UNCUT FOR 48" [1219.2] DOORS.
• 6. SEX NUTS CONFLICT WITH SECTIONAL TRIM (PULL SIDE OF DOOR). IN CASES WHERE THROUGH BOLTING IS REQUIRED, USE ESCUTCHEON TRIM.
• 7. RECOMMENDED DIMENSION FROM FINISHED FLOOR MAY VARY BY APPLICATION, CODES OR BUILDING SPECIFICATIONS.
• 8. ALWAYS CHECK PDQ WEBSITE FOR MOST RECENT REVISION AT WWW.PDQLOCKS.COM
