410 SERIES - 1-3/4" X 1" EXIT SWITCH OPTIONS - SEE PAGE 82 LIST

412N 413N 414N

420 SERIES - 2" EXIT SWITCH LIST NOTE: AA Models Are Not Illuminated Narrow Contact Sign 412NU Momentary SPDT PUSH TO EXIT 77.00 413NU Integrated electronic timer, adj. 1-60 sec. 12/24VDC, 2A DPDT Contact PUSH TO EXIT UL 294 150.00 413PNU Integrated pneumatic timer, adj. 1-180 sec. 12/24VDC, SPDT 3 Amp Contact PUSH TO EXIT 355.00 414NU Momentary DPDT PUSH TO EXIT 94.00 415NU AA (On/Off) DPDT NONE OPTIONS - SEE PAGE 83 117.00

2" Button, Green and Red Illuminated Lens included - Dull Stainless Steel Finish NOTE: AA Models Are Not Illuminated

1¾" x 1" Button - Green and Red Illuminated Lens included - Dull Stainless Steel finish

422	422A
423	423A
424

1 Gang	Contact	Sign
422U	Momentary SPDT	PUSH TO EXIT	77.00
422AU	Momentary SPDT 2" Button - Blue illuminated lens only	Symbol	79.00
423U	Integrated electronic timer, adj. 1-60 sec 12/24VDC, 2A DPDT Contact	PUSH TO EXIT	UL 294 150.00
423PU	Integrated pneumatic timer, adj. 1-45 sec. 12/24VDC, SPDT 3 Amp Contact	PUSH TO EXIT	355.00
423AU	Integrated 1-60 sec Timer 12/24VDC, 2A DPDT Contact 2" Button - Blue illuminated lens only	Symbol	150.00
424U	Momentary DPDT	PUSH TO EXIT	117.00
425U	AA (On/Off) DPDT	NONE	117.00

CODE COMPLIANT MANUAL RELEASE DEVICES LIST

PUSH TO EXIT UL 294 153.00

413MN 423M

Code Compliant Manual Releasing Devices and Sensors

423M and 413MN exit switches USED TOGETHER WITH the MD31D PIR sensor comply with manual releasing device and sensor device requirements for Access-Controlled Egress Doors per:

IBC International Code 1008.1.3.4 NFPA 101 7.2.1.62 BOCA National Building Code 1017.4.5 IFC International Code 1008.1.3.4 NFPA 1 15.5.3.2 SBCCI Standard Building Code 1012.7

Code Compliant Manual Release Device

Code Compliant Features: Fixed 30 second timer, re-triggerable; Failsafe - lock releases when power to switch is interrupted; Sign - PUSH TO EXIT; CSFM Listed;:

1¾"x1" Button, Green Illuminated Lens - Dull Stainless Steel Finish, Specify R for optional red lens Narrow Contact Sign

12/24VDC, 2 Amp Contact

413MNU Integrated Fixed 30 sec. Timer

MD-31DB

ւ(Մ	.)us
LISTI	ED

2" Button, Green Illuminated Lens - Dull Stainless Steel Finish, Specify R for optional red lens
1 Gang	Contact	Sign
423MU	Integrated Fixed 30 sec. Timer 12/24VDC, 2 Amp Contact	PUSH TO EXIT	UL 294	153.00

Code Compliant Egress Sensor

Code Compliant Features: PIR egress sensor with failsafe mode - lock releases when power to PIR sensor is interrupted. UL listed 294 Access Control System Units

Model	Color

MD-31DOW	White	PIR Egress Sensor	243.00
MD-31DB	Black	PIR Egress Sensor	243.00

Input: 12 or 24 VAC/DC @ 26mA max.

Contact: 2 SPDT Dry, 2 Amp @ 30VDC (38.1 H x 148.8 W x 38.1 D mm)

Operating Temp: -20° F to 120° F (-29° C to 49° C)

Dimensions: 1.5" H x 6.25" W x 1.5" D

RETROFIT BACK BOX

BB1D Single Gang 2.25" w x 3.75" h x 2.75" D 15.00 BB1D

400 Series EXIT SWITCHES continued CK Distributor Discount Code

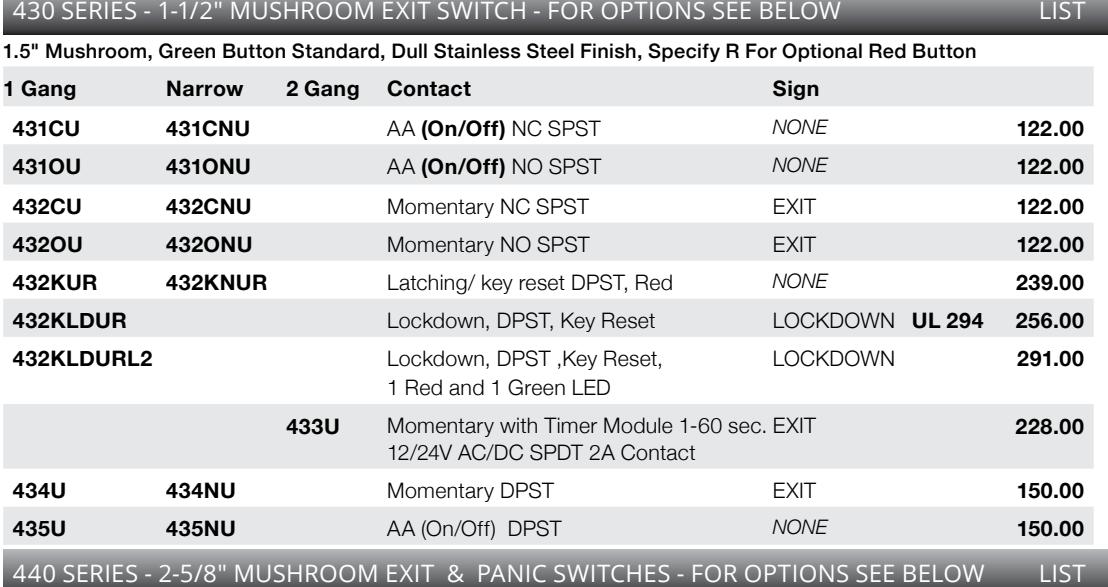

430 430N

441 - 444 446

			2-5/8" Mushroom, Red Button Standard, Dull Stainless Steel Finish, Specify G For Optional Green Button

1 Gang	2 Gang	Contact	Sign
	441U	AA (On/Off) DPST	NONE	211.00
	442U	Momentary DPST	EXIT	211.00
	443U	Momentary with Timer Module 1-60 sec. 12/24V AC/DC SPDT 2A Contact	EXIT	305.00
	444U	Momentary 2-DPST	EXIT	234.00
446U		Momentary DPST	EXIT	139.00

OPTIONS AND FINISHES FOR 410,420, 430, AND 440 SERIES Add to List

Options for 410, 420, 430, 440 Series

L1G	1 Green LED	23.00	LT	Tricolor LED - Red, Green, Amber	34.00
L1R	1 Red LED	23.00	E	Add Exit sign To AA Function Switch Only	13.00
L2	1 Red and 1 Green LED	34.00	B	No Exit sign (None) with Momentary Switch	N/C

Special Finish

450 / 460 / 470 Special finish is not available

Designate special finish suffix from below in lieu of U (stainless steel) in part number.

C 605 Bright Brass	D 606 Dull Brass	45.00
P 625 Bright Chrome	H 613 Oil Rubbed Bronze	45.00

463N

463 SERIES - VANDAL RESISTANT STAINLESS STEEL EXIT SWITCH LIST

Capacitive Stainless Steel Button - No moving parts - Integrated Time Delay - Red and Green Status Indicators

1 Gang	Narrow	2mm Stainless Steel - Security Screws - Plated Finish Not Available Contact	Sign
463U	463NU	Integrated 1-40 Sec Timer 12/24VDC,SPDT 1A Contact	PUSH TO EXIT	145.00

474 NO TOUCH SWITCH SERIES – WAVE-TO-OPEN SWITCHES LIST

474 474D

474 Touchless Switches use Active IR Sensor Technology. A simple wave in front of the 474 Touchless Switch activates the switch to control electric locks/

• Adjustable 2"-7" Activation Read Range

474 Touchless Switches use Active IR Sensor Technology. A simple wave in
front of the 474 Touchless Switch activates the switch to control electric locks/
strikes, magnetic locks, or automatic door operators for entry or egress.

• Dual LED, Illuminated Sensor for Status Indication

800	(9)
		)
П
	(36)

474MU

		Contact	Sign
474U	1 gang faceplate	SPDT	WAVE TO OPEN	82.00
474DU	2 gang faceplate	SPDT	WAVE TO OPEN	142.00
474MU		1 gang with manual override SPDT / Override Alt-Action SPDT	EXIT	218.00

Output: SPDT 3 Amp Dry Contact

55mA (active) @ 12/24VDC Faceplate: 20ga Stainless Steel

I nput: 25mA (standby);
