413MN & 423M PUSH SWITCH FIXED 30 SECOND TIME DELAY INSTALLATION INSTRUCTIONS

INSTALLATION INSTRUCTIONS

413MN & 423M PUSH SWITCH FIXED 30 SECOND TIME DELAY

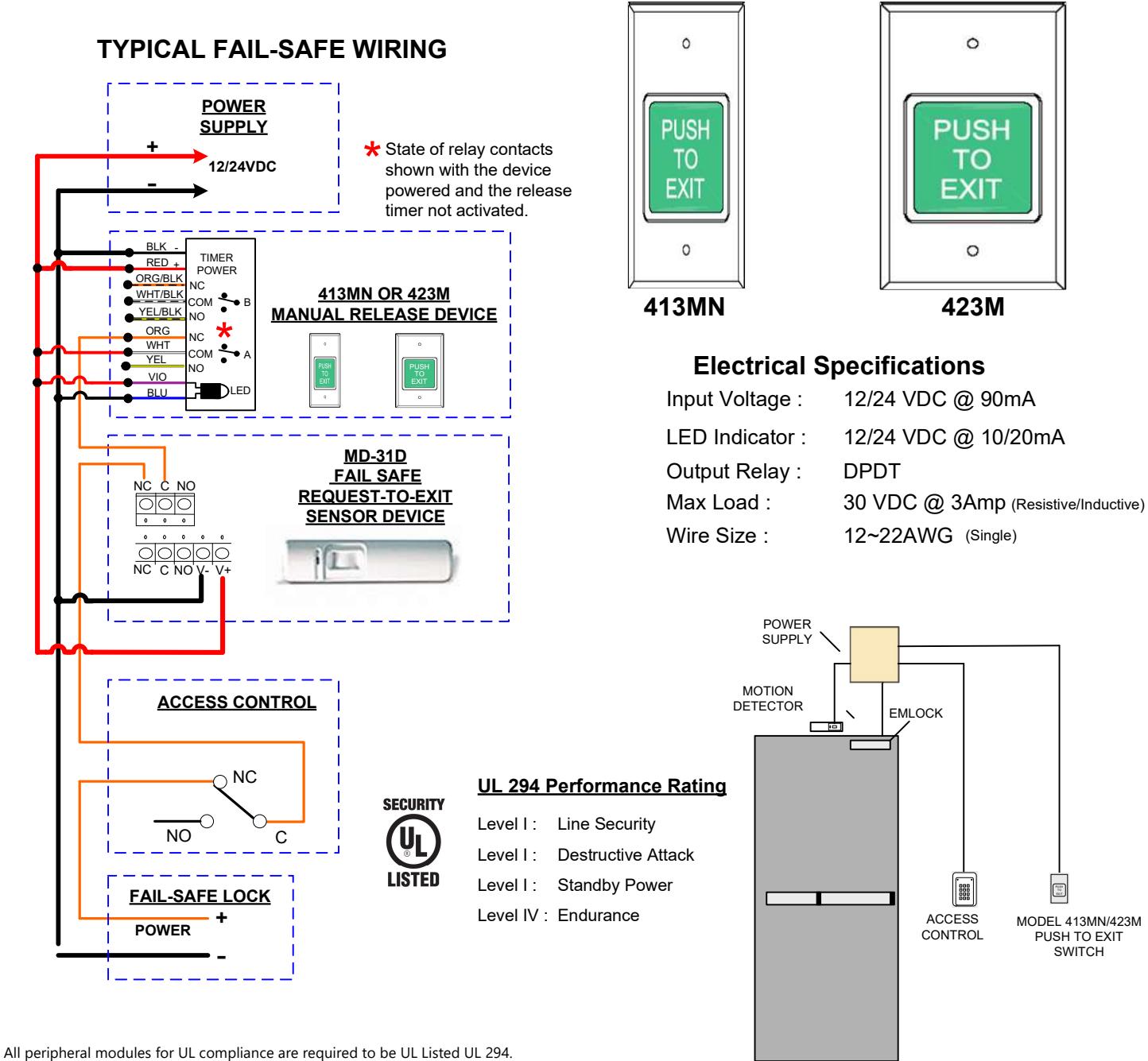

This push to exit button is specifically intended for installation on Access Controlled Egress doors as described in the BOCA code. A motion detector is the primary means of releasing a magnetic lock on the door. The push to exit button is intended, as a back up means of releasing the lock in the event there is a problem with the motion detector. When the button is pressed, the lock releases for 30-seconds. If pressed again during the 30-seconds lock release period, the unit will "Retrigger" starting a new 30-second lock release period.

To be used with a Class 2 power supply or voltage compatible UL 294 or UL 603 listed power supply

Compliance with ANSI/NFPA 70 National Electrical Code
