410 & 420 Series Exit Switches

The illuminated switch button is two inches square for easy activation and is visually conspicuous. The high impact resistant material stands up to abuse. The "PUSH to EXIT" sign complies with NFPA requirements. The 422A is designed for access and egress applications for the ADA applications.

PUSH TO EXIT

FEATURES

• Green or Red or ADA Blue Illuminated Switch Button
• Dull Stainless Steel Finish
• Push-to-Exit or Handicap Sign
• Green and Red Lens

SPECIFICATIONS

Switch Contact	SPDT/DPDT, 5 Amp @ 30VDC Resistive
Timer	DPDT 2 Amp @
Contacts	12/24VDC
Wire Leads	6", 20 Gauge
1 Gang	2 7/8" x 4 1/2" x 20 Ga.
Narrow	1 3/4" x 4 1/2" x 20 Ga.
Weight	0.4 lbs

410 NARROW SERIES 1-3/4" X 1" EXIT SWITCH

412N	Momentary SPDT		PUSH TO EXIT
413N	Integrated Electronic Timer, adj.	UL 294	PUSH TO EXIT

1-60 sec, 12/24VDC, 2A DPDT Contact

413PN Integrated Pneumatic Timer, adj.

1-180 Sec. 12/24VDC, DPST 3 Amp Contact, Screw Terminals

414N Momentary DPDT PUSH TO EXIT 415N AA (On/Off) DPDT NONE

NOTE: AA Models Are Not Illuminated

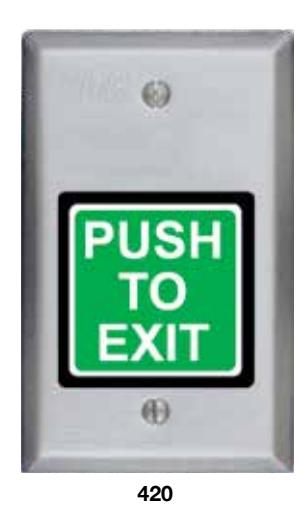

420 1 GANG SERIES 2" EXIT SWITCH

422	Momentary SPDT	PUSH TO EXIT

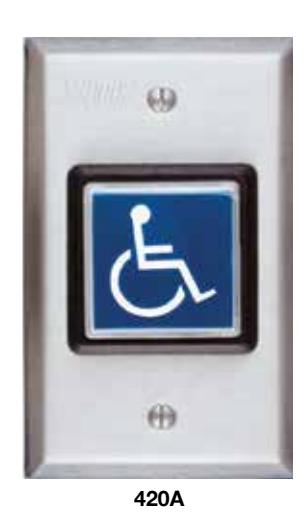

422A	Momentary SPDT, ADA Blue	🕹 SYMBOL

Integrated Electronic Timer, adj. UL 294 PUSH TO EXIT 1-60 sec, 12/24VDC, 2A DPDT

Contact 423P Integrated Pneumatic Timer, adj. PUSH TO EXIT

1-180 sec, 12/24VDC, DPST 3 Amp Contact, Screw Terminals 423A Integrated Electronic Timer, adj. 1-60 sec, 12/24VDC, 2A DPDT

Contact, ADA Blue Illuminated 424 Momentary DPDT PUSH TO EXIT 425 AA (On/Off) DPDT NONE

NOTE: AA Models Are Not Illuminated

1

PRODUCT SKU SAMPLE: 413N U LT

1| SPECIFY MODEL

410 NARROW SERIES 1-3/4" X 1" EXIT SWITCH

412N	Momentary SPDT	PUSH TO EXIT

413N Integrated Electronic Timer, adj. 1-60 sec, 12/24VDC, 2A DPDT Contact, UL 294 Listed PUSH TO EXIT

413PN Integrated Pneumatic Timer, adj. 1-180 sec, 12/24VDC, DPST 3 Amp Contact, Screw PUSH TO EXIT

Terminals

414N Momentary DPDT PUSH TO EXIT

415N AA (On/Off) DPDT NONE

NOTE: AA Models Are Not Illuminated

420 1 GANG SERIES 2" EXIT SWITCH

422	Momentary SPDT	PUSH TO EXIT

422A Momentary SPDT, ADA Blue SYMBOL

423 Integrated Electronic Timer, adj. 1-60 sec, 12/24VDC, 2A DPDT Contact, UL 294 Listed PUSH TO EXIT

423P Integrated Pneumatic Timer, adj. 1-180 sec, 12/24VDC, DPST 3 Amp Contact, Screw PUSH TO EXIT

Terminals

SYMBOL

423A Integrated Electronic Timer, adj. 1-60 sec, 12/24VDC, 2A DPDT Contact, ADA Blue

Illuminated

424 Momentary DPDT PUSH TO EXIT

425 AA (On/Off) DPDT NONE

NOTE: AA Models Are Not Illuminated

2| SPECIFY FINISHES

U 630 Stainless Steel - STANDARD

C 605 Bright Brass D 606 Dull Brass H 613 Oil Rubbed Bronze P 625 Bright Chrome

3| SPECIFY LED OPTIONS

L1G 1 Green LED LT Tri-color LED - Red, Green,

Amber

L1R 1 Red LED L2 1 Red,1 Green LED
