413MN and 423M Exit Switches Code Compliant Manual Release

Code Compliant Manual Releasing Devices and Sensors 423M and 413MN exit switches used together with the MD31D PIR sensor comply with manual releasing device and sensor device requirements for Access-Controlled Egress Doors per the following codes:

• IBC International Code 1008.1.3.4
• IFC International Fire Code 1008.1.3.4
• NFPA 101 Life Safety Code 7.2.1.6.2
• NFPA 1.15.5.3.2
• BOCA National Building Code 1017.4.5
• SBCCI Standard Building Code 1012.7
• UL 294 LISTED

FEATURES

• Fixed 30 Sec. Timer, Re-Triggerable
• Failsafe-Lock Releases when Power to Switch is Interrupted
• Green Illuminated Switch Button
• Push-to-Exit Sign
• CSFM Listed

SPECIFICATIONS

Timer Contacts	DPDT 2 Amp @ 12/24VDC
Wire Leads	6", 20 Gauge
1 Gang	2 7/8" x 4 1/2" x 20 Ga.
Narrow	1 3/4" x 4 1/2" x 20 Ga.
Weight	0.4 lbs

PRODUCT SKU SAMPLE: 413MN U LT

1| SPECIFY MODEL

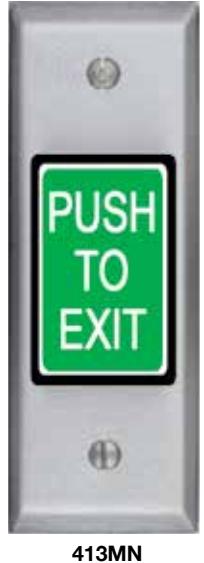

Narrow, Integrated Electronic Timer, 413MN

Fixed 30 Sec. Timer, 13/4"x1" Green

TO EXIT Illuminated Button

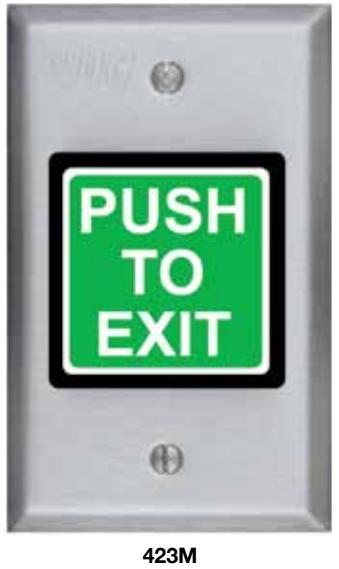

423M 1 Gang, Integrated Electronic Timer, Fixed 30 Sec. Timer, 2" Green

Illuminated Button

PUSH TO EXIT

PUSH

21 SPECIFY FINISHES

• U 630 Stainless Steel STANDARD
• C 605 Bright Brass
• D 606 Dull Brass
• H 613 Oil Rubbed Bronze P 625 Bright Chrome

3| SPECIFY LED OPTIONS

L1G 1 Green LED

LT Tri-color LED - Red, Green, Amber

L1R 1 Red LED L2 1 Red,1 Green LED
