Overhead Holders & Stops

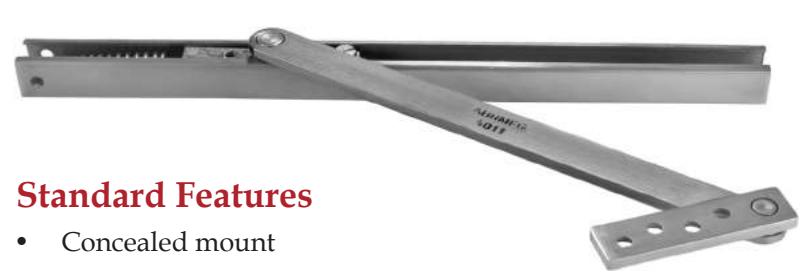

4000RA Series Concealed Mount, Medium Duty, Adjustable

• Medium duty, adjustable
• Internal Channel Sliding Cam & Shock Block allows for field adj. degree of open
• Stop, hold-open and friction functions available
• Single or double acting doors
• Non-handed
• For interior use on moderate traffic and medium weight doors
• Standard installation from 85° to 110° of opening (5° increments)
• Heavy shock absorbing spring provides 3° to 5° cushion before dead-stop
• 1-3 /8" minimum door thickness
• UL Listed as Miscellaneous Fire Door Accessories for use on wood fire doors rated up to 90 minutes and metal fire doors rated up to 3 hours (stop function only)
• Average weight per unit = 2 lbs.

Door Frame Opening		Model Number
Butt Hinges or 3/4" Offset Pivots	Center Hung	Hold Open	Stop	Friction
18" - 24" *	-	4011RA*	4021RA*	4031RA*
24-1/16" - 30"	27" - 32" **	4012RA	4022RA	4032RA
30-1/16" - 36"	32-1/16" - 38-1/2"	4013RA	4023RA	4033RA
36-1/16" - 42"	38-9/16" - 45"	4014RA	4024RA	4034RA
42-1/16" - 48"	40-1/16" - 48"	4015RA	4025RA	4035RA
ANSI Code		C04511	C04541	C04531

^* Butt Hinge mounting only, for Center Hung contact ABH

Options Available (see page B-5 for details)

• • SEC Security fasteners
• • LL For lead-lined door applications
• • N- All stainless steel (non-ferrous) components for wet environments to prevent corrosion
• • T Threaded pivot screw and nylon washer to replace jamb bracket
• • Special Contact ABH if the dimensions, hardware or specifications differ from what is shown on the template or if additinal hardware is being used at the top of the door. A custom application and/or unit may be required.
• If using a closer, please go to our website and reference "ABH Overhead Holder & Stop Compatibility Chart" to determine possible conflict.

Material

• Stainless steel is the standard base material for arm, channel, and jamb bracket for all finishes

Specify When Ordering

• • Model Number
• • Finish
• • Option(s), if applicable

^{** 90°} max. opening for Center Hung only.
