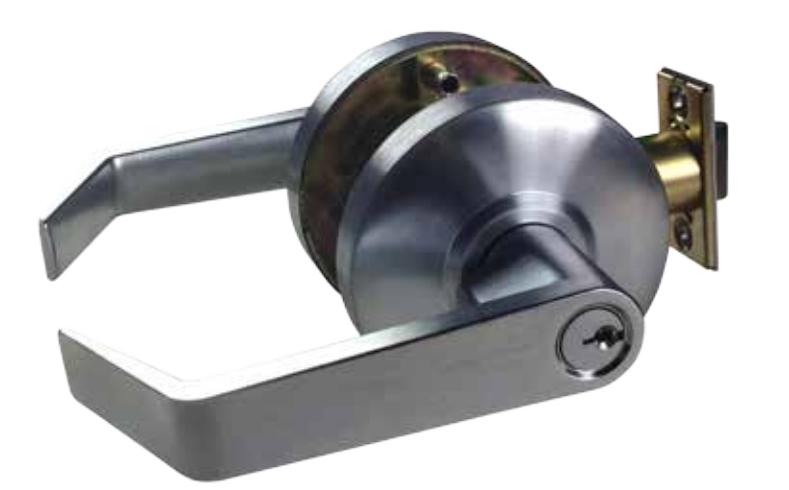

4000L SERIES

CLUTCHED LOCKSETS

FEATURES

  • Heavy duty lever spring return rose assembly
  • Bidirectional lever operation, non-handed
  • Convertible posts
  • Available with Free Wheeling Mechanism
  • Solid brass latch bolt
  • Solid brass Schlage c pin keyway cylinder
  • Meets Fire Code (California State Reference Code)
  • UL and CUL Listed
  • Five year warranty

Grade 2 Cylindrical Locks

IDC 4000L locksets meet ADA requirements, medium duty key-in-lever lockset designed to exceed the requirements of ANSI A156.2 Series 4000 and Grade 2.

SPECIFICATION
Application For offices, schools, hospitals, apartments, hotels, motels and other public buildings
For Doors 1 3 / 8 " to 1 3 / 4 " (35mm to 45mm)
Backset 2 3 / 8 " (60mm) or 2 3 / 4 " (70mm) standard
Front Brass, Bronze: 2^1 l_4^{"} \times 1^{"} standard. 2^1 l_4^{"} \times 1^1 l_8^{"} optional Adjustable for Flat or Beveled doors 1^1 l_8^{"} in 2^{"}
Strike ST1 ANSI 1-1/4" x 4-7/8" (Standard)
Roses Brass or Bronze
Hand Universal, non-handed
Latch bolt Brass. 1 / 2 " Latch bolt standard. Stainless steel, 1 / 2 "Latch bolt optional
Keys Two Brass
Cylinder Brass Schlage C pin keyway standard
Weiser, Arrow. Lockwood C 4. Kwikset optional
Masterkeying Can be masterkeyed or grand masterkeyed. Construction key system available
Free Wheeling Mechanism Free Wheeling available on all keyed locks and Privacy function on request
Interchangable Core Interchangeable core will accept compatible 6 or 7 pin cores with BEST or SARGENT

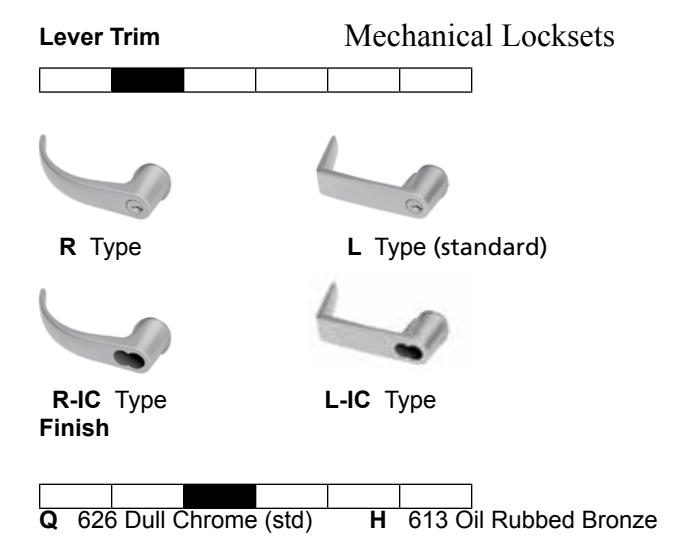

Finishes (US Code) 626 (US26D) Satin Chrome and 613 (US10B) Oil Rubbed Bronze
Split Finishes Outside finish specified first. Front & Strike finished to match inside trim unless otherwise specified
UL/CUL Listed for use on fire doors (3 Hour Rated)

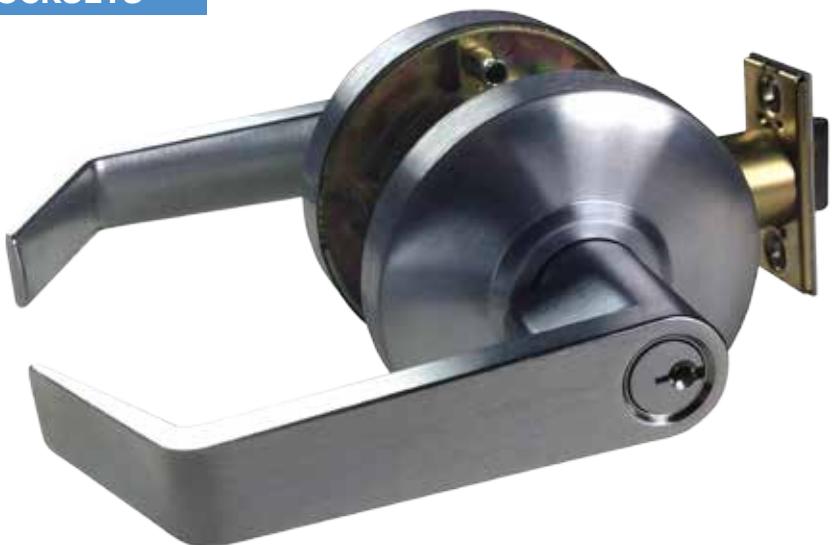

4000L SERIES GRADE 2 CYLINDRICAL LOCKS

CLUTCHED LOCKSETS

FUNCTION IDC ANSI DESCRIPTION
10 F75 Passage or Closet Latch - Latch bolt operated by lever, from either side at all times
40 F76 Privacy, Bedroom or Bath Lock – Latch bolt operated by lever from either side. Outside lever
is locked by push button unlocked by emergency release outside, operating inside lever or
closing door.
53 F82 Entry Lock - Dead locking latch bolt operated by lever from either side except when outside
lever is locked by push or turn button. When outside lever is locked, operating key in outside
lever or operating inside lever unlocks push button and retracts latch bolt. Closing door does
not release push button.
70 F84 Classroom Lock - Dead locking latch bolt operated by lever from either side except when
outside lever is locked from outside by key. When outside lever is locked latch bolt is
operated by inside lever.
80 F86 Storeroom or Closet Lock – Dead locking latch bolt operated by key in outside lever, or by
operating inside lever. Outside lever is always inoperable.
25 F111 Exit or Communicating Passage Lock – Dead locking latch bolt operated by lever one side
only at all times. Non removable blank trim or no trim outside.
170 Dummy Trim 1 Side - Used as door pull or as matching inactive trim

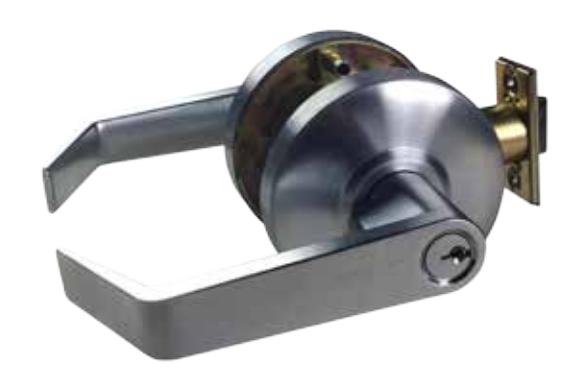

GRADE 2 CYLINDRICAL LOCKS

4000L SERIES

CLUTCHED LOCKSETS

IDC Function

  • 10 Passage
  • 40 Privacy, Bedroom or Bath Lock
  • 53 Entrance Lock
  • 70 Classroom Lock
  • 80 Storeroom
  • 25 Communicating Passage Lock
  • 170 Dummy Trim, 1 Side, Eclipse

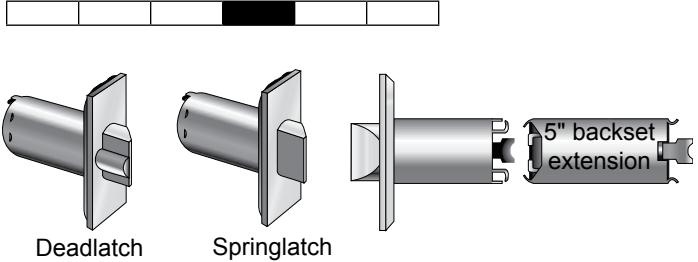

Latch bolt

  • B1 2-3/4" dead latch (standard)
  • B2 2-3/8" dead latch
  • B3 2-3/4" spring latch, passage (standard)
  • B4 2-3/8" spring latch, passage
  • B5 2-3/4" spring latch, privacy (standard)
  • B6 2-3/8" spring latch, privacy
  • BE 5" backset extension, for use with 2-3/4" latch only

International Door Closers, Inc.

COPYRIGHT 2018 INTERNATIONAL DOOR CLOSERS, INC www.intldoorclosers.com

How to Specify

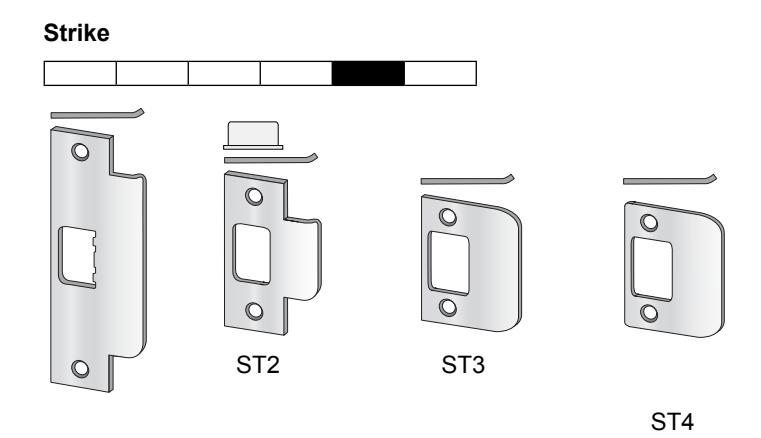

ST1 ANSI 1-1/4" x 4-7/8" (Standard)

ST2 T-Strike with dust box, ANSI 1-1/8" x 2-3/4"

ST3 Full lip strike, 1-5/8" x 2-1/4"

ST4 Full lip strike with round corners, 1-5/8" x 2-1/4"

Cylinder or I-Cores

IDC Conventional Cylinders (Schlage 'C' Keyway Standard) For RIC or LIC Type

6PKA 6 PIN Keyed alike

6PKD 6 PIN Keyed different (standard)

IDC Interchangeable Core (Best 'A' Keyway Standard) For RIC or LIC Type

IC6P-KA 6 pin I-Core, small format, keyed alike

IC6P-KD 6 pin I-Core, small format, keyed different

IC7P-KD 7 pin I-Core, small format, keyed different

IC7P-KA 7 pin I-Core, small format, keyed alike
