4000HC HOLD CLOSED SERIES - STOP ONLY

CONCEALED MOUNT, MEDIUM DUTY

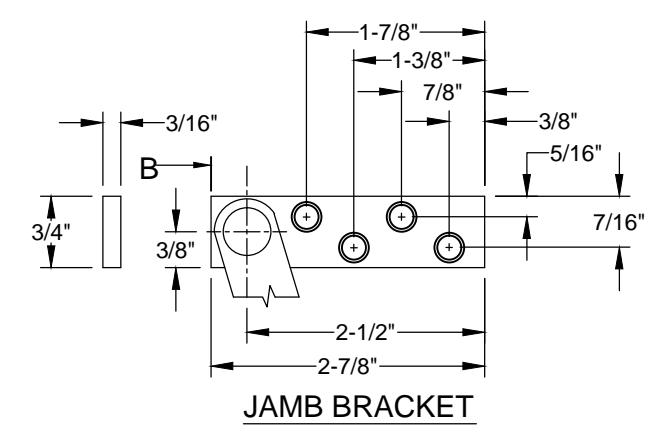

SCREW DETAIL
QTY WOOD METAL
JAMB 4 #10 x 1-1/2 FLAT HEAD
WOOD SCREW 		10-32 x 1/2 FLAT HEAD
MACHINE SCREW, UNDER CUT
DOOR 2 #10 x 1-3/4 ROUND HEAD
WOOD SCREW 		10-32 x 1-1/2 TRUSS HEAD
MACHINE SCREW

NOTES:

  • 1. REVERSIBLE/ NON-HANDED

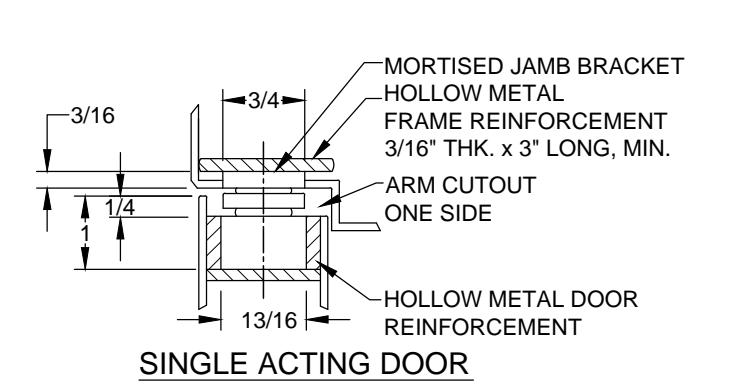

  • 2. FOR SINGLE ACTING DOOR
  • 3. ALWAYS REQUEST LATEST TEMPLATE/ DRAWINGS FOR NEW INSTALLATIONS
  • 4. ALL DRILLING & TAPPING TO BE DONE IN FIELD.
  • 5. DO NOT SCALE DRAWING
  • 6. ALL DIMENSIONS ARE IN INCHES

4000HC-1-00.DWG

www.abhmfg.com

E-mail: abhinfo@abhmfg.com Architectural Builders Hardware Mfg., Inc. 1222 Ardmore Ave., Itasca, IL 60143 630.875.9900; FAX 800.9FAXABH (932.9224)

© 2019 ABH Mfg., Inc. printed in USA

PAGE 1 OF 2 ISSUED 10-16-19

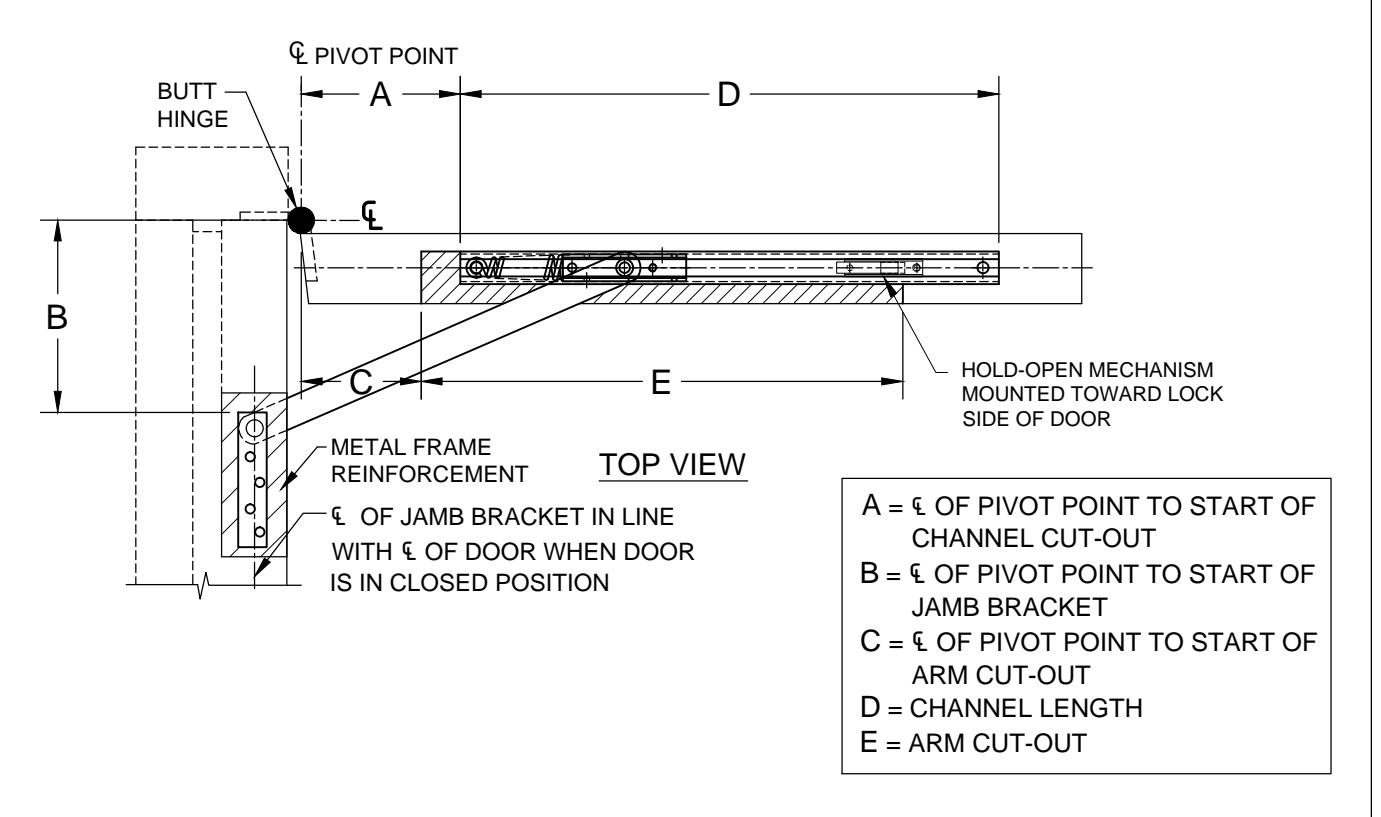

4000HC HOLD CLOSED SERIES - STOP ONLY

CONCEALED MOUNT

ALL DIMENSIONS ARE IN INCHES.

BUTT HINGE ONLY

FOR OTHER THEN 90° SWING, CUSTOM UNIT REQUIRED.

DEGRE 85° H.O. 90° H.O.
MODEL NO. DOOR
OPENING 		Α В С Е Α В С Е Α В С Е D
4021HC 18 to 23-15/16 2-7/8 3-3/16 0 12-3/4 _ 12
4022HC 24 to 29-15/16 _ 5-15/16 5 4-1/2 13-1/2 _ 14-1/4
4023HC 30 to 35-15/16 _ 8-3/8 5-3/4 5 16-1/4 _ _ 15-1/16
4024HC 36 to 48 9-7/8 7-1/4 7 17-3/4 _ _ 17
DEGREE 100° H.O. 105° H.O. 110° H.O.
MODEL NO. DOOR
OPENING 		Α В С Е Α В С Е Α В С Е D
4021HC 18 to 23-15/16 _ _
4022HC 24 to 29-15/16 — — _ _ - — _ _
4023HC 30 to 35-15/16 _ _ _ _ _ _
4024HC 36 to 48 _ _ _ _ _ _ _

® www.abhmfg.com E-mail: abhinfo@abhmfg.com Architectural Builders Hardware Mfg., Inc. 630.875.9900; FAX 800.9FAXABH (932.9224)

4000HC-2-00.DWG

4000HC PAGE 2 OF 2
